Description
These are Bored Through 8 bolt holes rotatable flanges, 4.50 inch CF, CFF ConFlat (CF).
These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and a knife-edge flange to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be to 450 °C for bake-out.
These vacuum fittings are made of resistant stainless steel.
These single-sided rotatable ultrahigh vacuum (UHV) CF flanges feature tapped or thru bolt holes and are joined to non-rotatable CF flanges.
Rotatable CF flanges simplify alignment with the bolt holes of other system components and give infinitely rotatable joints.
Copper gaskets make CF flanges self-centering and the standard leak grooves simplify troubleshooting and gasket removal.
Details
Rotatable single-sided CF flange
Compatible with standard inch tubing diameters
Tapped or thru flange bolt holes
CF 4.50-Inch Flanges & CF63 ConnectionsTapped 8 bolt Holes

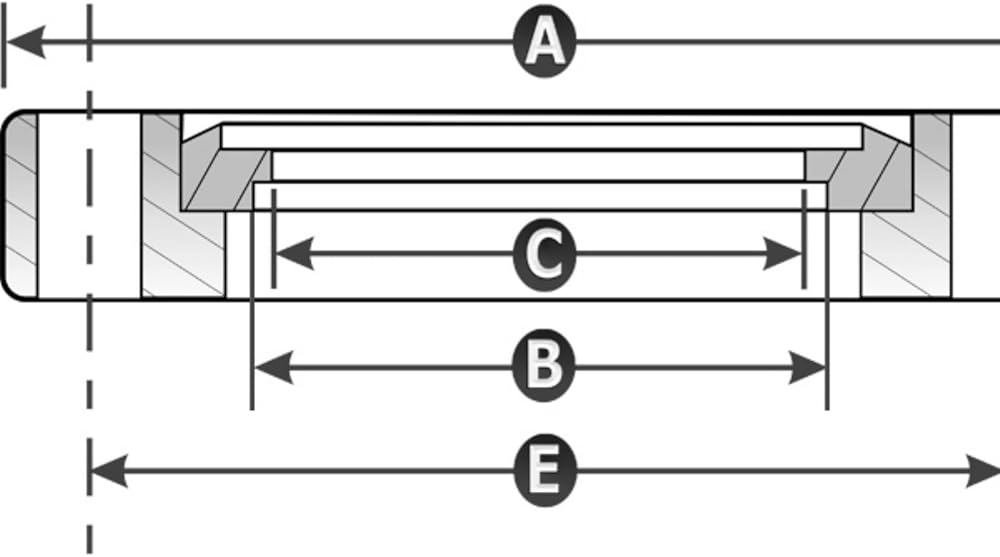

Common Dimensions
A) Outer Diameter = 4.5" (113.50mm)
(B) = 2.7/8"(72.39mm)
(C) = 2 7/16"(62mm)
(D) = 3/4"(19.10mm)
(E) = 3 5/8"(92.15mm)
Package :
1*CF63 Rotatable Bored Conflat Flange
