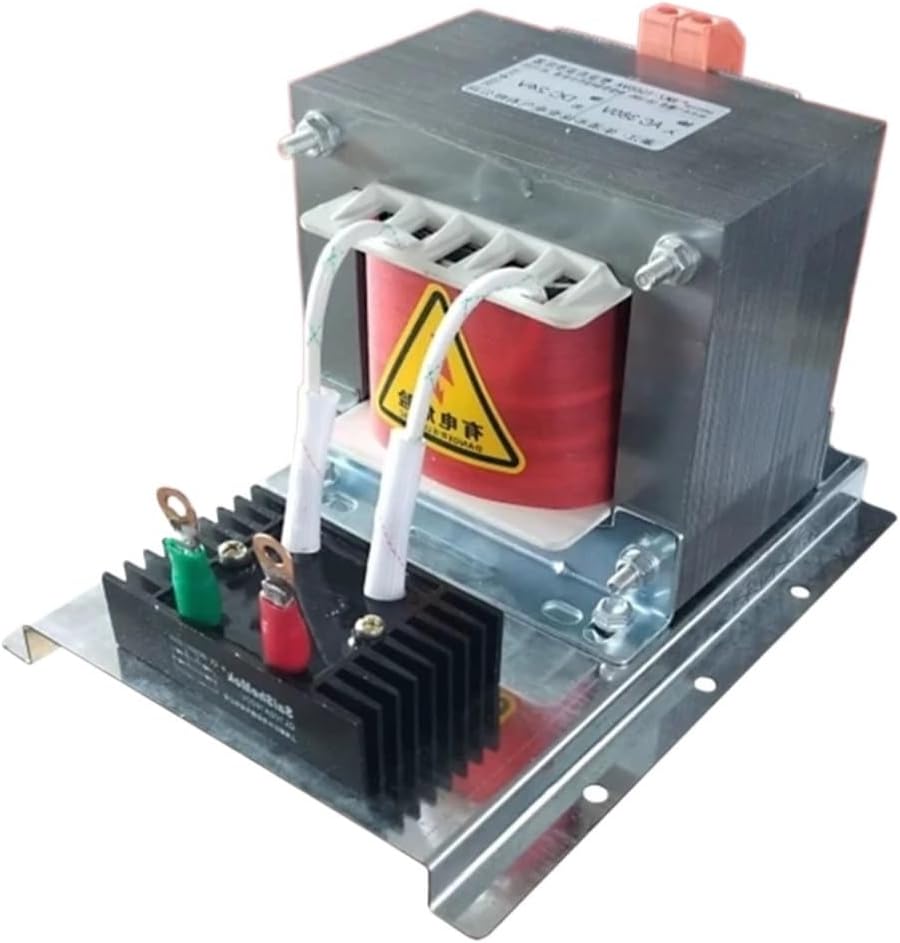

Single-phase dry-type rectifier transformer
Number of phases: single-phase
Input voltage: AC 380V 220V
Output voltage: DC12V 24V 36V 48V 60V 72V 110V
Voltage accuracy: ± 1%
Waveform distortion: No distortion (compared to the input waveform)
Voltage variation rate: 1.5
Insulation grade: F grade, high temperature resistance of 150 degrees
Insulation resistance: 150M
Work efficiency: Inductive (isolated) 99%
Resistance strength: 3000VAC/1min
Overload capacity: allows exceeding 1.2 times the rated load
Design lifespan: 20 years
Noise: 35db (within meters)
Cooling method: dry air cooling
Temperature rise: 60
Dimensions: 102 * 98 * 106mm (length * width * height)
Installation hole spacing: 84 * 78mm
Net weight: 3.5KG
