Description

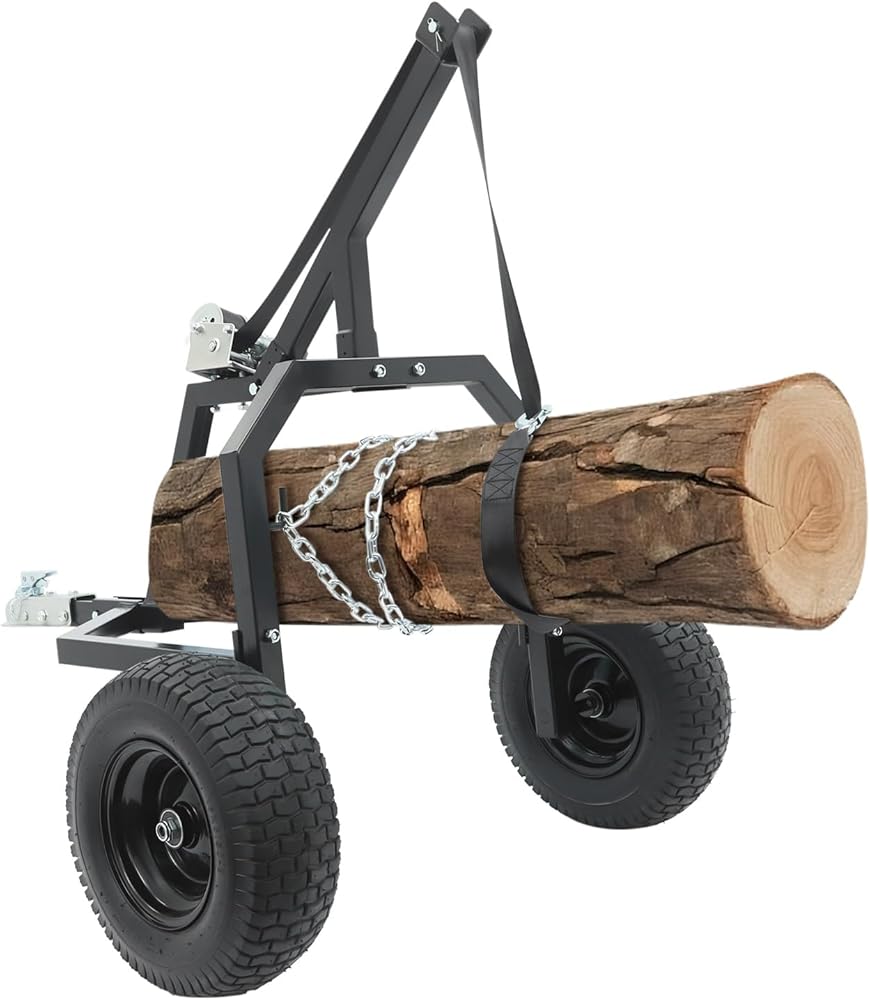

This log skidding arch is an essential tool in the logging industry, playing a crucial role in efficiently moving logs from forests to processing sites or storage areas. It simplifies the labor-intensive task of log transportation, making the process more efficient and less physically demanding, enhancing productivity and ease of log handling.

Key Features
Excellent Reliability: Equipped with two 16-inch inflatable tires that have textured surfaces, it can navigate through uneven terrain, grassy areas, and muddy roads with ease.
Easy Operation: The manual winch streamlines the loading process, as its polyester webbing rope allows for easy hoisting of logs onto the arch.

Application
It is suitable for ATVs or other vehicles with a ball-type trailer hitch. It can be used to move logs with a diameter of less than 24 inches and a weight of less than 1600 lbs.

Specification
Material: Iron, Steel, Rubber, Polyester
Process: Welding, Spray Painting
Assembly Required: Yes
Mounting Type: Ball-Type Trailer Hitch Mounted
Trailer Coupler Size: 5.08cm/2in
Winch Operation Mode: Manual
Tire Type: 2* Pneumatic Tires
Tire Diameter: ≤40.64cm/16in
Suitable Max. Log Diameter: 61cm/24in
Load-bearing Capacity: 725.75kg/1600 lbs
Polyester Webbing Strap Size(W*L): 47mm*6m/1.85in*19.69ft
Iron Chain Size(D*L): 6mm*2m/0.24in*6.56ft
Distance from Ground to the Winch: 76.3cm/30in
Product Size: 130.8*94.6*121.1cm/51.5*37.24*47.68in
Package Size: 123*62*16cm/48.43*24.41*6.3in
Gross Weight: 33.85kg/74.63 lbs

Notes
Before towing, please make sure all tension on the winch strap is released and the load is fully supported by the chain and the frame. Towing without releasing the tension may cause damage or injury.
Before use, please ensure the coupler is adjusted according to the requirements. The coupler should remain stationary when locked, and the coupler should disengage smoothly when unlocked. Please do not overtighten.
