Applications:
Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC
Electrical Characteristics:
Rated voltage 1000VDC
Amps 1A,3A,5A,10A,15A,20A,25A,30A
Rated braking capacity 33kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms

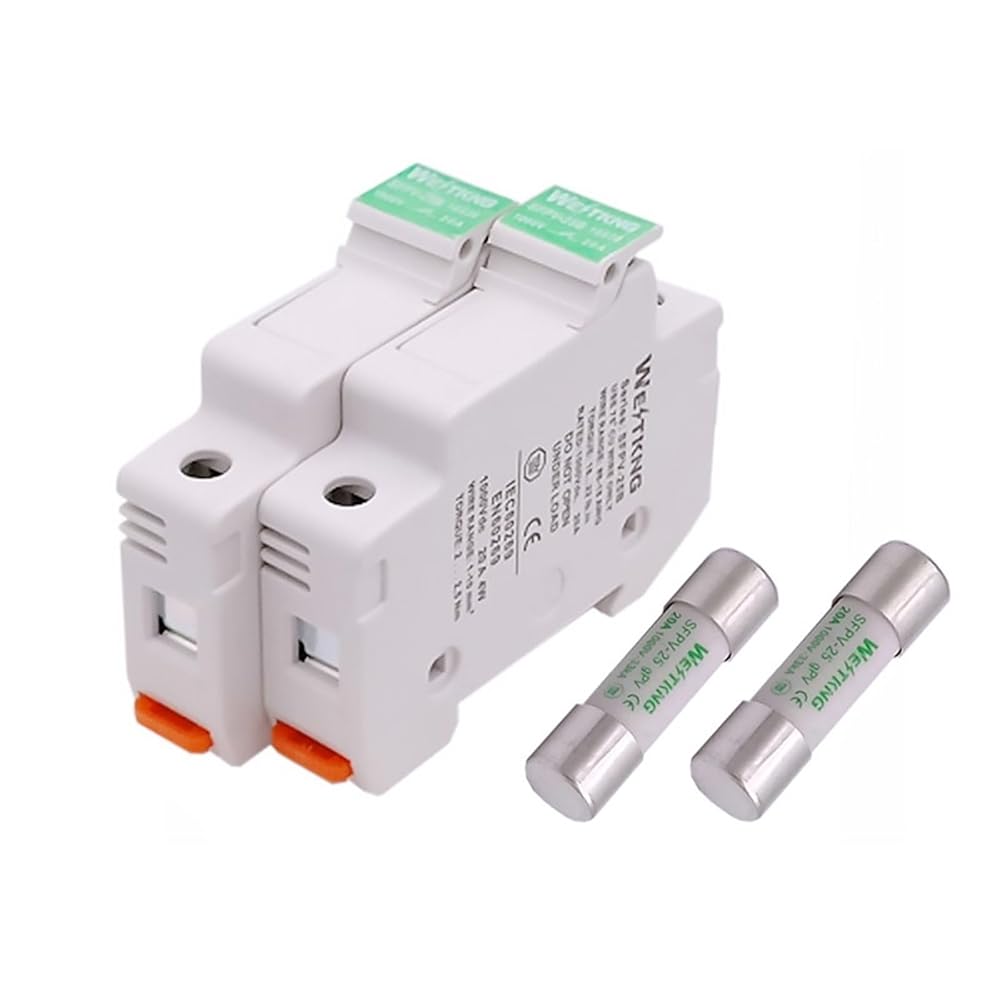

Fuse Holder for PV String Fuses:
This holder is suitable for PV fuses rated 1A, 3A,5A,10A, 15A, 20A, 25A and 30A. The maximum voltage is 1000V. The fuse holder can be combined with the following PV String Fuses which is essential protection for solar panels. - 1000V DC-20B - Modular 45mm cut out - 1 module X pole - Mounting 35mm DIN rail - High temperature resistant plastics - Elevated insulation characteristics.
