1. [HIGH-QUALITY OPTICAL SPLITTER] The 1x8 PLC fiber optic splitter is perfect for CATV data networks and optical communication systems
2. [WIDE COMPATIBILITY] Suitable for various FTTP and FTTB applications with low insertion loss
3. [VERSATILE USE] Meets transmission needs of different wavelengths with stability and low reflection
4. [COMPACT STRUCTURE] Easily fits into existing transfer boxes for convenient installation
5. [PREMIUM SPECIFICATIONS] with 10.2dB insertion loss and 50dB return loss

Specification:
Features:
1. This splitter is the 1 x 8 optical splitter with the most FTTP engineering with
2. Applicable to CATV data network, optical communication system, optical fiber test equipment, FTTH and FTTB
3. Can meet the transmission needs of different wavelengths, low insertion loss
4. Good environmental stability, low polarization-dependent loss and low back reflection
5. Compact structure, can install various existing transfer boxes

Specification:
Condition: 100%
Item Type: Fiber Optic Splitter
Insertion Loss: 10.2db
Return Loss: 50db
Interface: SC
Product number 1x2 1x4 1x8 1x16 1x32 1x64 2x2 2x4 2x8 2x16 2x32
Working wave nm 1260-1650nm
Insertion consumption: dB() class A 3.6 7.2 10.2 13.5 16.2 20.5 0.8 7.5 10.7 14 17
Insertion consumption: dB() class B 4 7.4 10.5 13.7 16.7 21 4.2 7.8 11 14.2 17.5
Uniformity: dB 0.4 0.6 0.8 1 1.2 1.8 0.6 1 1.2 1.5 1.8
Directionality: dB 55
Reflection loss: dB 55
Polarization dependent loss: dB 0.2 0.2 0.3 0.3 0.3 0.4 0.2 0.2 0.3 0.3 0.3
Wave correlation loss dB 0.5
Degree dependent loss dB 0.5
Light model:
: -40-85

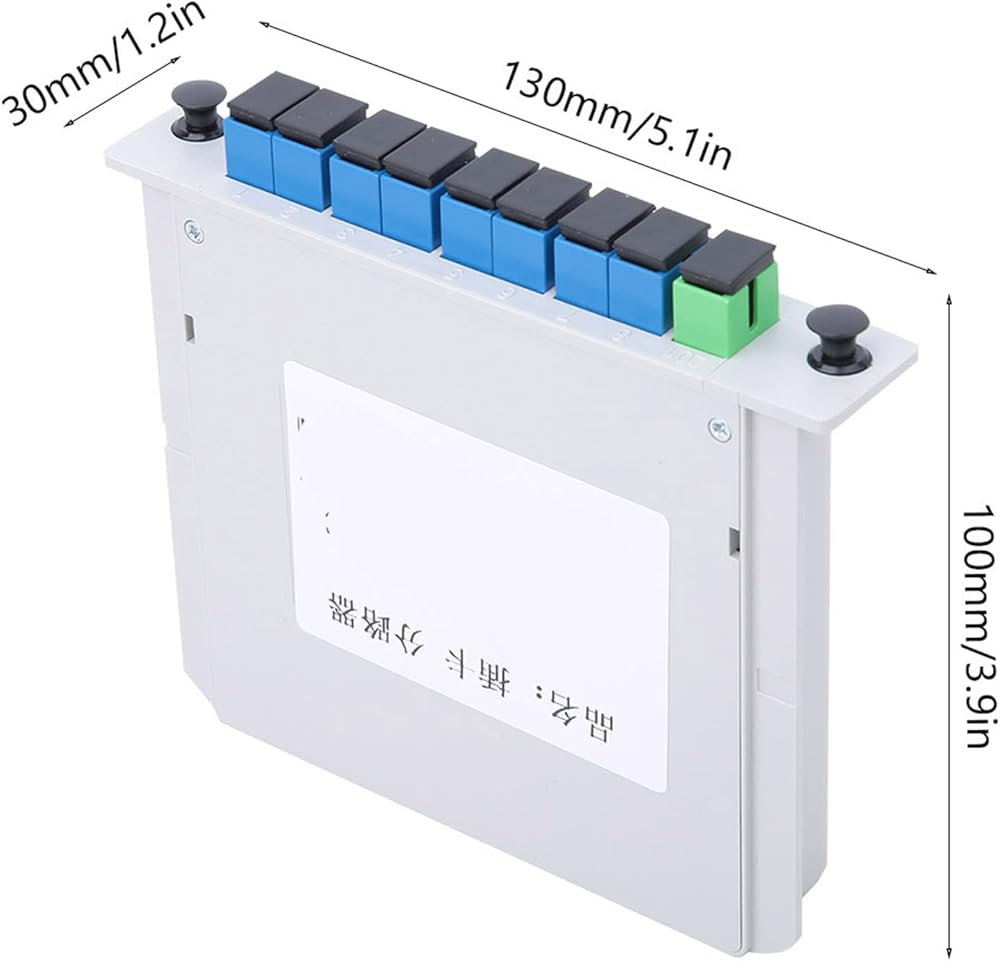

Storage: -40-85 Size: Approx. 130 x 100 x 30mm / 5.1 x 3.9 x 1.2in
Package List:
1 x Fiber Optic Splitter
