Miniature Cylindrical Connectors

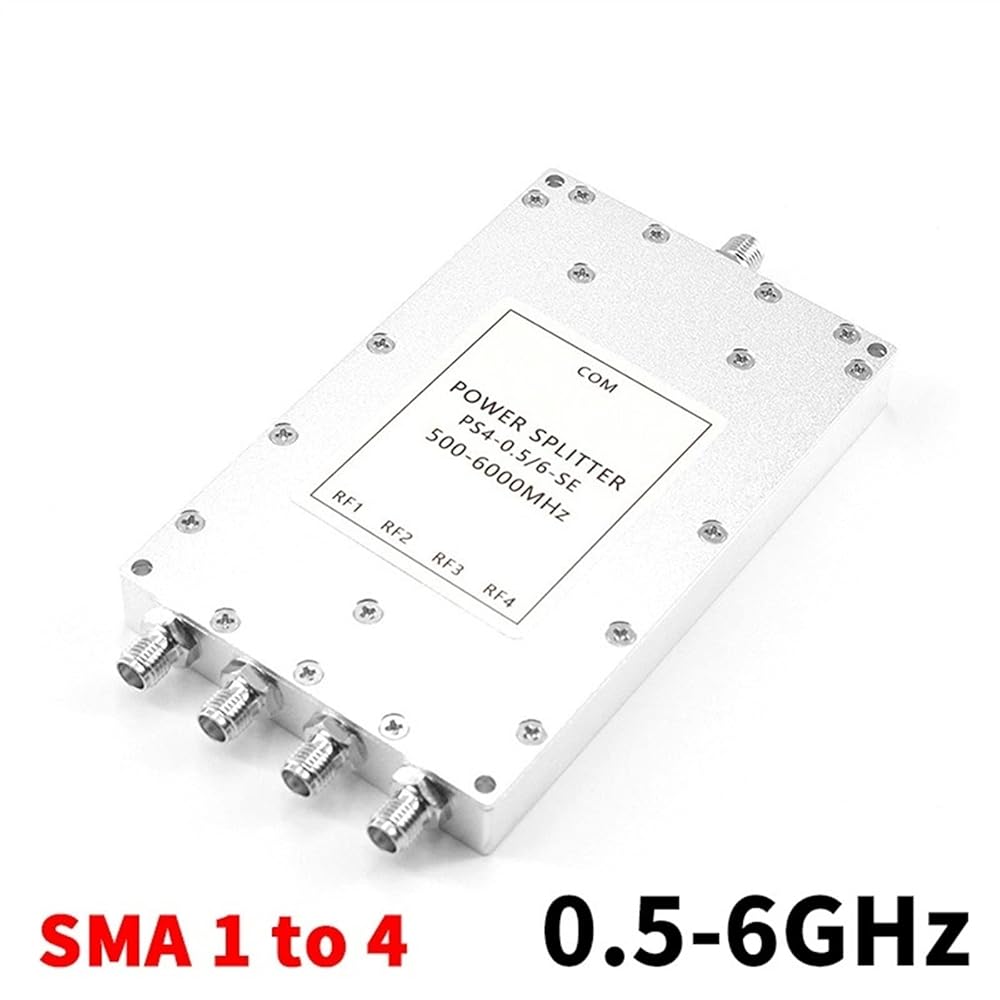

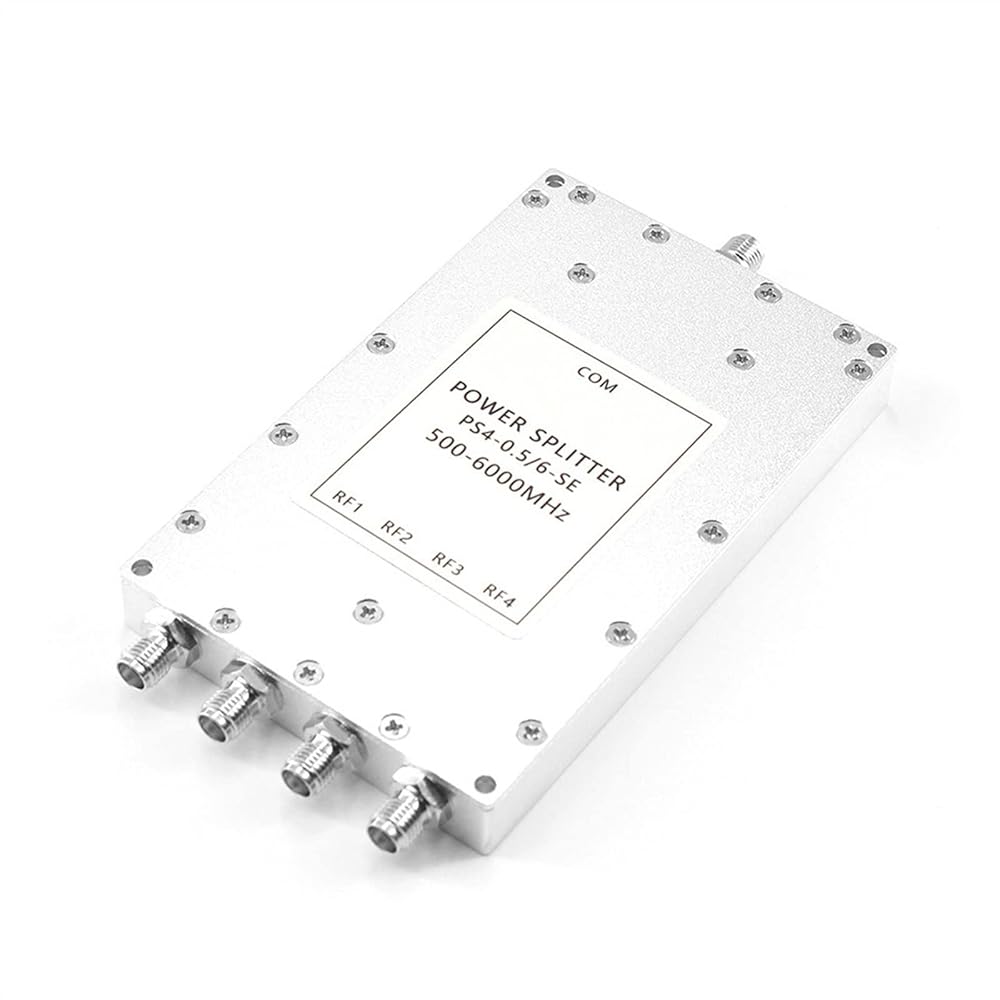

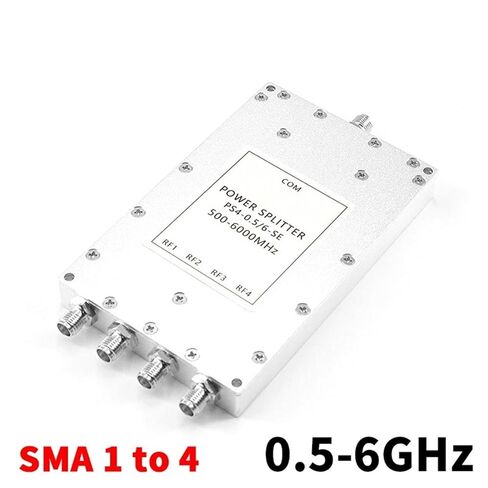

SMA One-point Quad Coaxial Microstrip Power Splitter 0.5/6G Signal Test Power Distribution Combiner 1Pcs
Frequency range: 500~6000MHz
Insertion loss: 1.8dB (excluding theoretical loss 30dB)
Input standing wave: Typ.1.16 / Max.1.25
Output standing wave: Typ.1.12 / Max.1.20
Isolation: Typ.28dB / Min.20dB
Amplitude balance: 0.3dB
Phase balance: ±4°
Impedance: 50 Ohms
Port Connector: Sma-female
Withstand power: 30W for splitter; 2W for combiner
Working temperature: -35 ~ +75

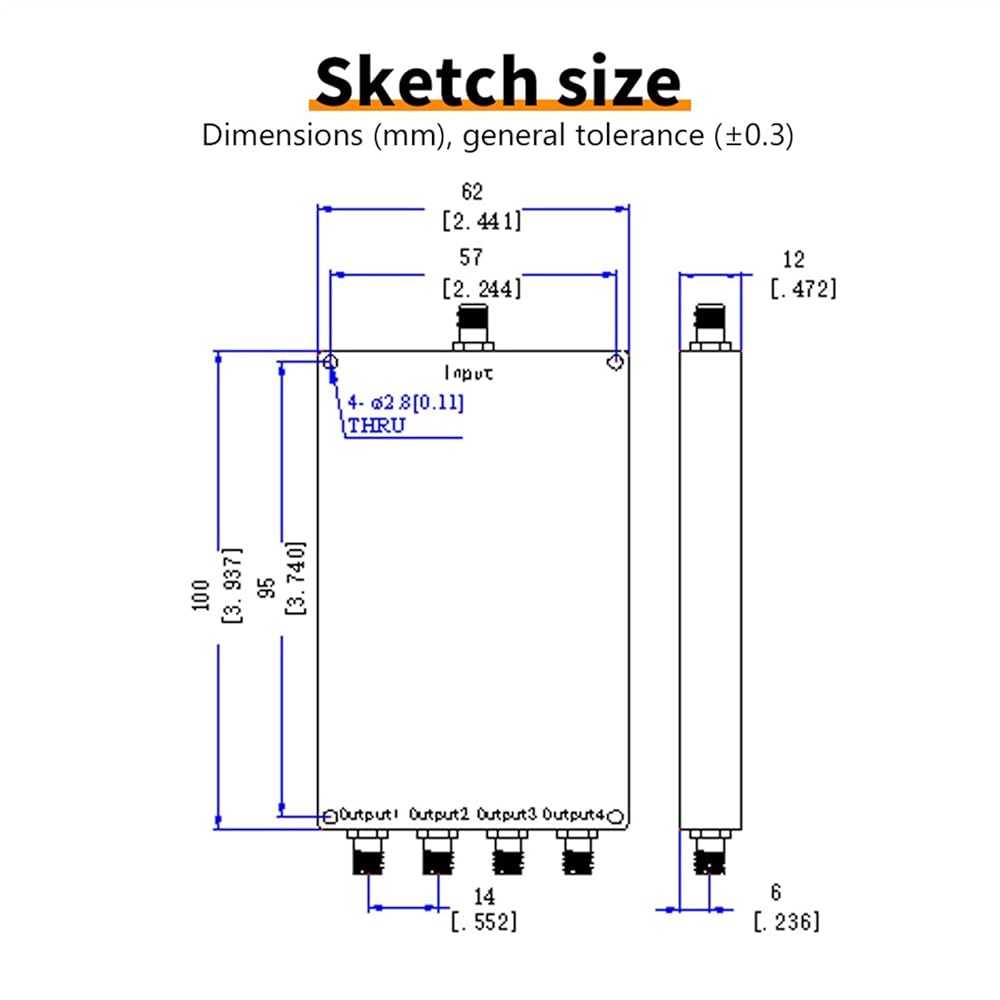

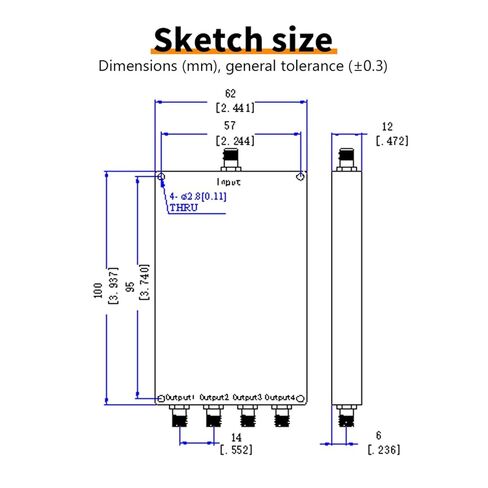

Dimensions: 100°62*12(mm)
weight:185g
