Ensure the connector's size, specifications and interface type are fully compatible with the target products. Conduct pre-assembly tests to avoid mismatches that may cause loose connections or functional failures.
Durability Assurance
Select high-quality raw materials that can resist wear, corrosion and temperature variations. Perform strict durability tests according to industry standards to guarantee stable performance during long-term use.
Safety Compliance
Comply with relevant regional safety regulations and product standards. Ensure no potential safety hazards such as electric leakage, overheating or structural breakage, which may lead to product damage or user risks.
Easy Installation
Adopt user-friendly structural design to simplify the installation process. Provide clear, easy-to-understand operation instructions, reducing the difficulty of assembly for end-users without requiring professional tools.
Consistent Performance
Maintain stable functional performance under normal usage conditions. Avoid signal interference, power loss or connection disconnection issues, and ensure the connector can reliably fulfill its transmission or connection functions.
وصف
Outside Snap Ring (OSR) Style
Outside Snap Ring (OSR) Style
G1
D1
G2
D2
Over
Bearing cap
Over
Bearing cap
Caps
Diameter
Caps
Diameter
64mm
25mm
64mm
25mm

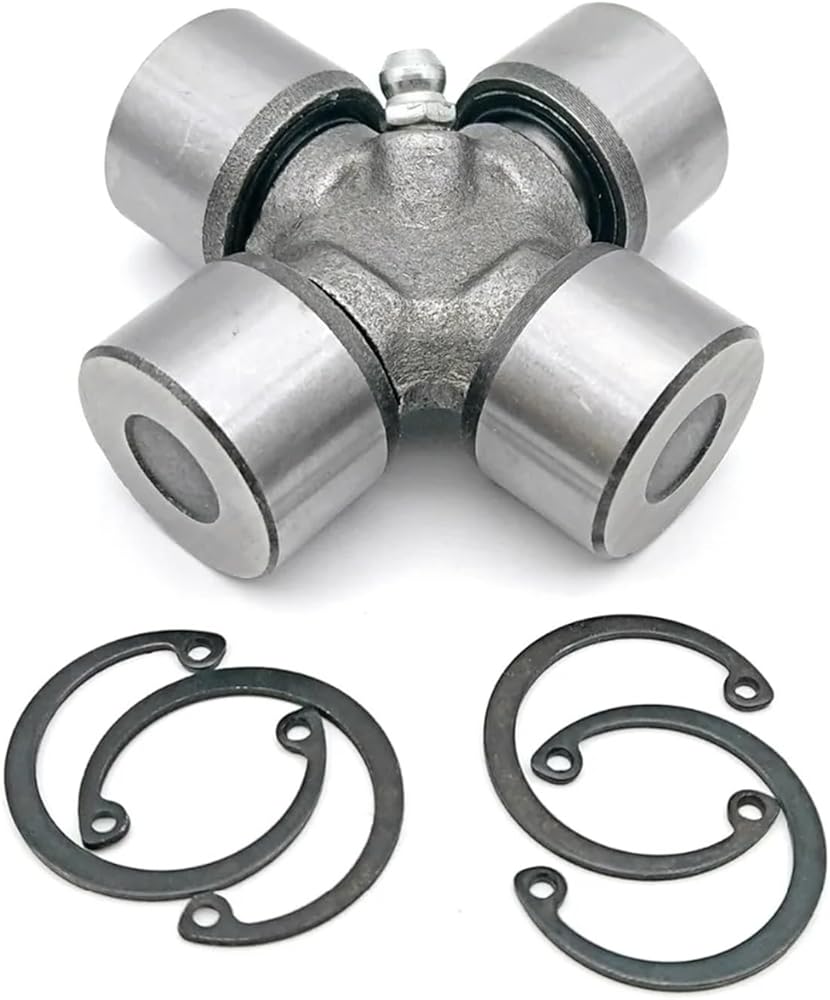

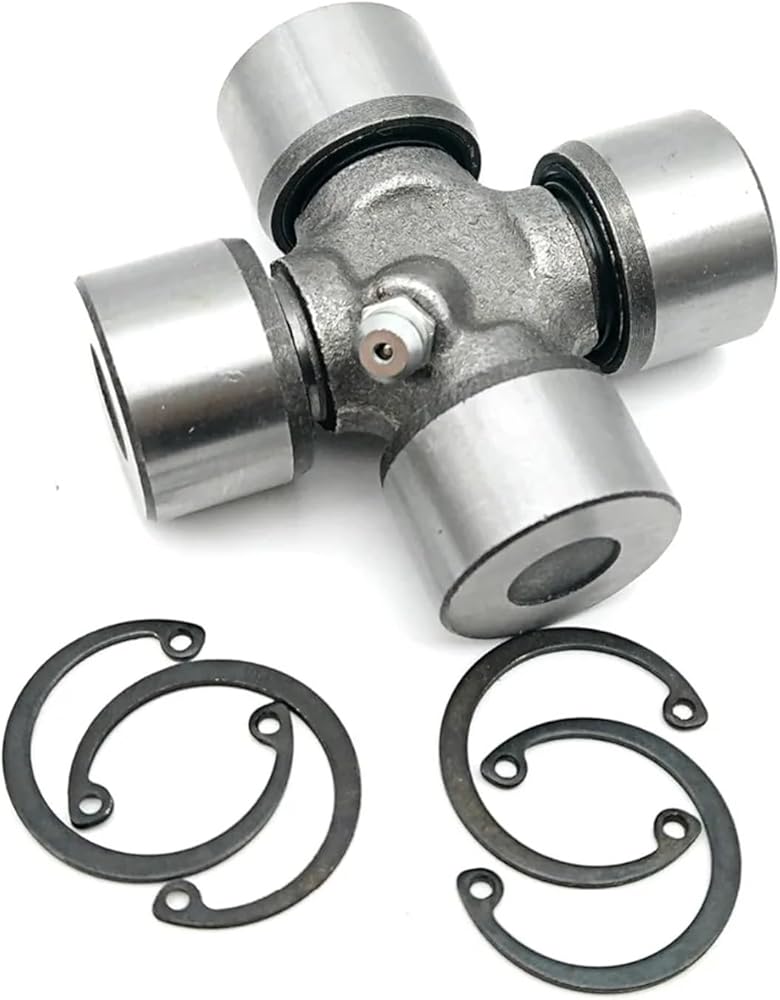

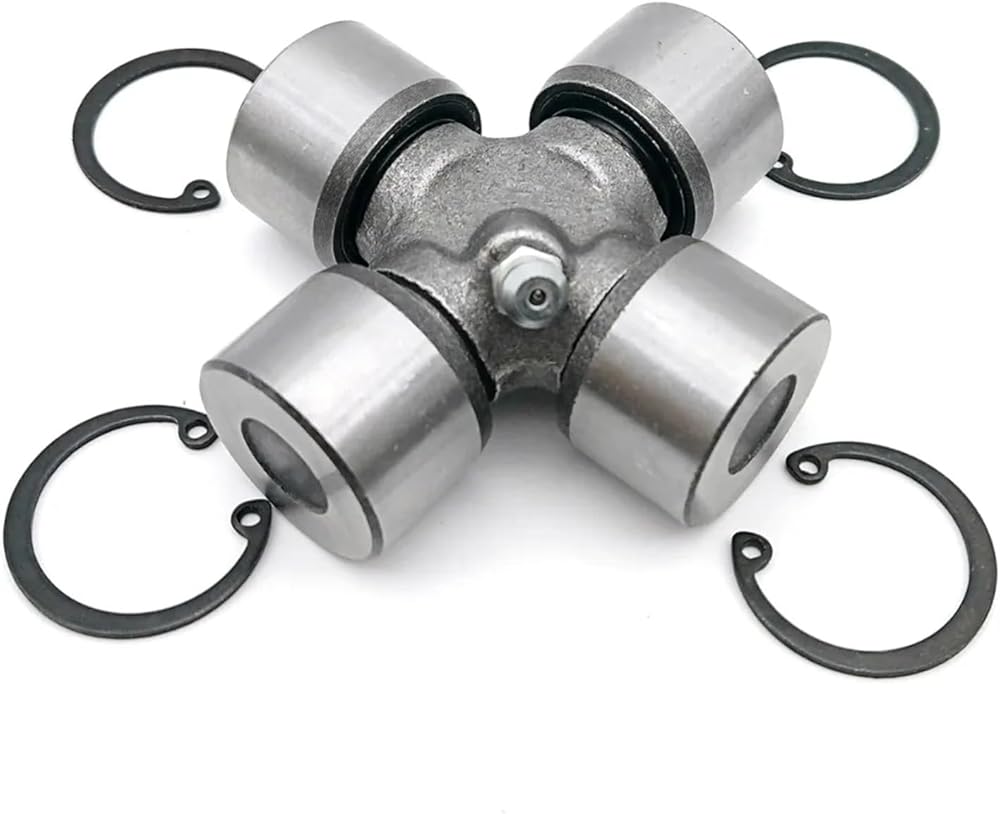

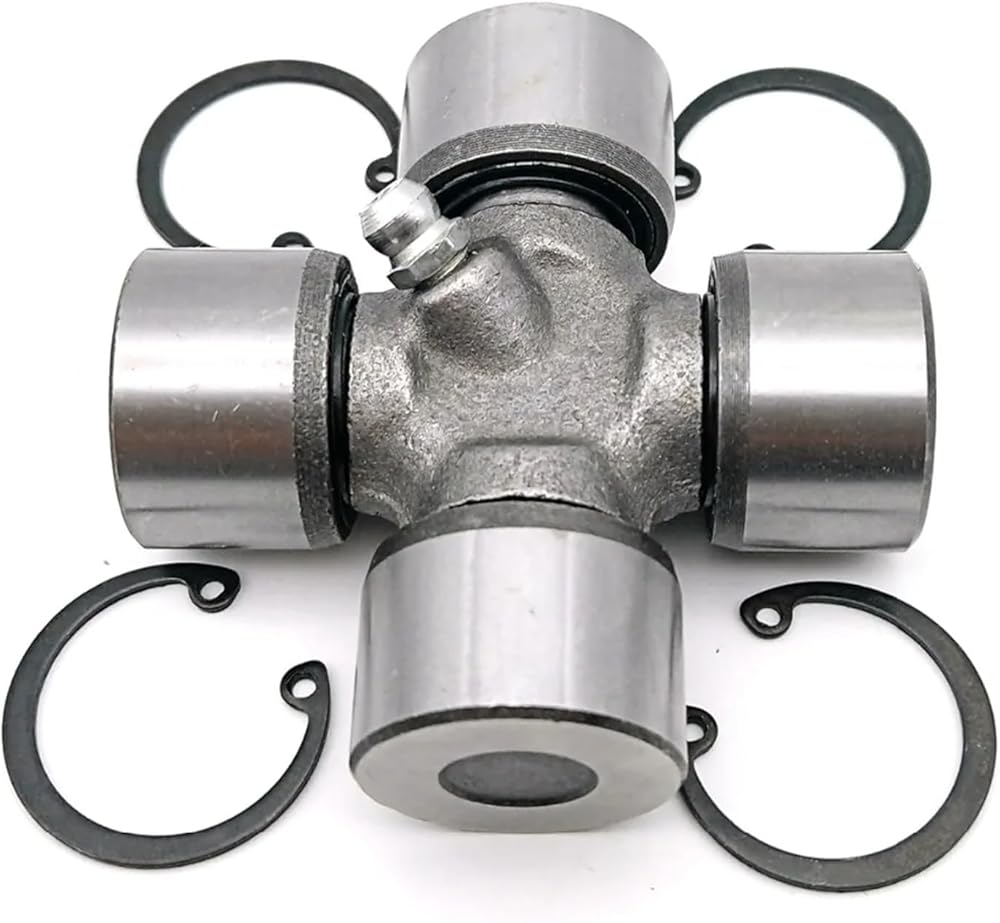

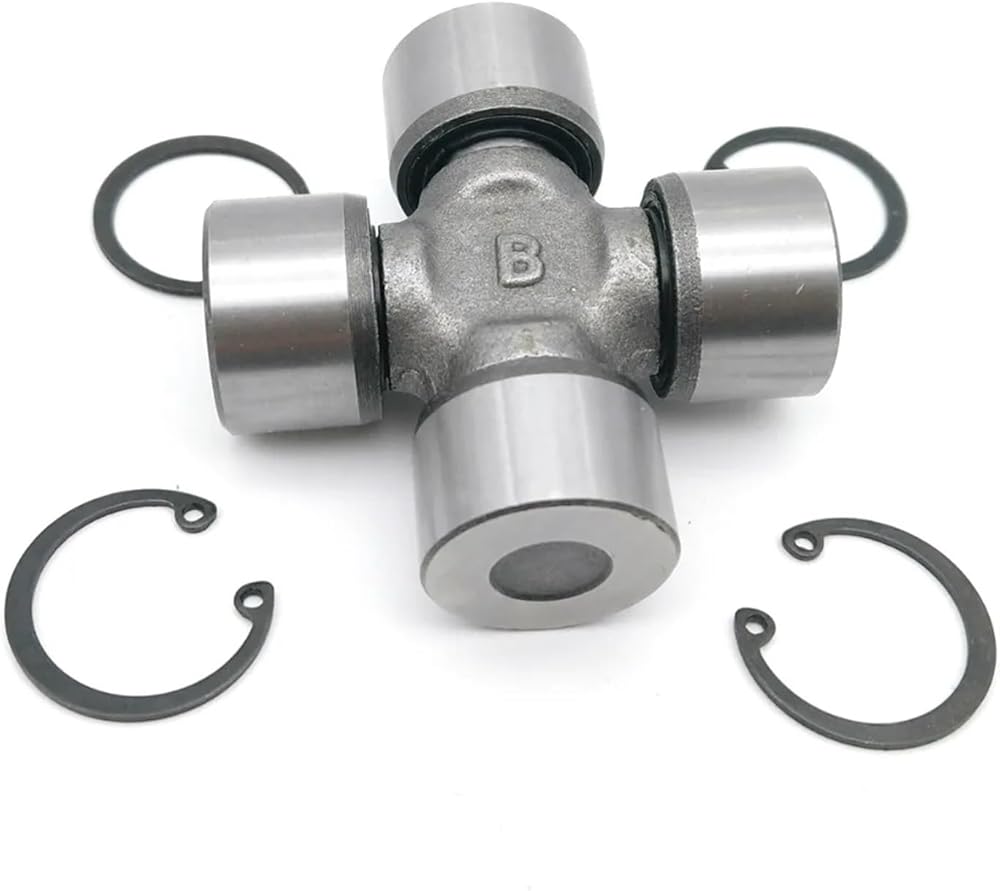

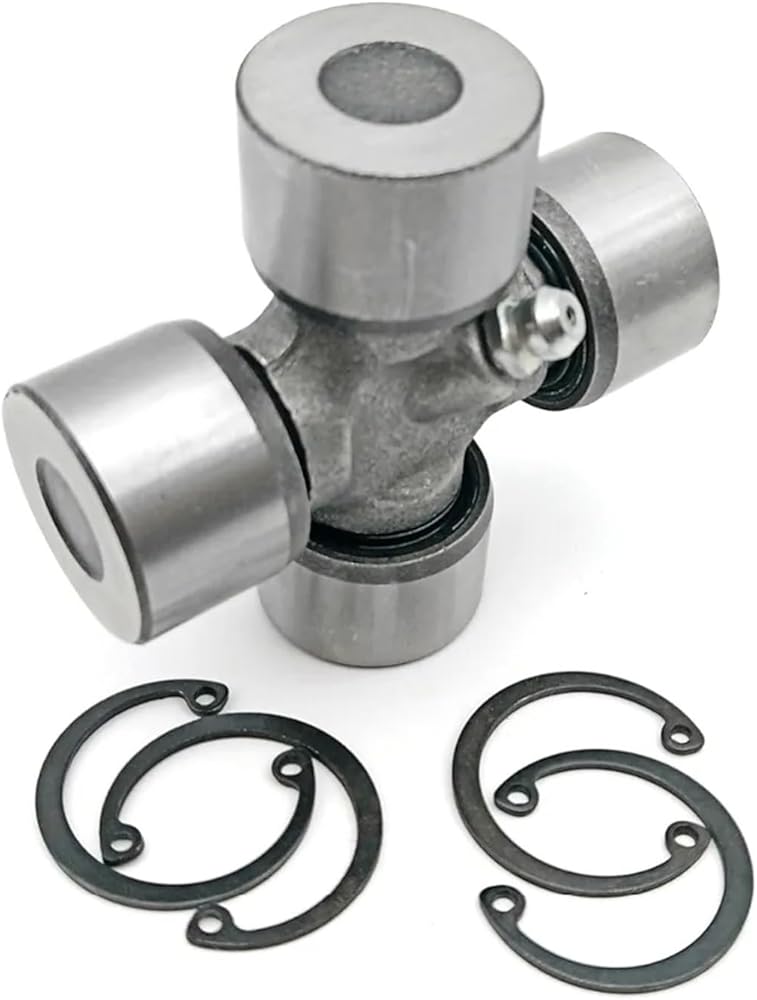

MOCHU Universal Joints/Crucetas/Joints de cardan
Mechanical,passenger car, light, medium and heavy duty truck applications
Includes Universal Joint dimensions & related parts
Ujoints with 4 plain round bearings
First, measure the outside diameters of two adjacent bearings to see if they are the same or different. Locate the diameter(s)
in the first column using the smaller diameter first if the bearings are of two sizes. Second, remove the seals from two
bearings opposite each other and re-install the bearings on the cross. Measure the overall dimension and locate it in the
second column. Note, the measured dimension should be slightly less than that shown. If necessary, note the type and
location of any lube fittings.
Model Number : 25X64 LZ111
Operating Angle : JOINTS
Material : Steel
Structure : Cross
