The low speed synchronous motor is a new type of motor with the characteristics of low power consumption, high torque, low noise, small size, light weight and easy use. Commonly used in air conditioners, electric fan, industrial use, etc.

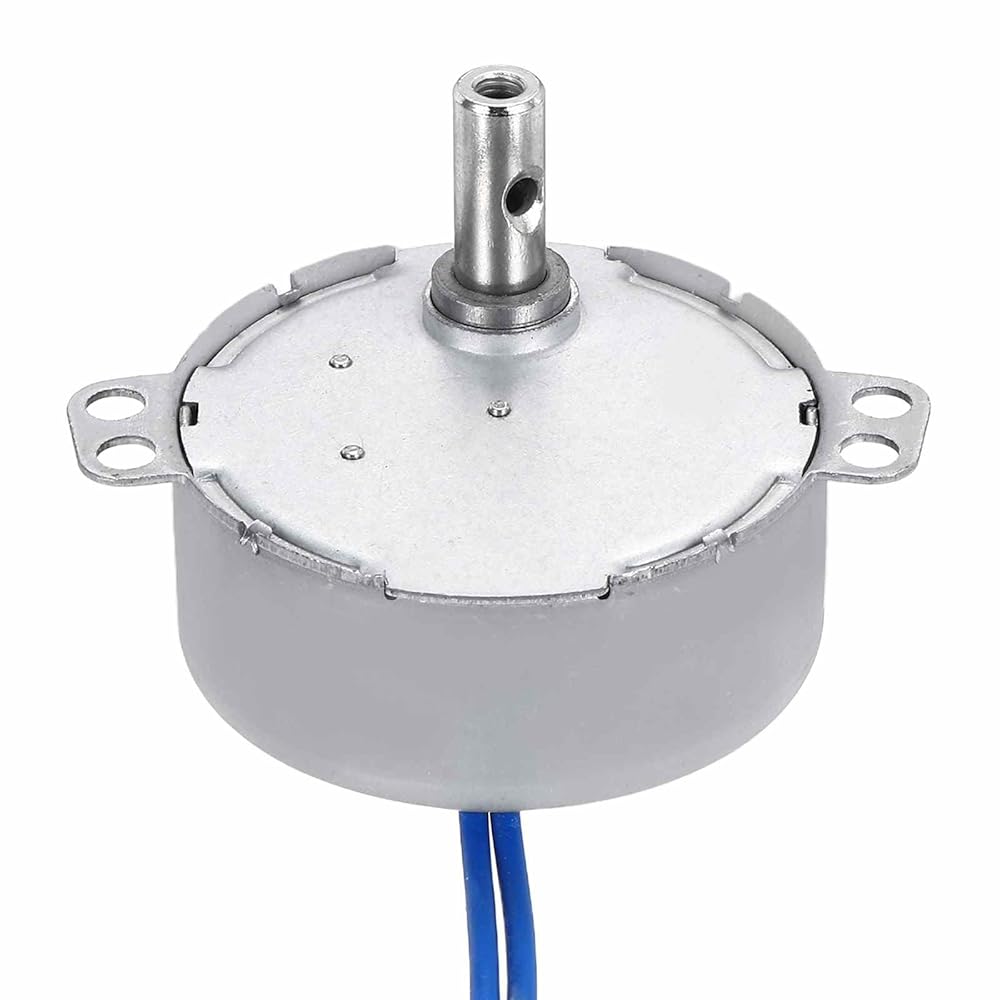

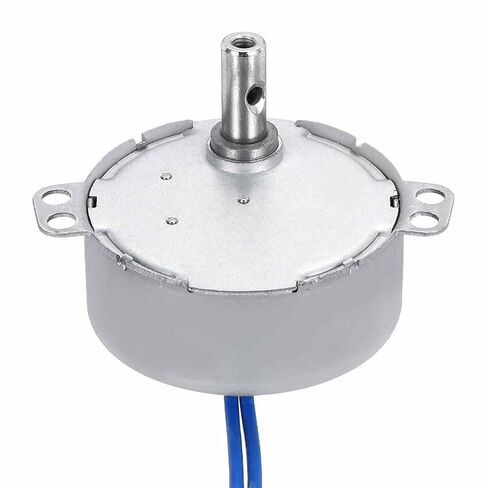

Permanent Magnet Synchronous Motor: Size: 49 x 49 x 20 mm / 1.93 x 1.93 x 0.79 inch (L x W x H); Wire Length: 40cm / 15.75 inch; Shaft Size: 7 x 15 mm / 0.28 x 0.59 inch (OD x L); Spin Direction: CW/CCW; Speed: 30-36 RPM; Frequency: 50/60Hz; Rated Power: 4W; Rated Voltage: AC100-127V;
This product is a permanent magnet synchronous motor and a reduction gear integrated into one, and is a non-directional (CW/CCW: it will automatically reverse when facing large resistance) low-speed synchronous motor. At rated frequency, the motor speed is not affected by voltage and remains constant. It has a wide range of applications and can be used for monitor pan/tilts, electric equipment, HVAC valves, automation instruments, etc.
This low speed synchronous motor is very easy to install. Align the output shaft of the motor with the input shaft of the corresponding equipment and install them firmly. Connect the copper wire at the end of the motor cable to the corresponding electrical control system by welding to complete the installation.
Please check the product specifications and operate within the specified voltage parameters.
