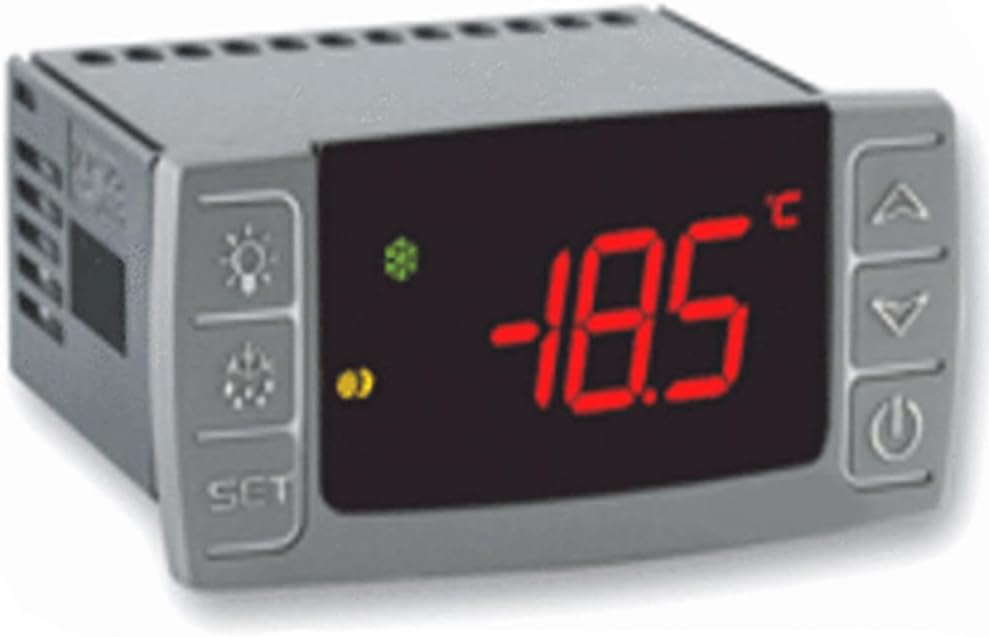

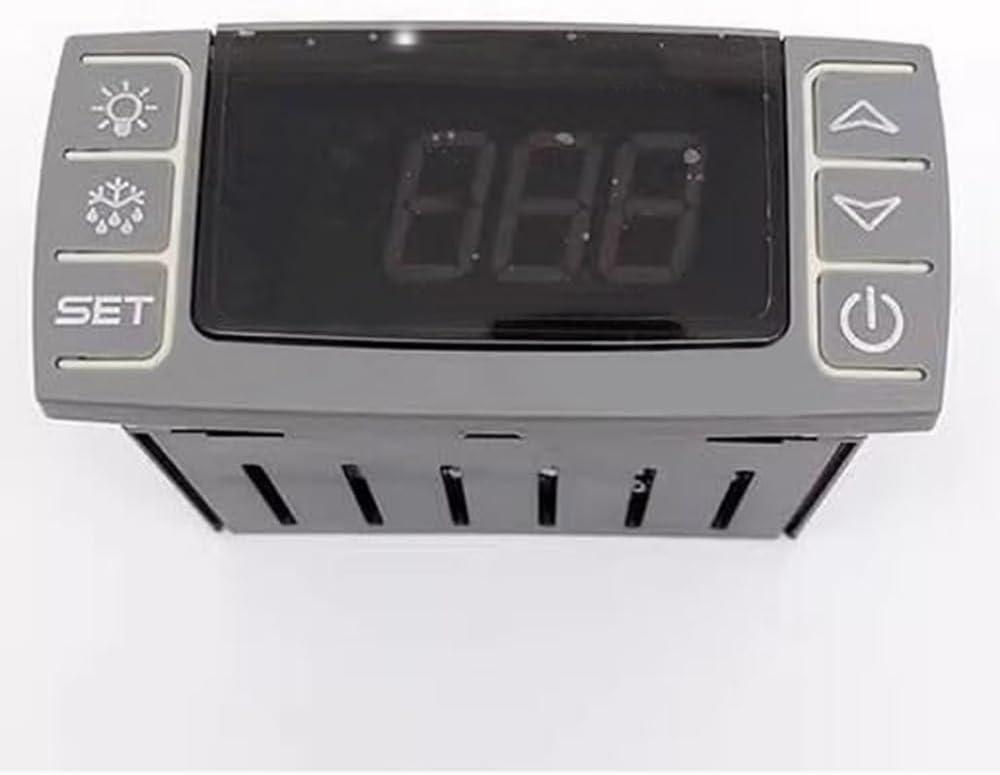

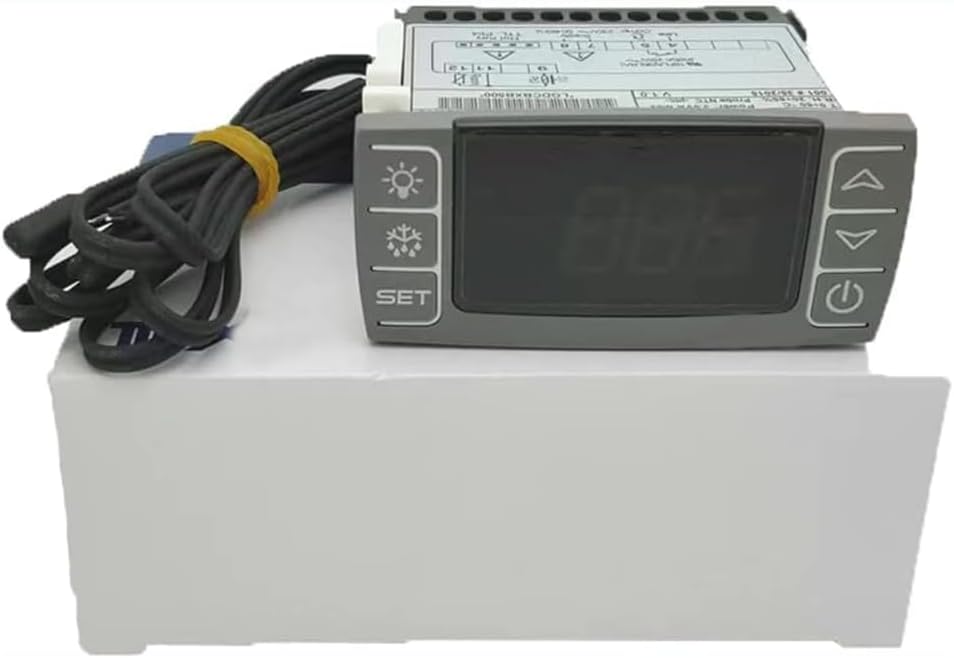

XR60CX-5N1C1,format 32 x 74mm,is microprocessor based controller,suitable for applications on medium or low temperature ventilated refrigerating units.It has three relay outputs to control compressor,fan,and defrost,which can be either electrical or reverse cycle (hot gas).It is also provided with 2 NTC or PTC probe inputs,the first one for temperature control,the second one,to be located onto the evaporator,to control the defrost termination temperature and to managed the fan.The digital input can as fourth temperature probe.

The HOT KEY output allows to connect the unit,by means of the external module XJ485-CX,to a network line ModBUS-RTU compatible such as the monitoring units of X-WEB.It allows to program the controller by means the HOT KEY programming keyboard.The instrument is fully configurable through special parameters that can be easily programmed through the keyboard.

Compressor
The regulation is performed according to the temperature measured by the thermostat probe with a differential from the set point,if the temperature increases and reaches set point plus differential the compressor is started and then turned off when the temperature reaches the set point value again.

Suit for:
Commercial Refrigerators & Freezers
Beer & Beverage Dispensers
Wine Coolers & Display Chillers
Supermarket & Restaurant Cold Storage

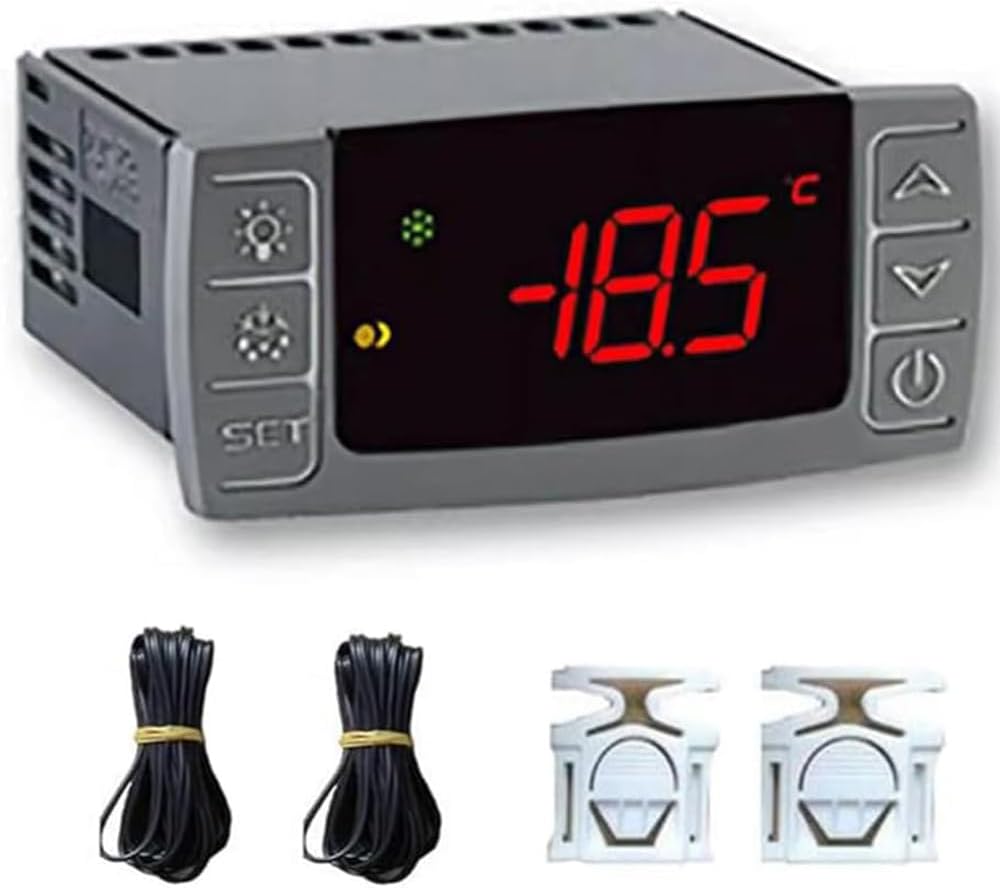

Package Include
1 X XR60CX Digital Thermostat Controller
2 X Clips

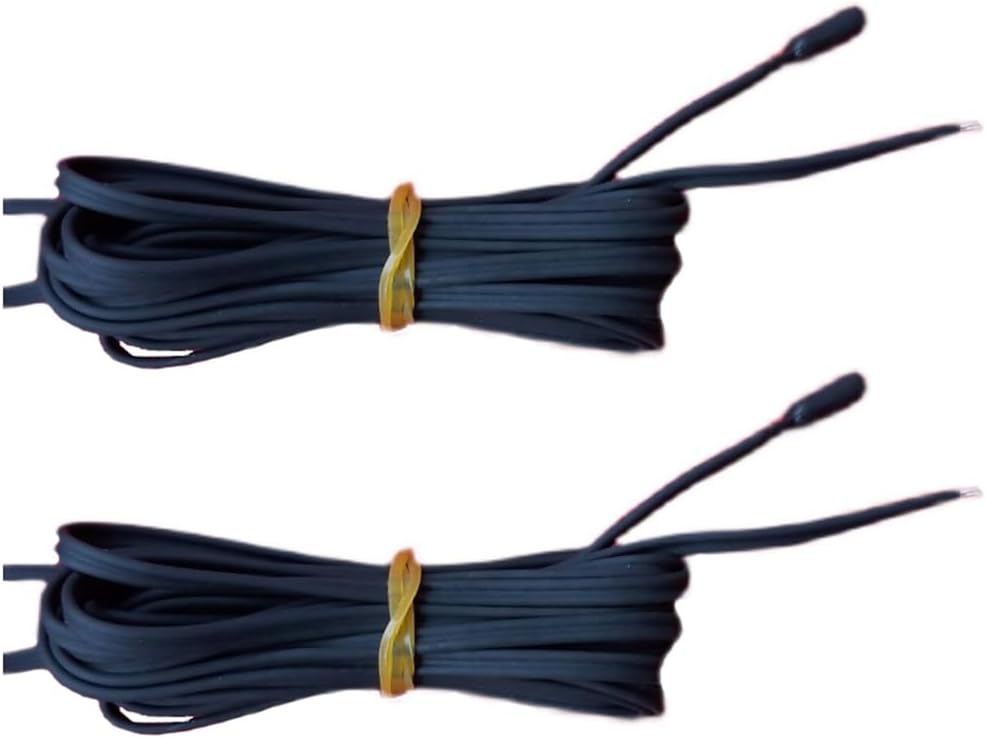

2 X Black Temperature Probes
