High Precision and Versatility:** The ADS1115 16-bit 860SPS 4-Channel ADC Module offers 16-bit resolution for precise measurements, making it ideal for industrial control and sensor data acquisition. Its 7 programmable input ranges from ±0.256V to ±6.144V ensure flexibility in various applications
Energy Efficiency and Low Power Consumption:** With a power consumption of only 150µA in continuous mode and an auto-shutdown feature in single-shot mode, the ADS1115 16-bit 860SPS 4-Channel ADC Module is perfect for battery-powered devices, ensuring long-lasting performance and reliability
Flexible Interface and Programmable Settings:** The ADS1115 16-bit 860SPS 4-Channel ADC Module features an I2C interface with 7-bit addresses (0x48-0x4B), allowing for easy integration into your projects. Its programmable gain amplifier and data rate (8sps to 860sps) provide the flexibility needed for diverse applications
Versatile Channels and Wide Input Voltage Range:** This ADS1115 16-bit 860SPS 4-Channel ADC Module supports 4 single-ended channels or 2 differential inputs, with a wide input voltage range of 2.0V to 5.5V. This makes it suitable for a variety of DIY electronics projects and environmental monitoring systems

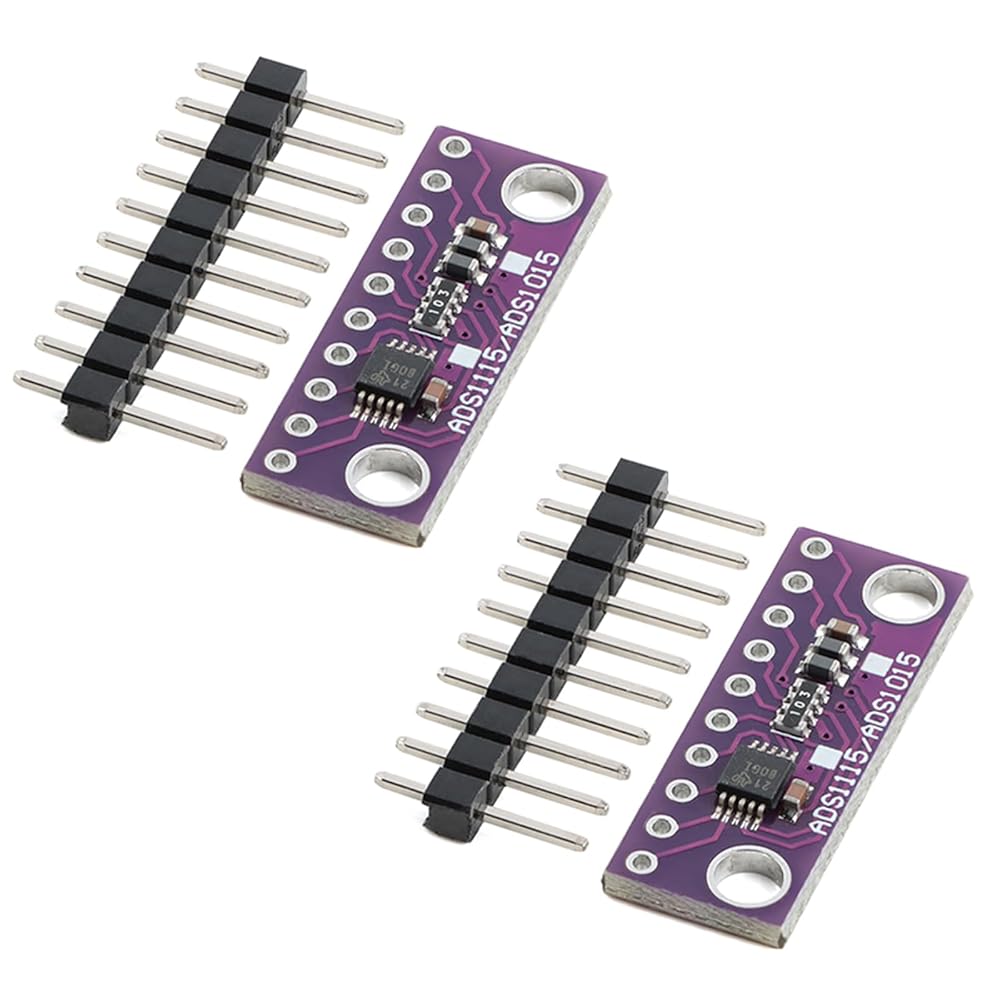

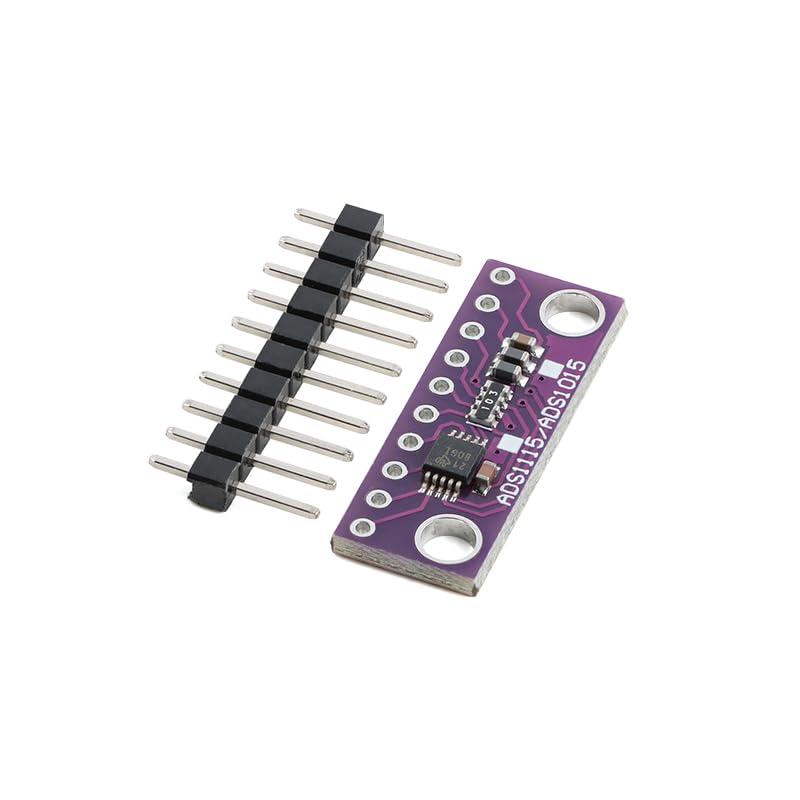

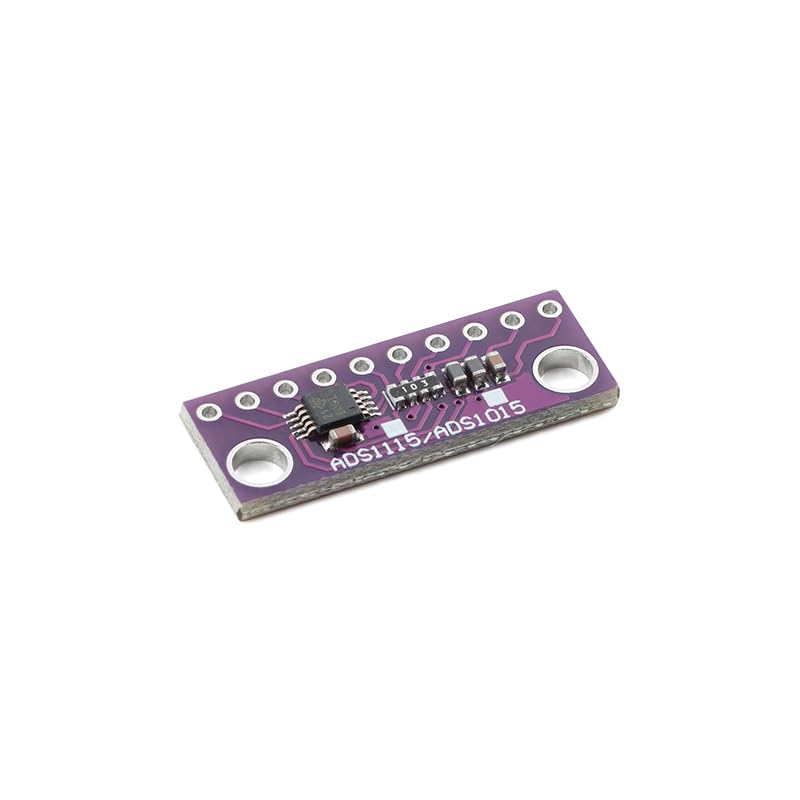

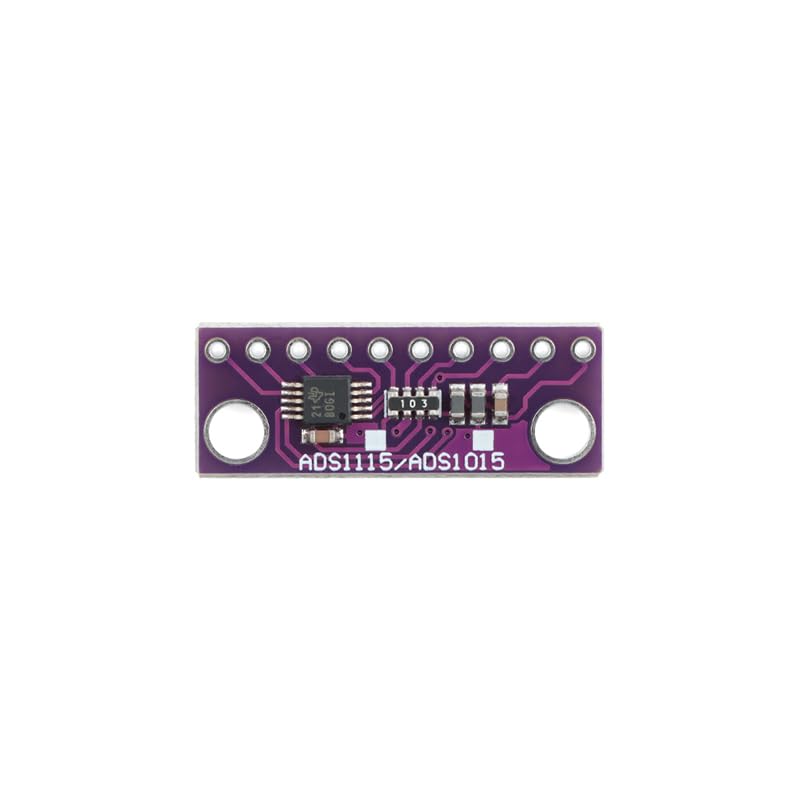

Compact and Reliable Design:** The ADS1115 16-bit 860SPS 4-Channel ADC Module comes in a compact size of 16mm x 28mm with a Purple PCB, ensuring it fits easily into any project. Its high precision and reliability make it a top choice for both professional and hobbyist applications
وصف
Description:
The ADS1115 Module is a high-precision, 16-bit analog-to-digital converter (ADC) designed for a wide range of applications, including industrial control, environmental monitoring, and sensor data acquisition. With its low power consumption and programmable gain amplifier, this module is ideal for both professional and hobbyist projects.
Key Features:
- High Resolution: 16-bit ADC for precise measurements.
- Low Power Consumption: Only 150µA in continuous mode, with auto-shutdown in single-shot mode.
- Multiple Input Ranges: 7 programmable input ranges from ±0.256V to ±6.144V.
- Flexible Interface: I2C interface with 7-bit addresses (0x48-0x4B).

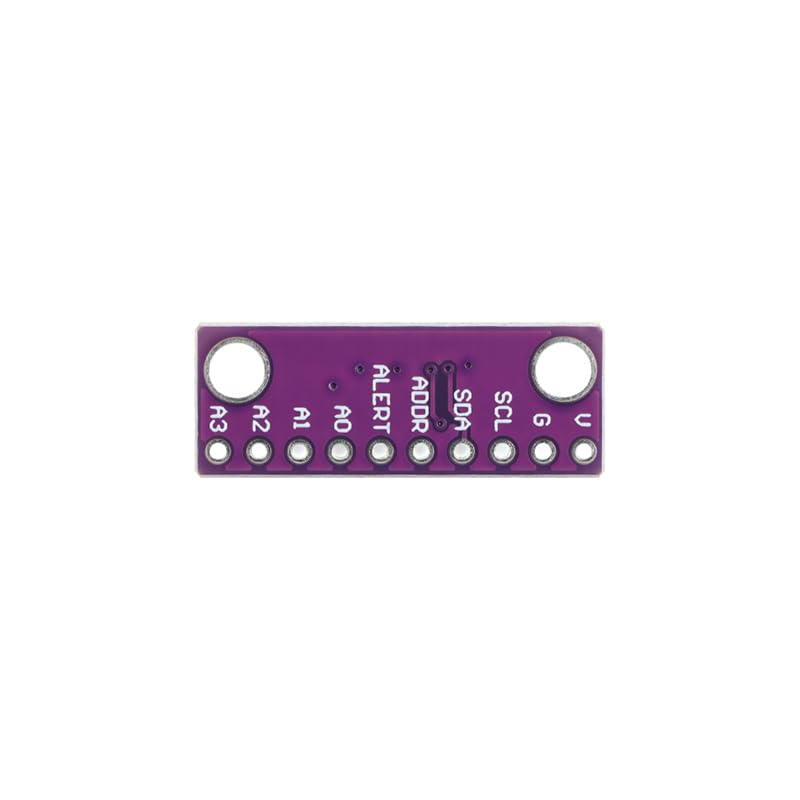

- Versatile Channels: 4 single-ended channels (AN0, AN1, AN2, AN3) or 2 differential inputs.
- Wide Input Voltage Range: 2.0V to 5.5V, with channel input voltage from 0 to VDD.
- Programmable Data Rate: 8sps to 860sps.
Applications:
- Industrial control systems
- Environmental monitoring
- Sensor data acquisition
- DIY electronics projects
- Battery-powered devices
Technical Specifications:
- Color: Blue
- Size: 16mm x 28mm
- Package Includes:
- 1 x ADS1115 Module ADC 4 Channel with Programmable Gain Amplifier
Why Choose the ADS1115 Module?
- Precision and Reliability: The 16-bit resolution ensures highly accurate measurements, making it suitable for critical applications.
- Energy Efficiency: The low power consumption and auto-shutdown feature make it ideal for battery-powered devices.
- Flexibility: Multiple input ranges and versatile channel configurations allow for a wide range of applications.
- Ease of Use: Simple I2C interface and programmable settings make it easy to integrate into your project.
