مميزات خاصة

【Multi material compatibility, unlimited detection】:Can detect almost all objects such as metal, plastic, glass, liquids, etc., without being limited to specific materials, suitable for multi scene detection needs
【Long distance detection+fast respons】:The farthest detection distance can reach tens of meters, and the response time is as short as microseconds, quickly capturing the instantaneous movement of objects and accurately adapting to high-speed counting and sorting scenarios on assembly lines
【High protection and anti-interference, fully adaptable to working conditions】:The shell is made of durable materials, with dust-proof and waterproof levels, able to withstand wide temperature environments, and equipped with anti stray light interference technology. It can work stably in workshops, outdoors, and humid environments
【High resolution design, measurable for small objects】:The projection beam is concentrated into small light points, combined with a special light receiving optical system, which can achieve high-precision position detection and easily identify fine targets such as small parts and transparent films
【Visual debugging+easy integration, worry free and user-friendly】:Some models project visible light for quick calibration of detection positions; Output NPN/PNP switch signal, can be directly connected to PLC and industrial computer, without the need for additional circuit conditioning

وصف

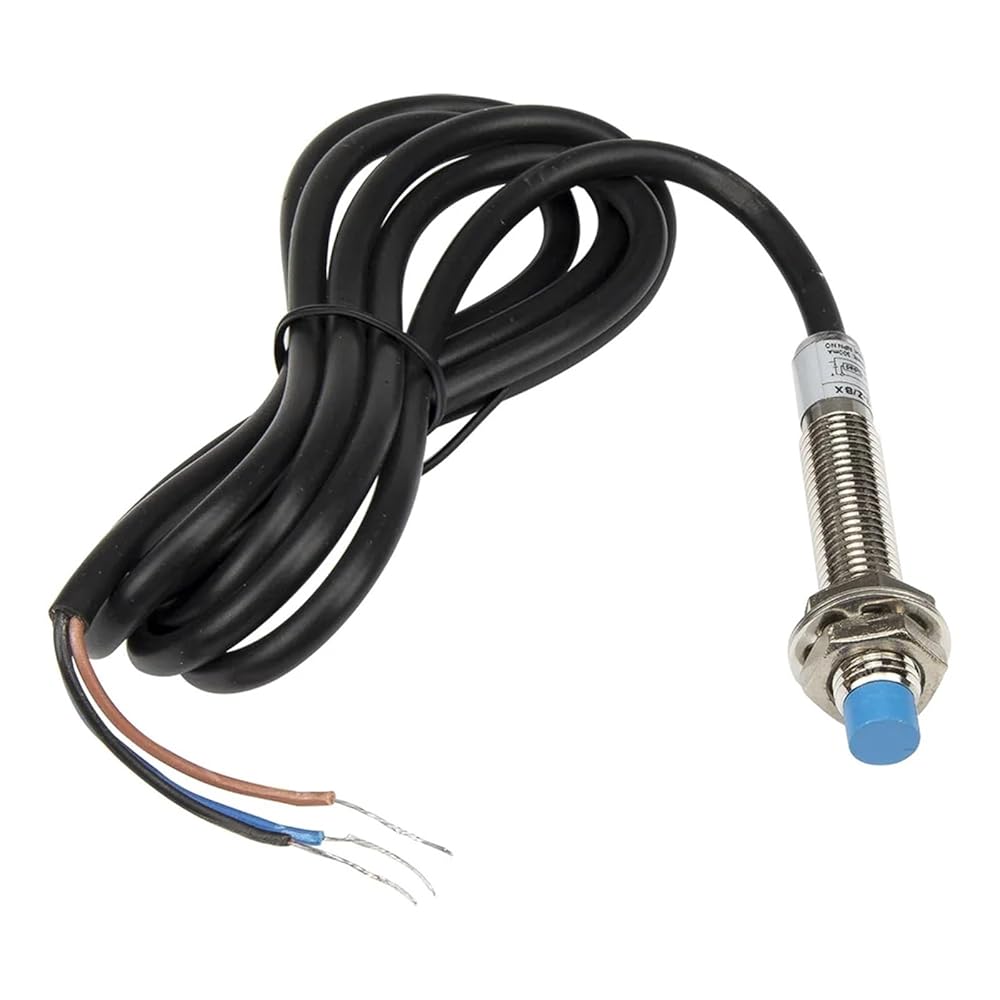

M8 2mm Sensing DC 6-36V NPN PNP NO NC LJ8A3-2-Z/BX BY AX AY Cylinder Inductive Proximity Sensor Switch, 1pc
Model number:LJ8A3-2 series
External dimensions:M8x50
Installation type:Non-shielded
Detection distance:2mm
Setting distance:0-1.6 mm
Supply voltage:6-36Vdc, 5Vdc; 90-250Vac, 50/60Hz
Output current
DC type: 300mA max; AC Type: 400mA
Standard detected object
Mild steel (8x8x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency:500Hz
Matched mounting bracket:M8 mounting bracket
Output indication
Red LED
Short-circuit protection:No
Reverse connection protection:Yes
Insulation resistance:50M min (between charging part and housing)
Dielectric strength:1000Vac, 1min (between charging part and housing)
IP Rating:IP65
Operating temperature:-25 to 70 °C (13 to 158 °F)
Cable length:1.2m, PVC cable
Material
Case: Brass-nickel plated; Sensing surface: ABS
Model Number : LJ8A3-2-Z/BX LJ8A3-2-Z/AX LJ8A3-2-Z/BY LJ8A3-2-Z/AY
