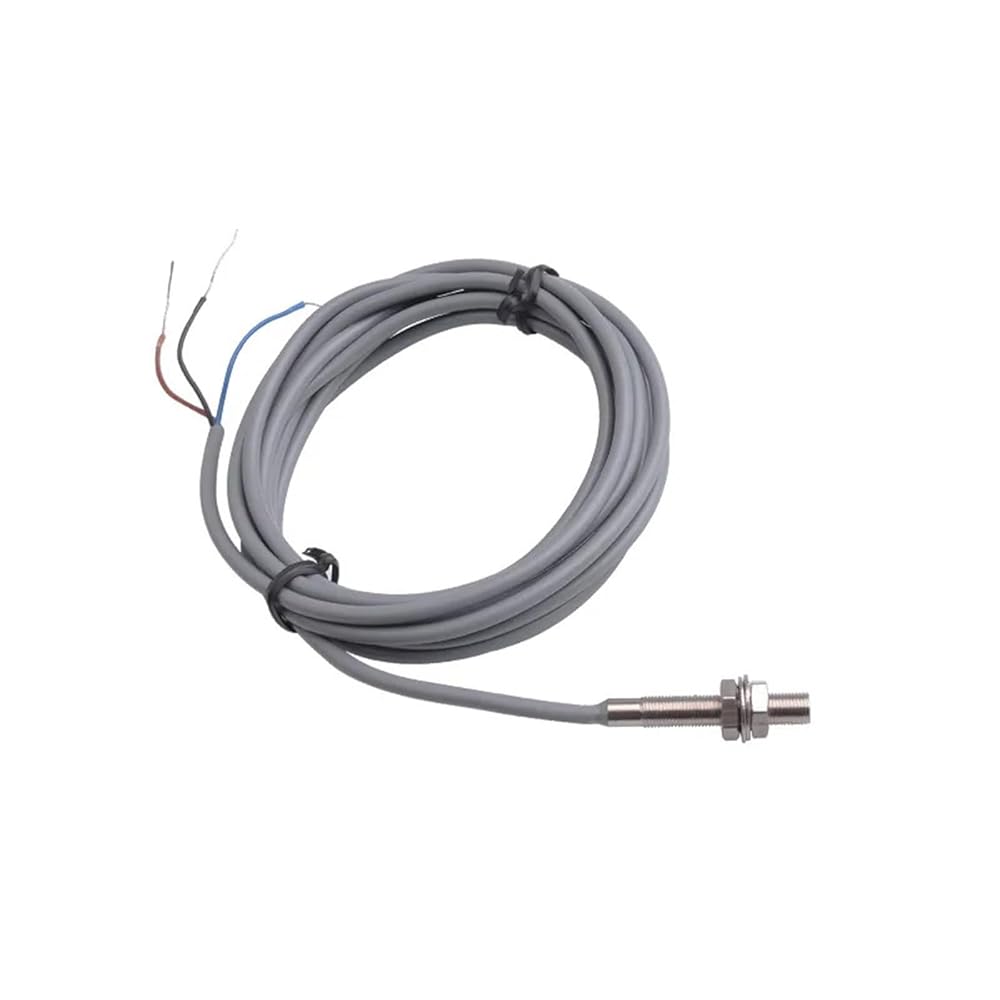

Proximity Switch IP65 Waterproof, Three Wire Inductive Sensor With 2m Cable NPN PNP NO NC M3-M6, 1pc
Sensing distance: 1mm
Load current: 100mA
Working voltage: 10-30VDC
Protection grade: IP65
Operating frequency: 1kHz
Operating temperature: - 25 ~ 70
NPN:
indicates common positive voltage and output negative voltage
PNP:
indicates common negative voltage and outputs positive voltage
NPN NO:
Normally, it is normally open. When materials are detected, the black line outputs a negative
pressure signal
NPN NC:
Normally, it is normally closed, and the black line outputs negative pressure signal. When the
material is detected, the signal is disconnected
PNP NO:
Normally, it is normally open. When the material is detected, the black line outputs a positive
pressure signal
PNP NC:
Normally, it is normally closed, and the black line outputs a positive pressure signal. When the
material is detected, the signal is disconnected
Current : 100mA
Material : Alloy
Switch Type : Proximity Switch
Model Number : M3/M4/M5/M6
