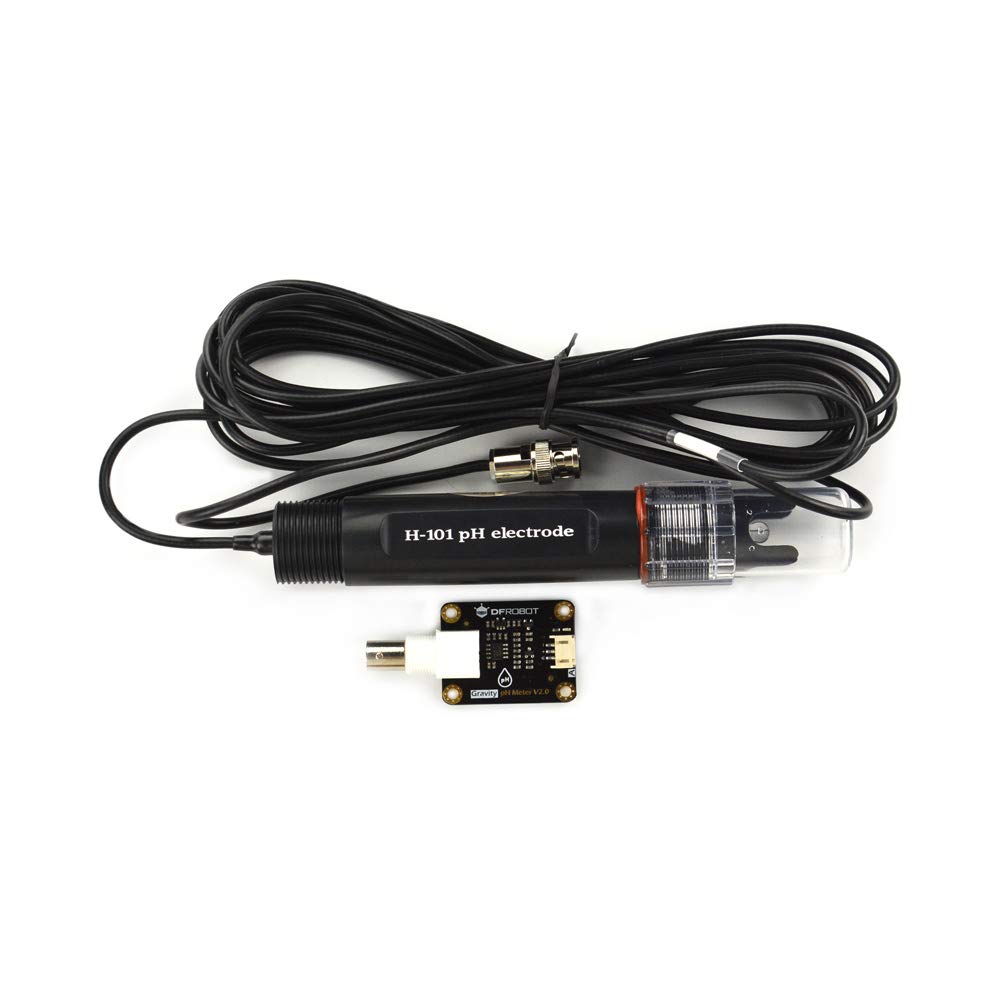

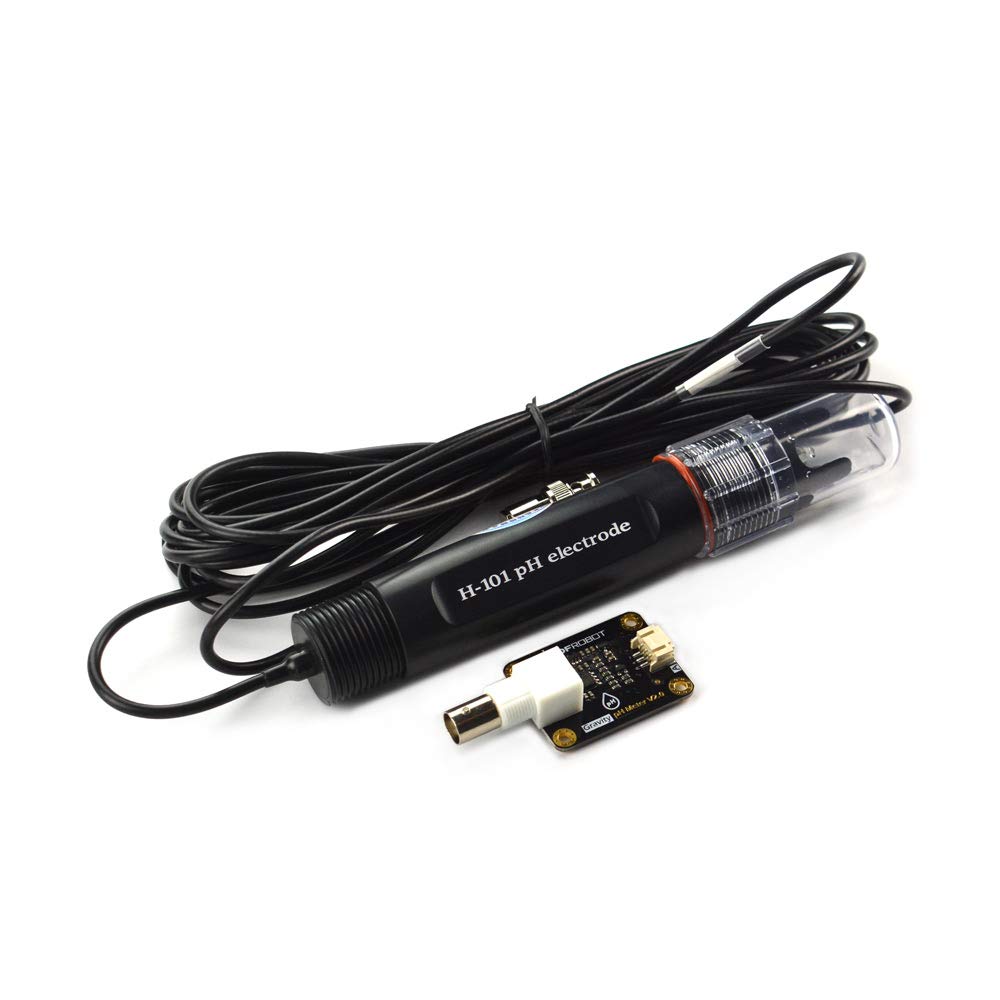

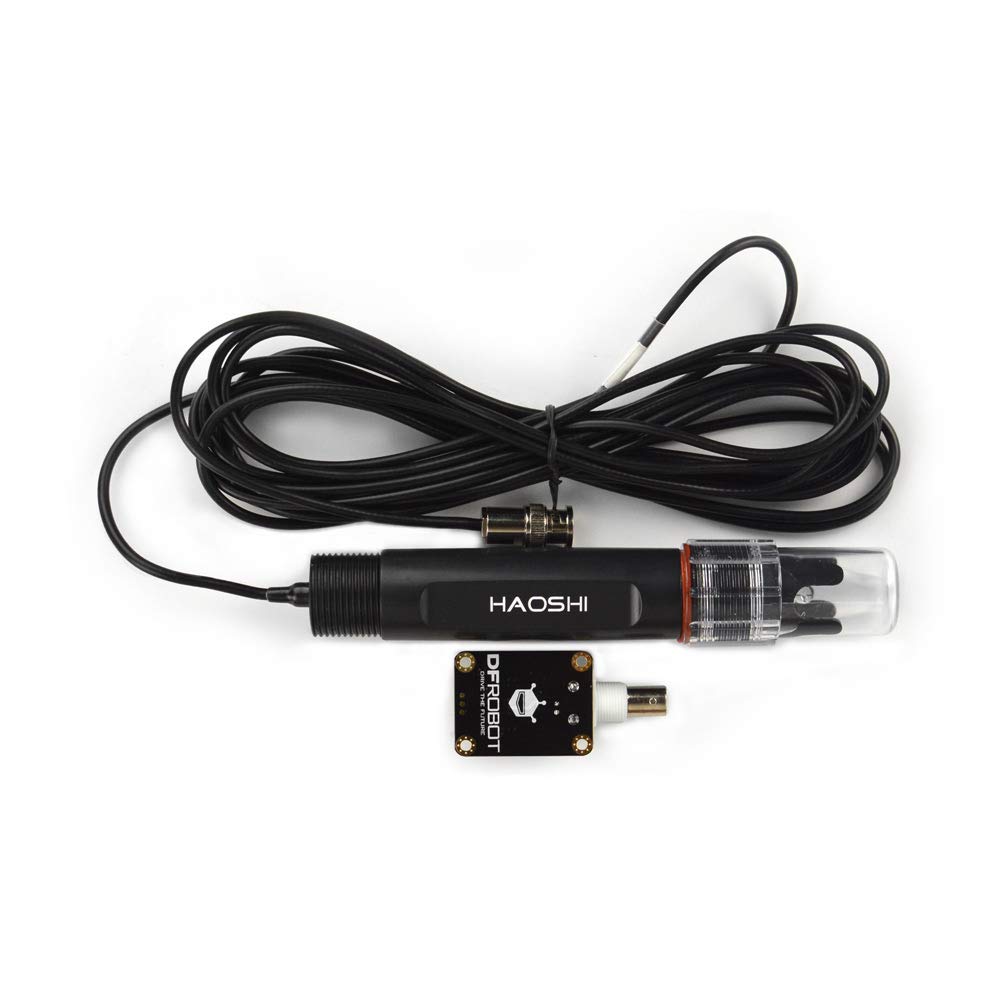

DFRobot Gravity: Analog pH Sensor/Meter Kit V2

Introduction
The new Arduino Analog pH sensor/Meter is compatible with Raspberry Pi and Arduino microcontroller.

Attention：
1. The BNC connector and the signal conversion board must be kept dry and clean, otherwise, it will affect the input impedance, resulting in an inaccurate measurement. If it is damp, it needs to be dried.
2. The signal conversion board cannot be directly placed on a wet or semiconductor surface, otherwise, it will affect the input impedance, resulting in the inaccurate measurement. It is recommended to use the nylon pillar to fix the signal conversion board, allow a certain distance between the signal conversion board and the surface.

Features
3.3~5.5V wide voltage input
Hardware filtered output signal, low jitter
Gravity connector and BNC connector, plug and play, no welding
Software library supports two-point calibration, and automatically identifies standard buffer solution
Uniform size and connector, convenient for the design of mechanical structures

Specification
Signal Conversion Board (Transmitter) V2
Supply Voltage: 3.3~5.5V
Output Voltage: 0~3.0V

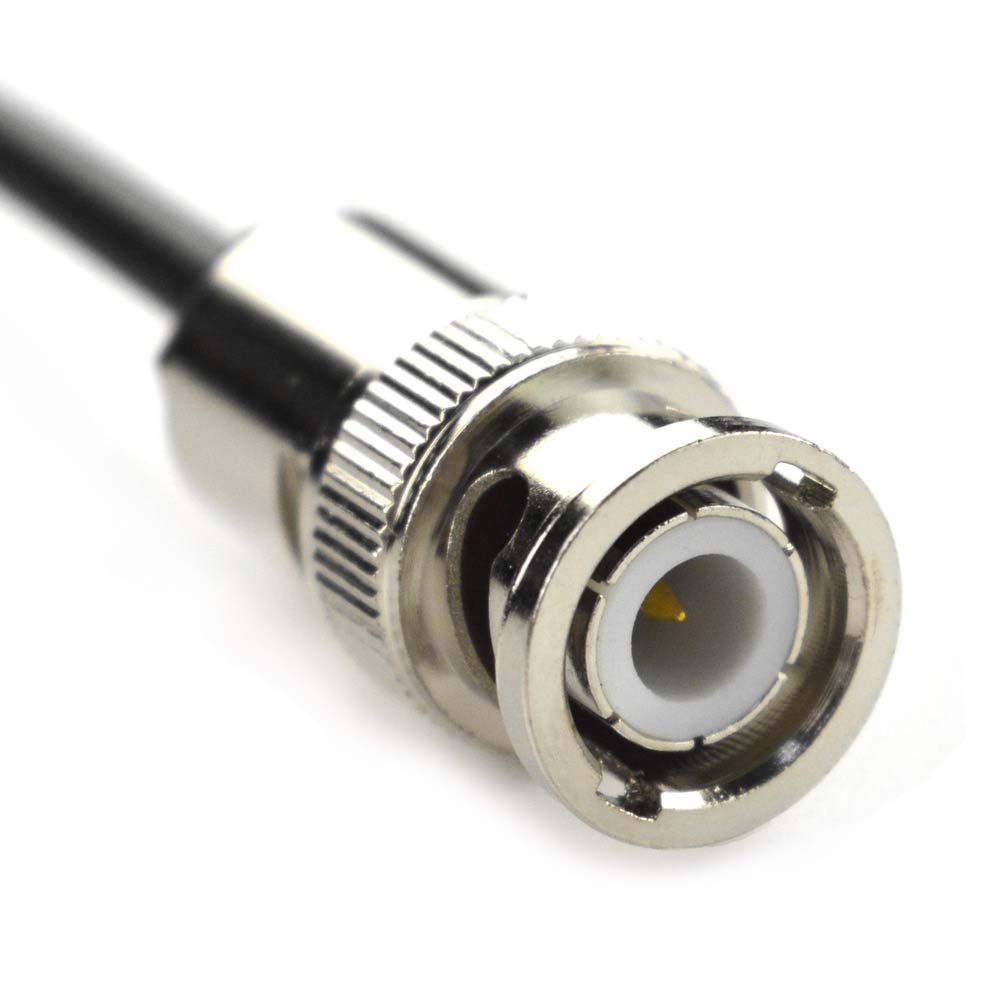

Probe Connector: BNC
Signal Connector: PH2.0-3P
Measurement Accuracy: ±0.1@25℃
Dimension: 42mm*32mm/1.66*1.26in

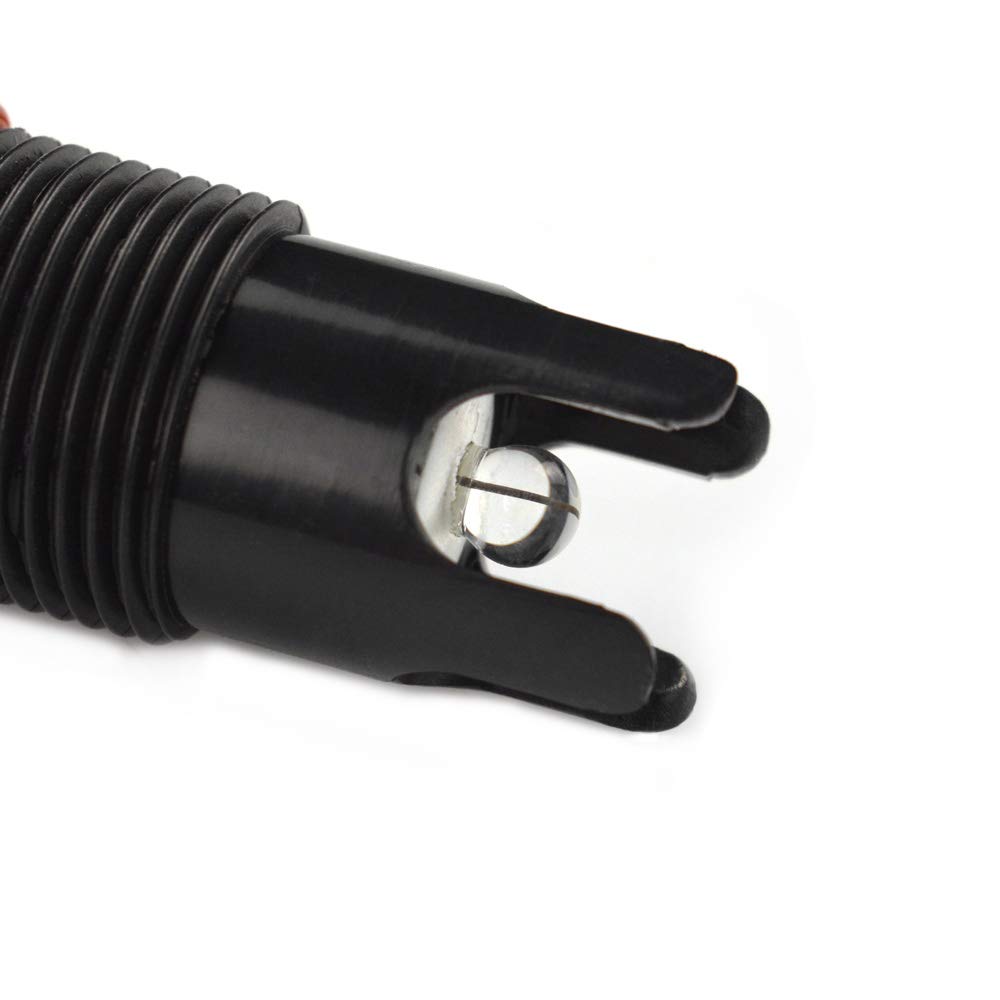

pH Probe
Probe Type: Industrial Grade
Detection Range: 0~14
Temperature Range: 0~60°C
Accuracy : ± 0.1pH (25 ℃)
Response Time: Probe Life: 7*24hours >0.5 year (depending on the water quality)
Cable Length: 500cm

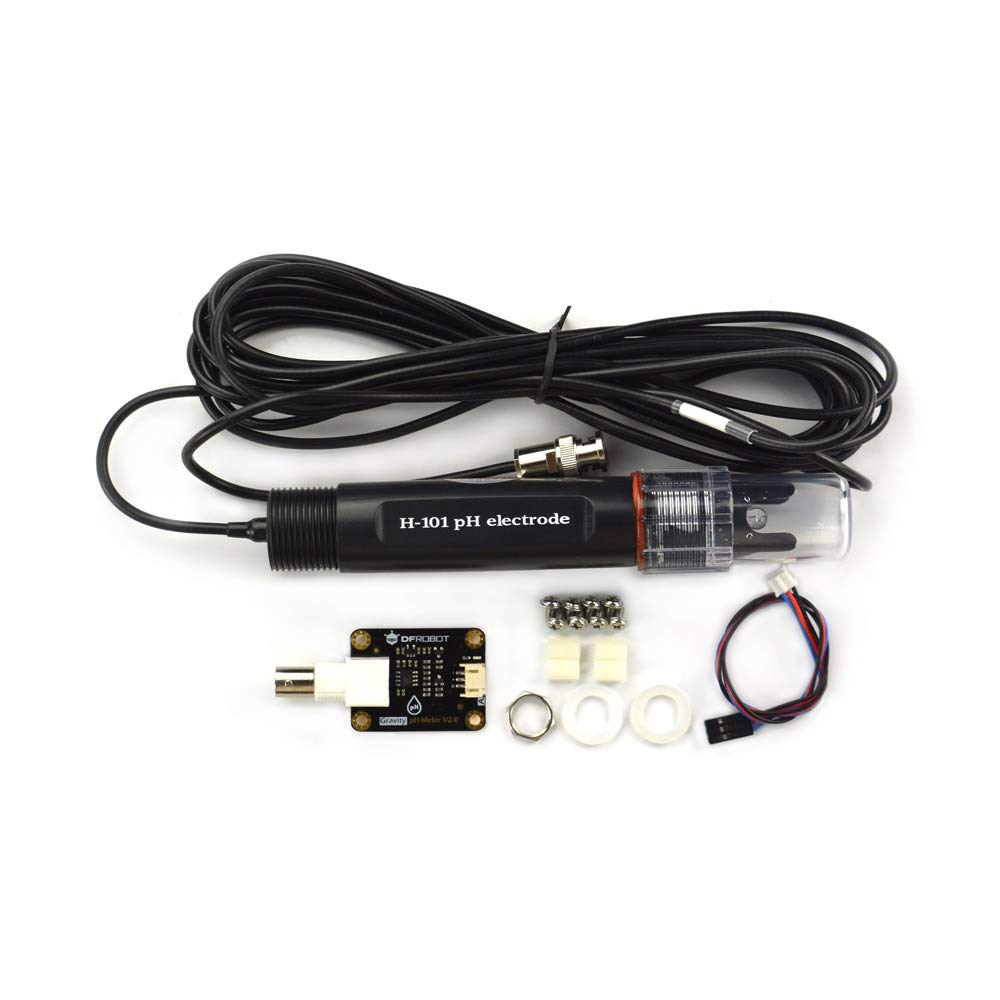

Shipping list
pH Probe (Industrial Grade) x1
pH Signal Conversion Board V2 x1
Gravity Analog Sensor Cable x1
Waterproof Gasket x2
Screw Cap for BNC Connector x1
M3 * 10 nylon pillar x4
M3 * 5 screw x8
