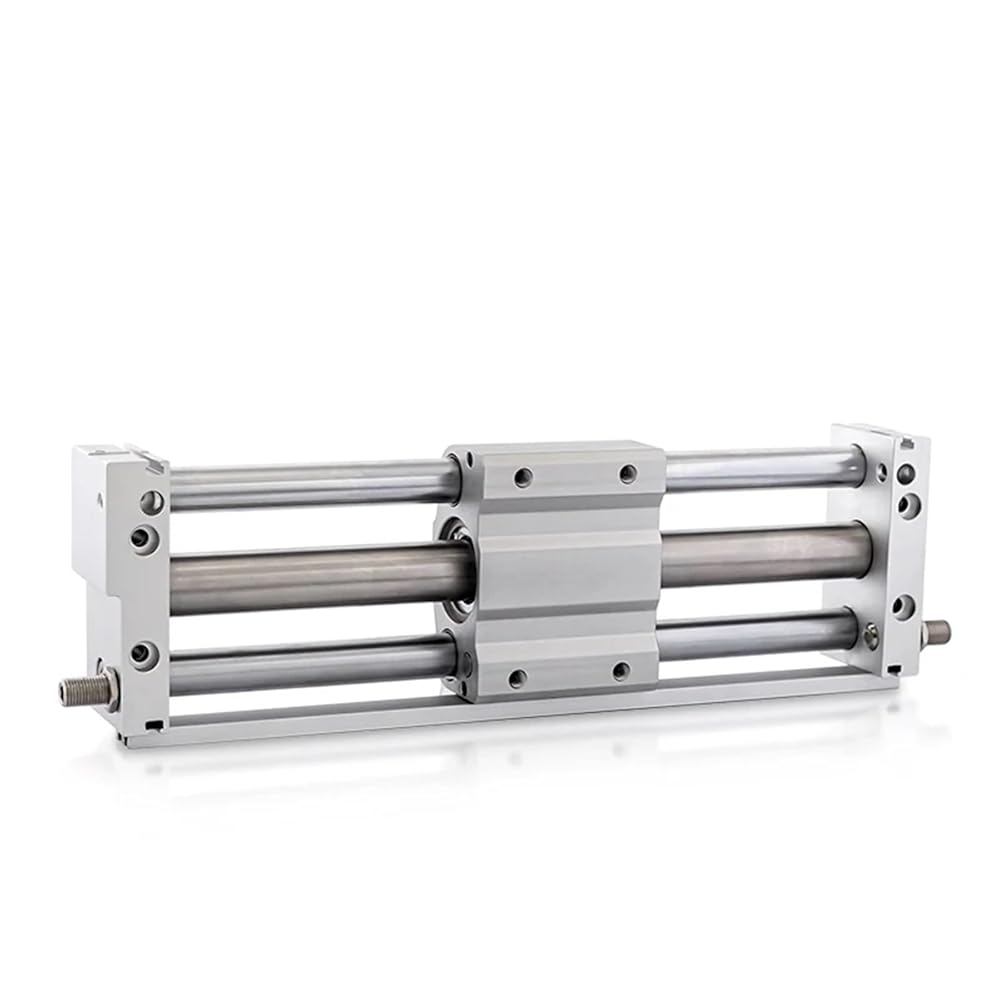

Efficient space utilization: The innovative magnetic coupling rodless design significantly shortens the structural length compared to traditional cylinders, saving installation space by over 40%, making it particularly suitable for long stroke and compact equipment layouts.
Precise and smooth movement: The piston and slider are coupled by strong magnetic force in a non-contact manner, running smoothly without jamming, effectively avoiding low-speed crawling, achieving high repeatability positioning accuracy, and meeting the requirements of precision handling and positioning.
Fully sealed dust-proof structure: The cylinder barrel is completely sealed as a whole, without piston rod through holes, completely eliminating the risk of leakage caused by rod seal wear, and effectively preventing dust from entering, extending the service life.
Integrated oriented anti torsion design: The slider part integrates a high rigidity guiding mechanism, which can directly bear radial loads and torques, allowing for the direct installation of actuating components and improving the overall operational stability of the equipment.
Wide range travel selection: Provides a wide range travel configuration from 50mm to 600mm (example model CY1S20-100 has a 100mm travel), allowing for flexible selection of suitable specifications based on specific application needs
Description
Type : Cylinder
Origin : Mainland China
