[Excellent Performance] Provides insulation, mo​isture-​proof, anti leakage, anti vibration, anti aging, and anti-​​​​​​ performance for added durability.
[Strong anti interference] Realize isolation of input, output, power supply, and ​​​​ with excellent anti interference ability and high reliability.
[Conformal Coating Protection] Conformal coating protects circuit boards from environmental erosion.
[Easy Installation] 35Mm standard ​​​​ rail installation allows for easy assembly and disassembly without taking up space.
[sturdy Abs Material] ​​​ abs material ​​​​ ensures high temperature and impact resistance for long-term use.

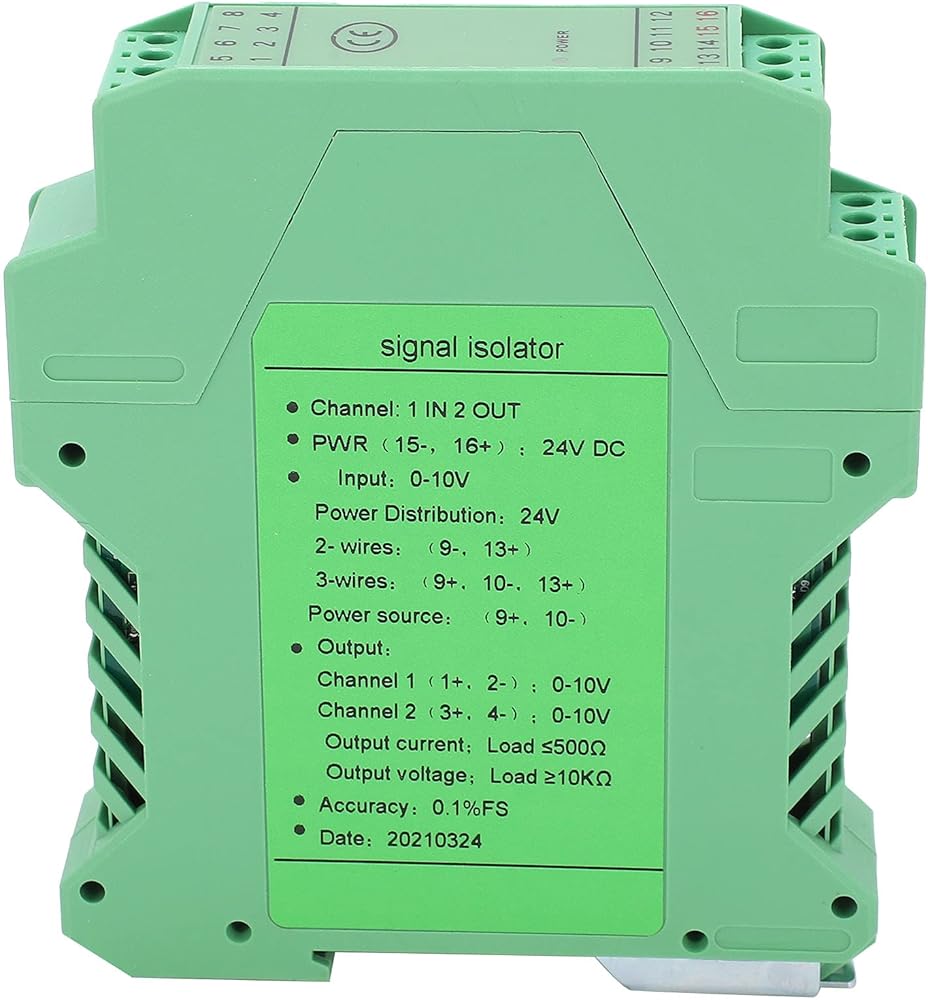

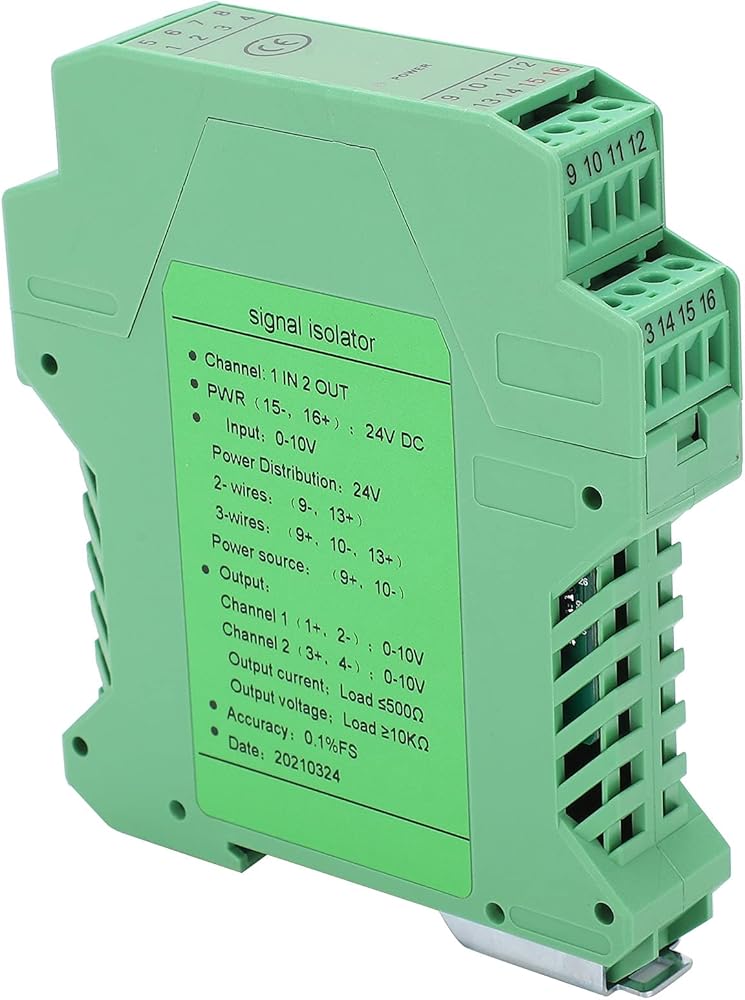

Spec:
Item Type: Signal Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
PWR (15-, 16+): 24V DC
Input: 0-10V
Distribution Voltage: DC 24V
2-Wire System: (9-, 13+)
3-Wire: (9+, 10-, 13+)
Power Supply: (9+, 10-)
Output:
Channel 1 (1+, 2-): 0-10V
Channel 2 (3+, 4-): 0-10V
Output Current: Load≤500Ω
Output Voltage: Load≥10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20-+55℃
Electromagnetic Compatibility: ​​​​ with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: 2-wire, 3-wire transmitter, current source
Product Description:
DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current signal generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, 2-wire system, 3-wire system transmitter General purpose; internal use of high efficiency magnetic isolation technology, isolation between input, output, and power supply, with ​​​​​, high linearity, low temperature drift and other characteristics.

Package List:
1 x Signal Isolator

How To Use:
Installation Method:
1. For 35mm rail installation, please pay attention to the stability and firmness of the
