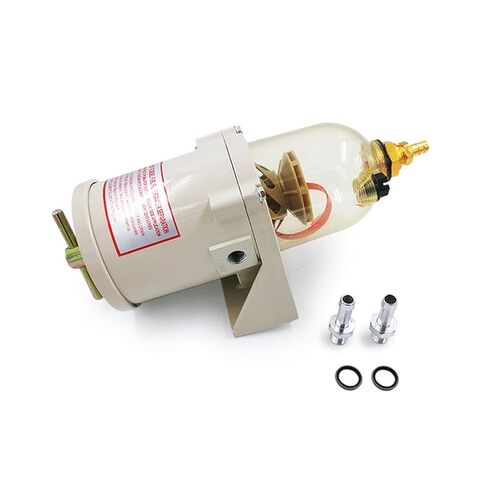

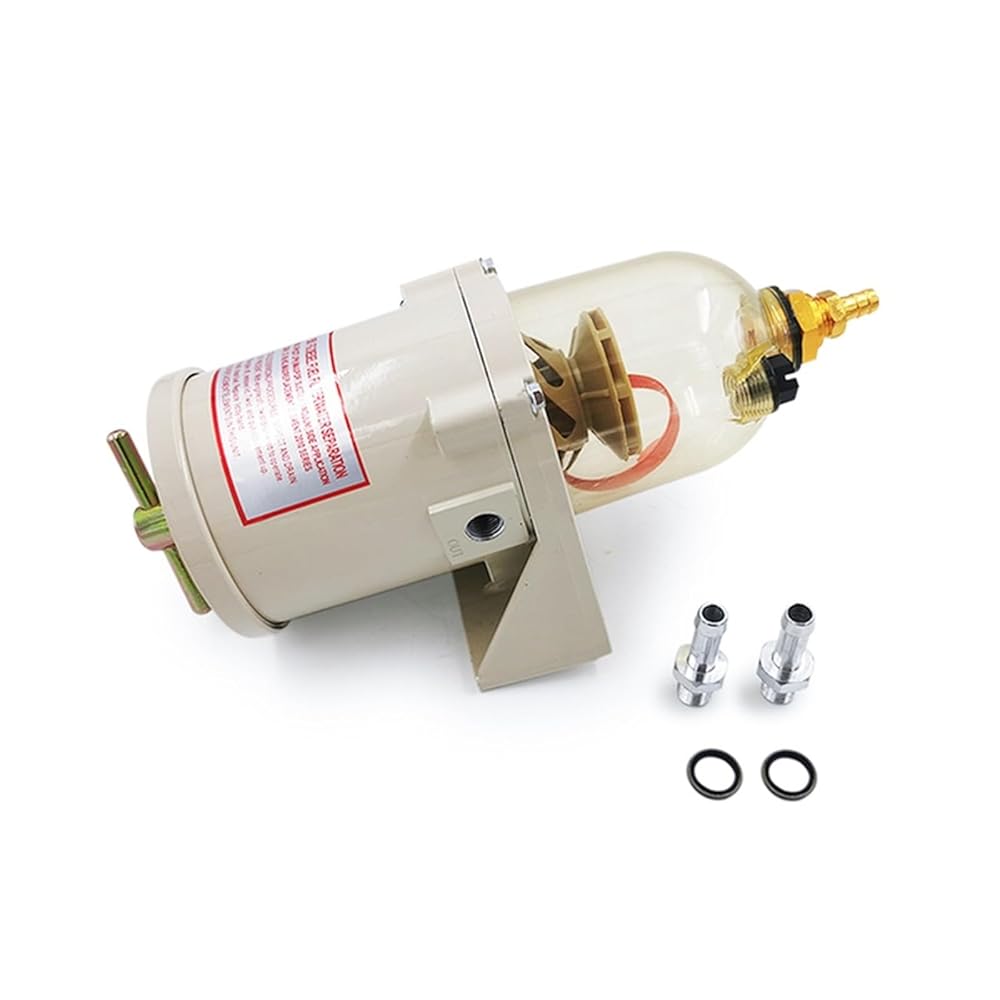

500FG 500FH Fuel Filter Marine Engine Fuel Filter Oil Water Separator Marine Truck 90GPH Suitable for Car Boat
feature:
It mainly plays the role of filtering particles, impurities and water entering the engine fuel system.
It can effectively prevent damage to the expensive high-pressure common rail system.
Reduce engine maintenance costs and extend common rail system life!
Specification:
Name: Fuel filter water separator
Flow rate: 90GPH (340LPH)MA
Model: 500FG, 500FH
Applicable: Trucks, light trucks, large vehicles
Color: Beige
Material: Plastic
Size: 300*110mm
Max Flow Rate: 227 LPH (60 GPH).
Application: .
Port Size (SAE J1927) 3/4"-16 UNF.
Dimensions (H x W x D): 292 mm (11.5 in) x 147 mm (5.8 in) x 122 mm (4.8 in).
Clean pressure drop: 0.25PSI (1.7 kPa).
Maximum pressure: 15PSI (1bar).
Water Capacity: 3.7 oz (109 ml).
Operating temperature: -40°C to +124°C / (-40°F to +255°F).
Package List
TYPE 1/2 includes: 500FG fuel filter + filter element (30 micron) + connector
TYPE 3/4/5/6 includes: 500FG fuel filter + filter element (30 micron) + connector + heating pipe
==========
Other part numbers: 500FG/500FH
Location on the vehicle: Fuel filter
Country/Region of Manufacture: Mainland China
Interchange part number: 500FG/500FH
Special features: fuel filter water separator
Material Type: Cast Iron
Product weight: 2KG
Product height: 120mm
Product length: 298mm
Manufacturer Part Number: 500FG/500FH
OEM No.:500FG/500FH
Origin: Mainland China
