Audio Transformers

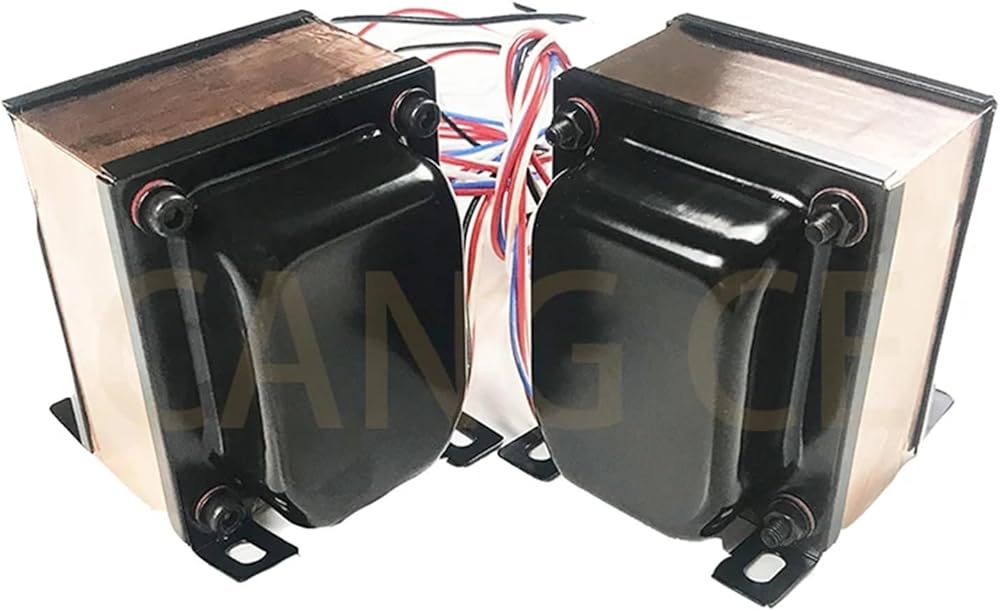

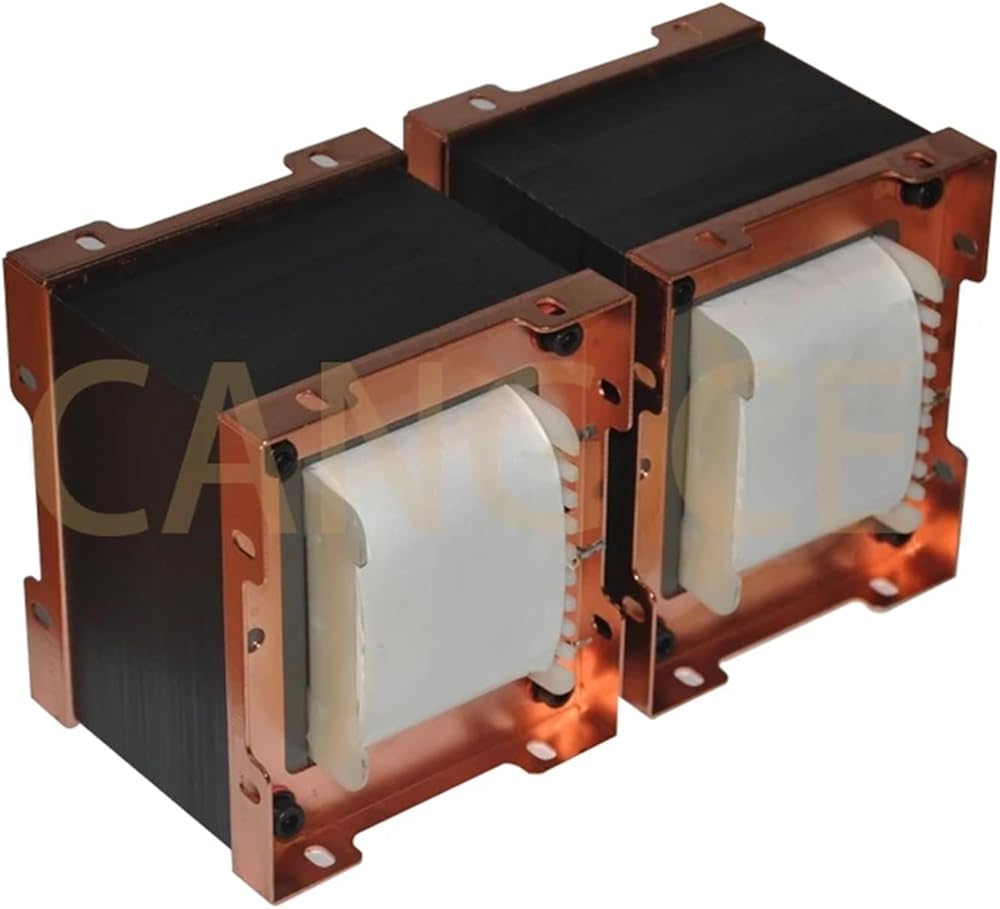

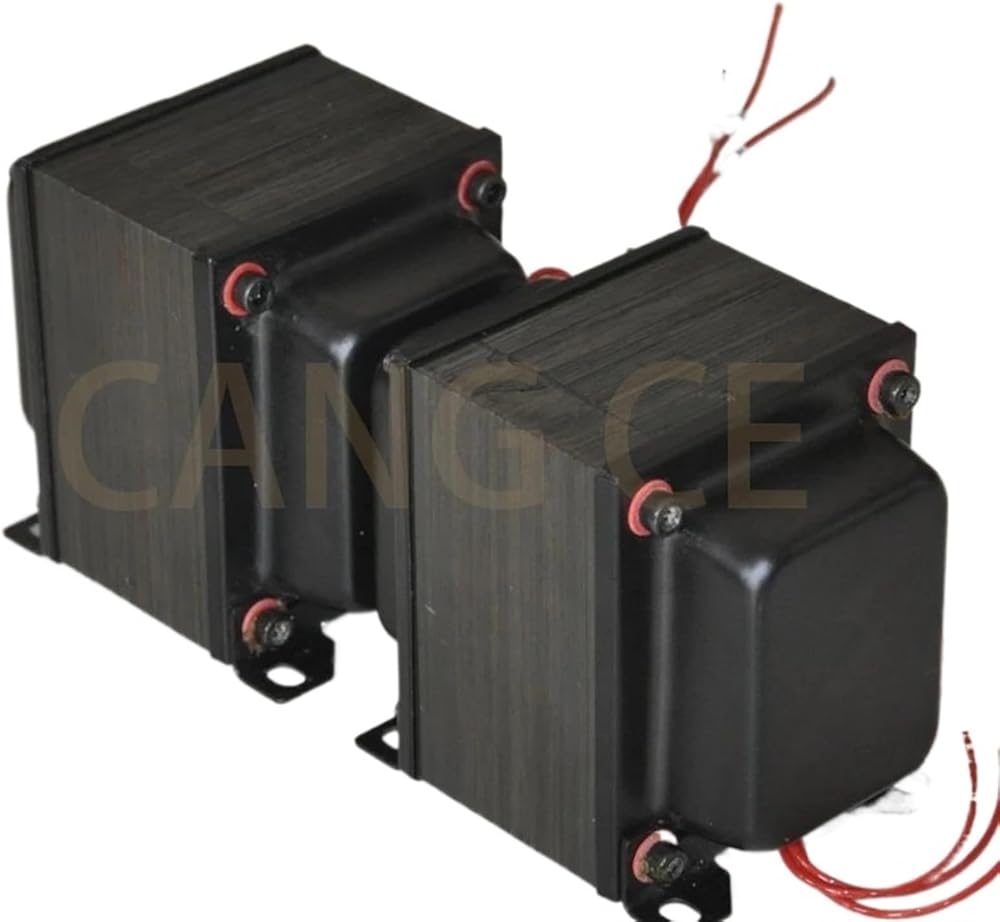

KT170 5K 150W electronic tube Pushpull output KT150 KT120 electronic tube Z9 EI114 iron core can be
The output is committed to using silicon steel sheets, Yida's pure copper enameled wire, precise counting winding and manual assembly, vacuum immersion painting and constant temperature baking paint, ensuring strict testing before shipment. Please rest assured!
5.5K150W Pushpull output is applicable to KT170 KT150 KT12
Model: OPT5.5K PP-150 or 5KPP-150
Core parameters: 114 * 70 (tongue width 38mm) * stack thickness 7Omm
Winding structure: five clips and four clips
Primary impedance: 5000/5500

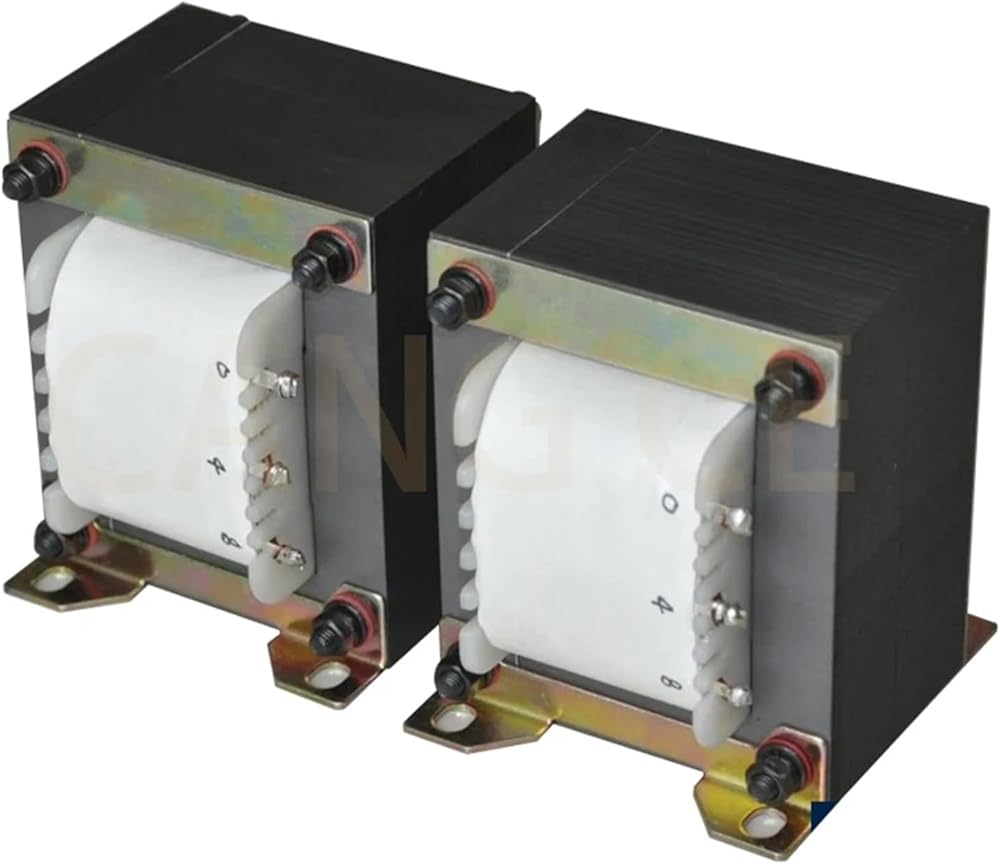

Secondary impedance: 0-4-8
Power: rated 150w
Primary maximum overcurrent: 270mA
Primary DC resistance: P-P: 145ohm, pairing error within 1 ohm
Secondary DC resistance: 0-4-8 : 0.19+0.08Q
Primary inductance: 45-100H, different materials have different inductance values, and pairing error is within 1H
Leakage inductance: 7.5mH
Interstage capacitance: 7.2nf
Frequency response: 15HZ-45KHZ (-0.5dB) 8HZ-55KHZ (-1dB)
==========
Package : Yes
Channels : 2 (2.0)
Model Number : KT170
Maximum Power Per : 131-200W
Origin :
