محرك التبريد التبخيري، 115 فولت، تلقائي، كروي in Saudi Arabia

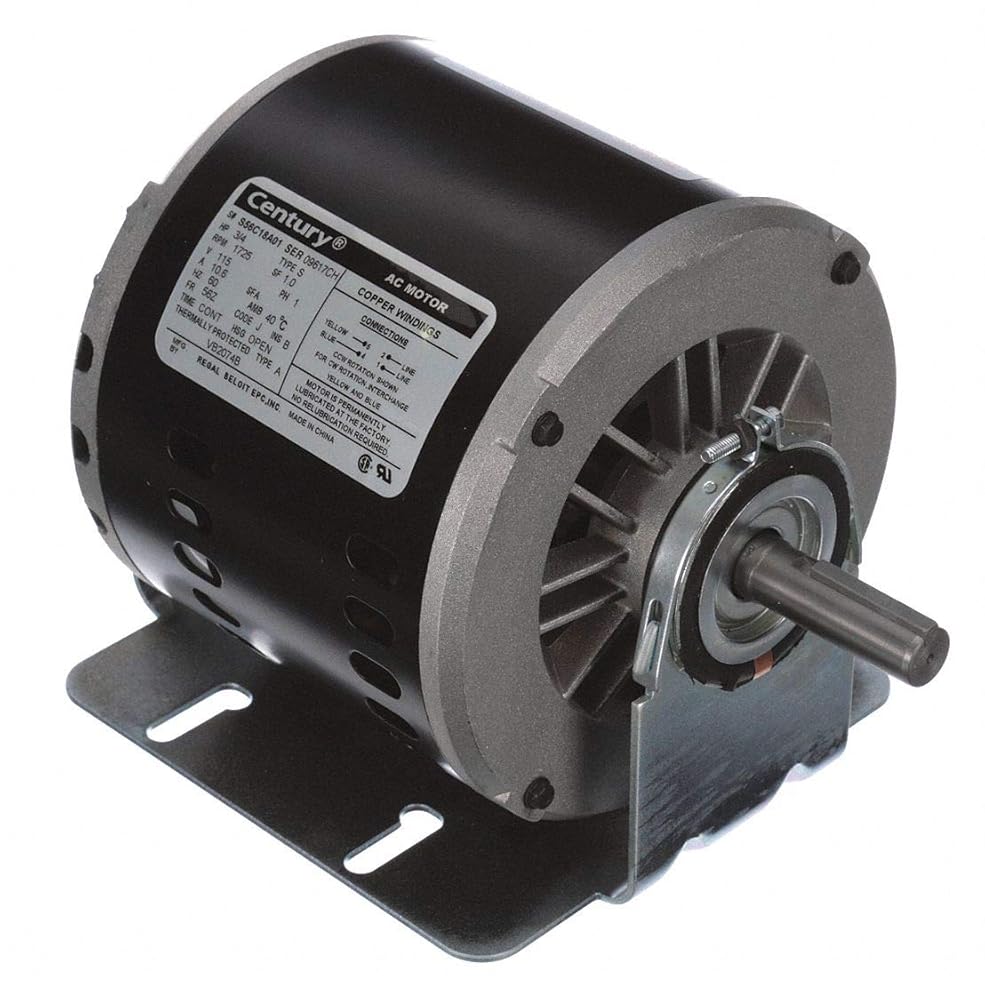

Evaporative Cooler Motor, 115V, Auto, Ball

SAR 627
ماركة
Century
وزن
1 g
– 1 +

مميزات خاصة

  • Price For: Each Hz: 60 Motor Service Factor: 1.00 Motor Bearings: Ball Standards: UL, CSA Motor Enclosure Design: Open Dripproof Ring Dia.: 2-1/2" Resilient Ring Dia.: 2-1/2" Ins. Class: B Phase: 1 Max. Ambient Temp.: 40 Degrees C Length Less Shaft: 7-15/16" Motor Sub Application: Evaporator Cooler Motor Application: HVAC/R Ring to Ring Center: 7-7/16"
  • Ambient Temperature: 40C Item: Evaporative Cooler Motor Motor Thermal Protection: Auto Motor Design: Split-Phase Motor Mounting Type: Cradle Base No. of Speeds: 1 Shaft Dia.: 5/8" Frame: 56 Voltage: 115 Shaft Length: 1-7/8" Overall Length: 9-13/16" Nameplate RPM: 1725 HP: 3/4 Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Full Load Amps: 10.6
  • Motor Shaft Rotation: CW/CCW Country of Origin (subject to change): China

وصف

' Evaporative Cooler Motor, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof, HP 3/4, Nameplate RPM 1725, 56 Frame, Voltage 115, 60 Hz, 1 Phase, 10.6 Full Load Amps, Motor Mounting Type Cradle Base, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.00, Motor Bearings Ball, Ambient Temperature 40C, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Length Less Shaft 7-15/16 In., Overall Length 9-13/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In. '
