M12 4mm Sensing DC 6-36V NPN PNP NO NC LJ12A3-4-Z/BX by AX AY Cylinder Inductive Proximity Sensor Switch, 1pc(by PNP NO) in Saudi Arabia M12 4mm Sensing DC 6-36V NPN PNP NO NC LJ12A3-4-Z/BX by AX AY Cylinder Inductive Proximity Sensor Switch, 1pc(by PNP NO) in Saudi Arabia

AY PNP NC

SAR 118
Brand
LOXNVUY
Weight
202 g
ColorAY PNP NC
– 1 +

Special Features

  • 【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
  • 【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
  • 【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
  • 【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
  • 【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

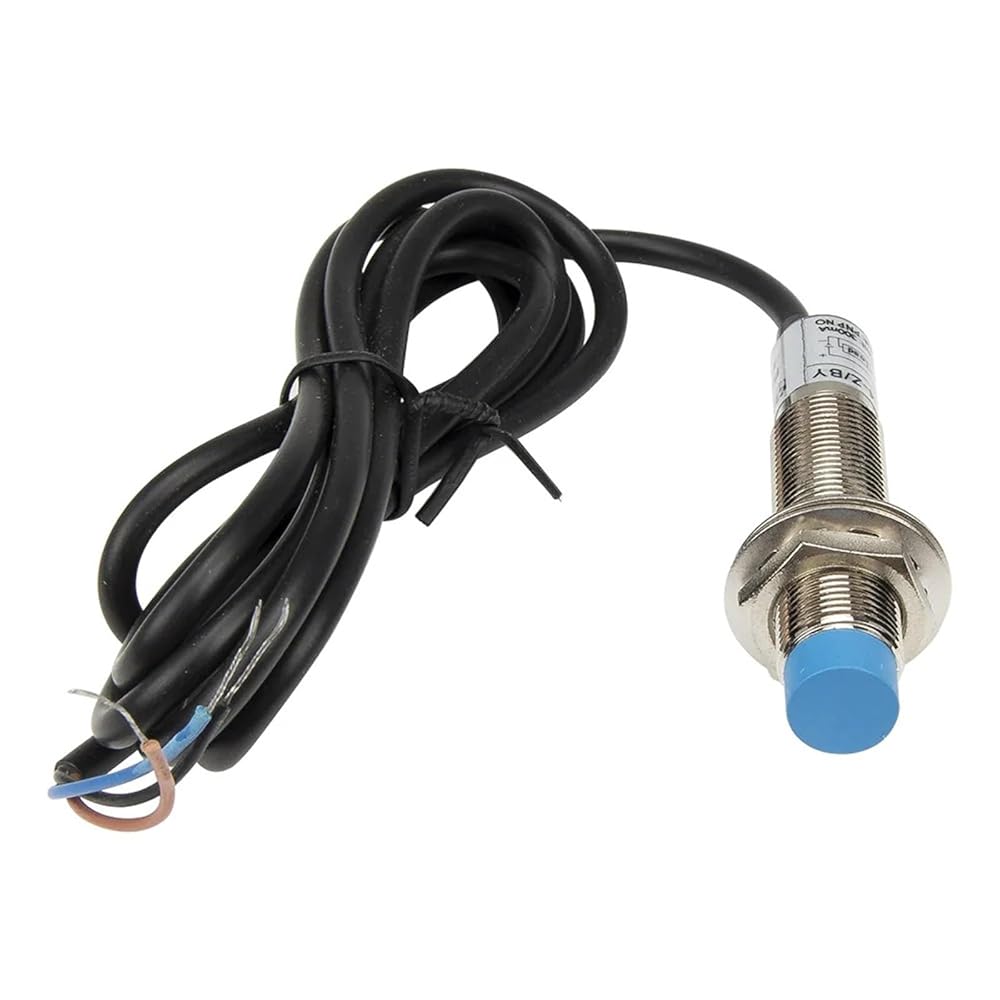

M12 4mm Sensing DC 6-36V NPN PNP NO NC LJ12A3-4-Z/BX BY AX AY Cylinder Inductive Proximity Sensor Switch, 1pc
Model number:LJ12A3-4 series
External dimensions:M12x1x60
Installation type:Non-shielded
Detection distance:4mm
Setting distance:0-3.2 mm
Supply voltage:6-36Vdc, 5Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current
DC type: 300mA max; AC Type: 400mA
Standard detected object
Mild steel (12x12x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency:500Hz
Matched mounting bracket:M12 mounting bracket
Matched mounting connector
Only for connector type: 3 wires bend connector,3 wires straight connector
Output indication:Red LED
Short-circuit protection:No
Reverse connection protection:Yes
Insulation resistance:50M min (between charging part and housing)
Dielectric strength:1000Vac, 1min (between charging part and housing)
IP Rating:IP65
Operating temperature:-25 to 70 °C (13 to 158 °F)
Cable length:1.2m, PVC cable
Material
Case: Brass-nickel plated; Sensing surface: ABS
Alias name:LJ12A3-4 series cylinder inductive proximity switches
Model Number : LJ12A3-4-Z/BX LJ12A3-4-Z/AX LJ12A3-4-Z/BY LJ12A3-4-Z/AY
