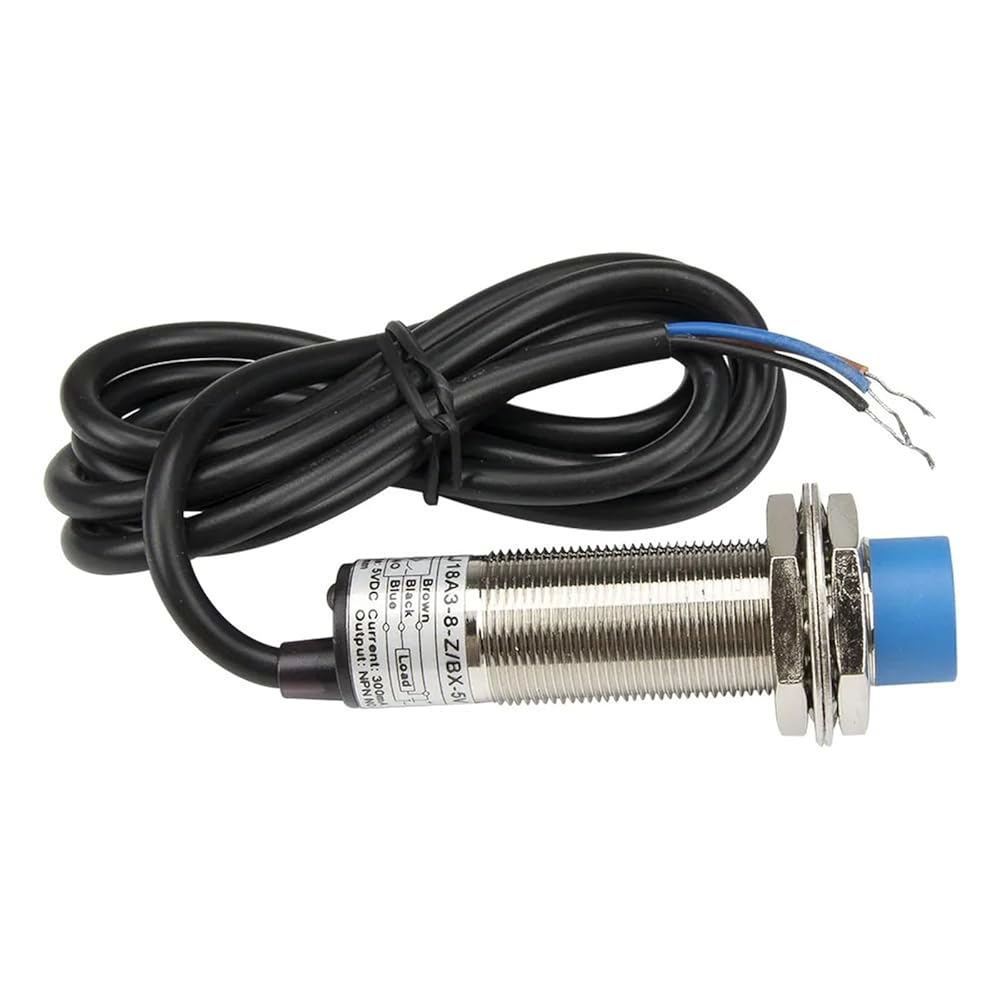

M18 Cylinder Proximity Sensor Switch, 8mm Sensing DC 5V NPN PNP NO NC LJ18A3-8-Z, Work Voltage 5VDC for MCU, 1pc(AX NPN NC) in Saudi Arabia

M18 Cylinder Proximity Sensor Switch, 8mm Sensing DC 5V NPN PNP NO NC LJ18A3-8-Z, Work Voltage 5VDC for MCU, 1pc(AX NPN NC)

SAR 132
Brand
LOXNVUY
Weight
202 g
ColorAX NPN NC
– 1 +

Special Features

  • 【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
  • 【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
  • 【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
  • 【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
  • 【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

M18 Cylinder Proximity Sensor Switch, 8mm Sensing DC 5V NPN PNP NO NC LJ18A3-8-Z, Work Voltage 5VDC for MCU, 1pc
Model number:LJ18A3-8 series
External dimensions:M18x1x68
Installation type:Non-shielded
Detection distance:8mm, 15mm, 20mm
Setting distance:6.4 mm
Supply voltage:6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz
Output current
DC type: 300mA max; AC Type: 400mA
Standard detected object
Mild steel (18x18x1mm)
Sensing object
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency:500Hz
Matched mounting bracket:M18 90° bending mounting bracket,M18 straight mounting bracket
Output indication:Red LED
Short-circuit protection:No
Reverse connection protection:Yes
Insulation resistance:50M min (between charging part and housing)
Dielectric strength:1000Vac, 1min (between charging part and housing)
IP Rating:IP65
Operating temperature:-25 to 70 °C (13 to 158 °F)
Cable length:1.2m, PVC cable
Material:Case: Brass-nickel plated; Sensing surface: ABS
Alias name:LJ18A3-8 series cylinder inductive proximity switches
Model Number : LJ18A3-8-Z/BX-5V LJ18A3-8-Z/AX-5V LJ18A3-8-Z/BY-5V
