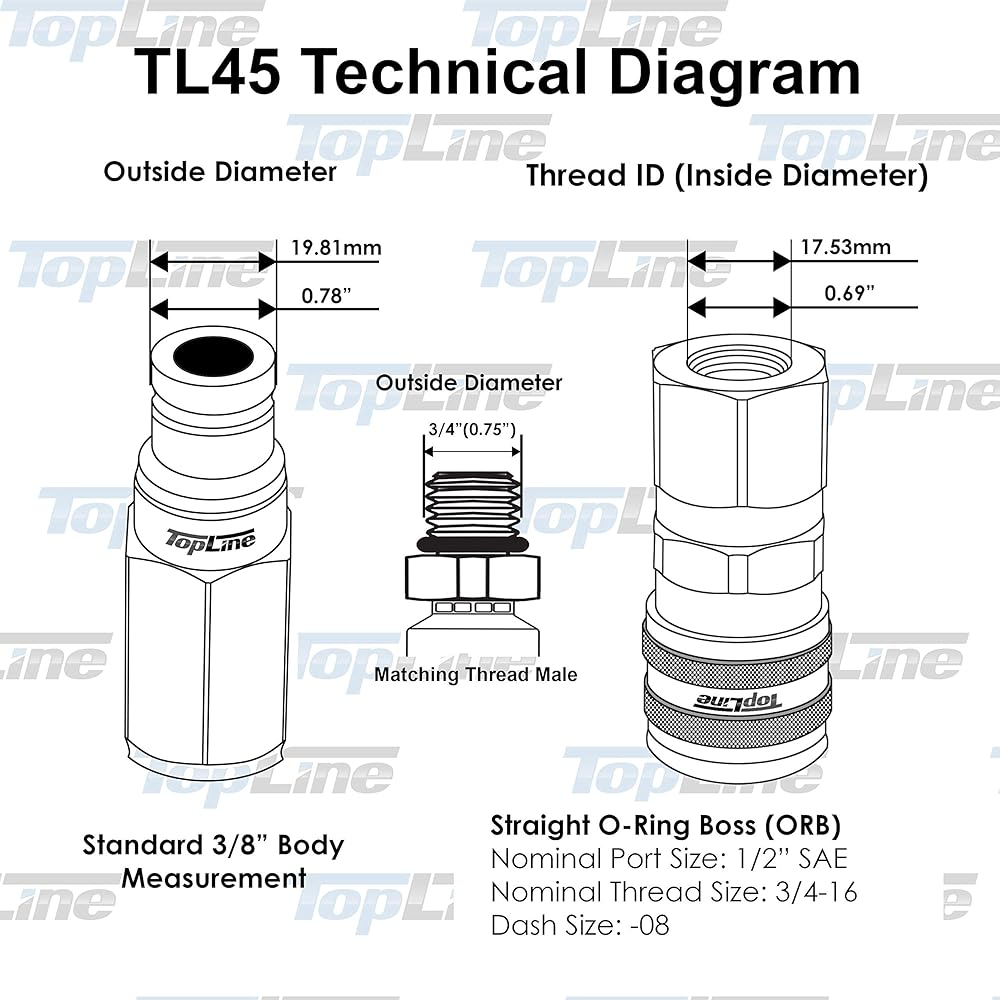

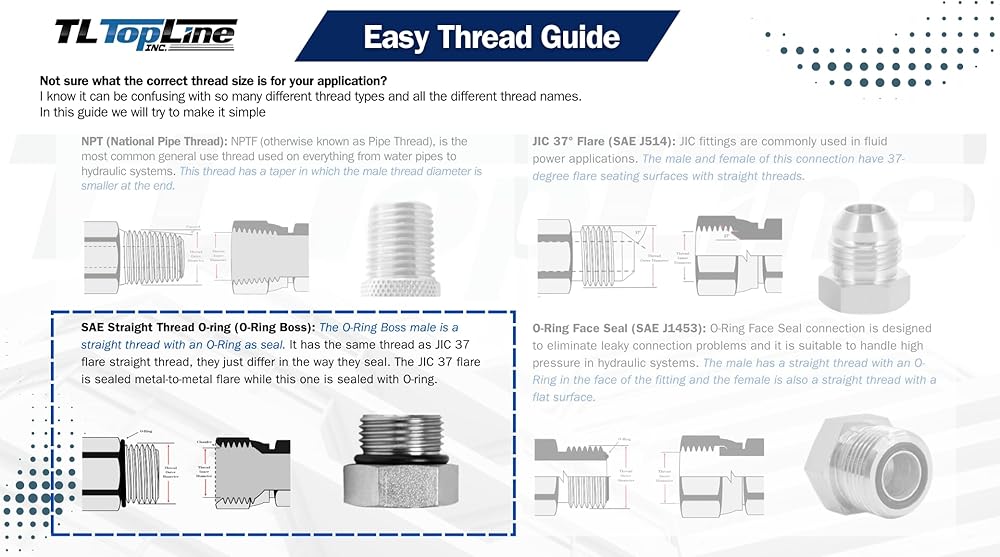

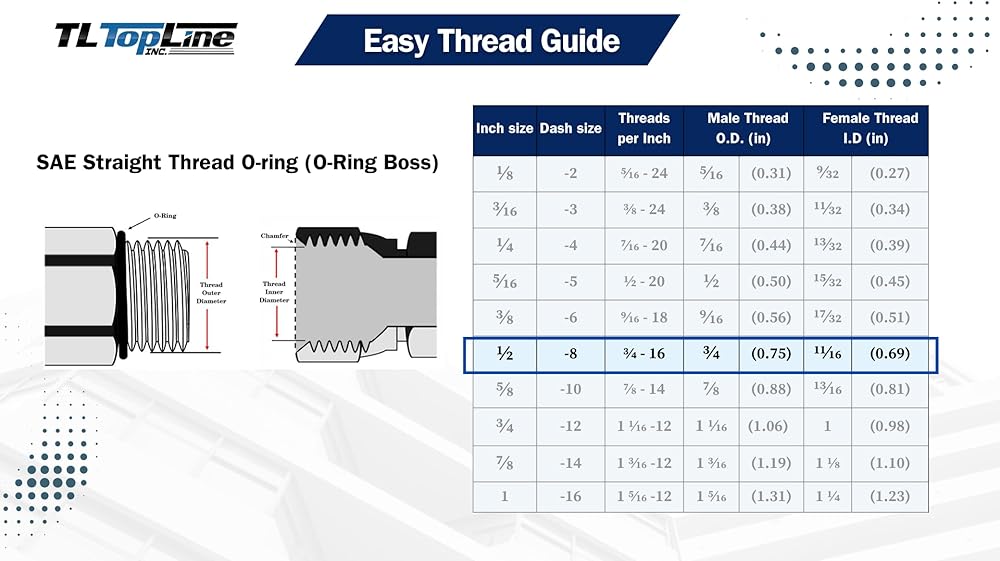

These couplers are for attachments with 3/8” pipe thread only. If a different size is needed, take a look at the application chart or feel free to ask, we would be glad to help

These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.

Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.

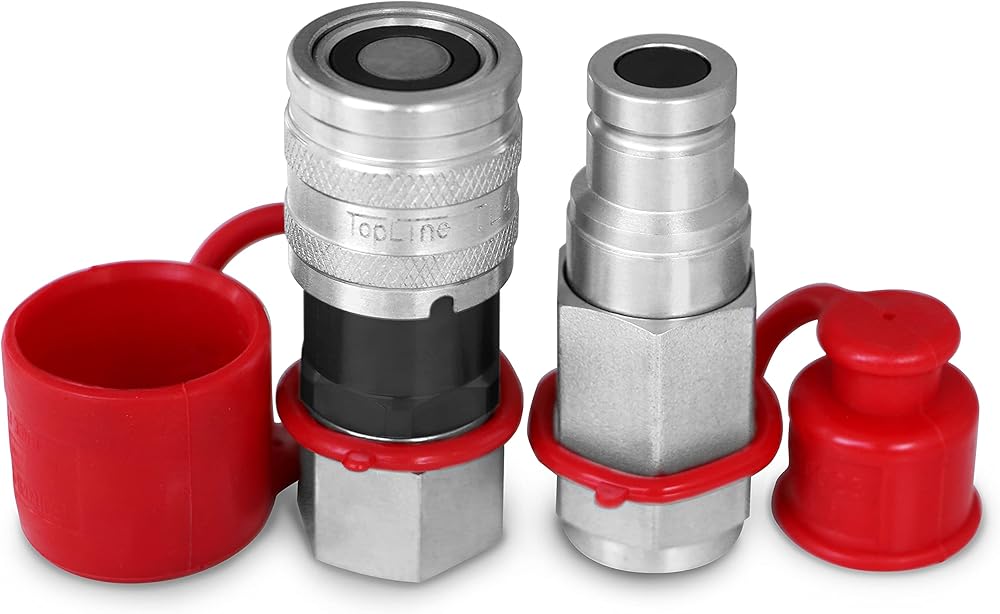

Flat Face couplers are designed for applications where hydraulic spillage is a concern.

- Heavy Duty design. Rated at over 5076 PSI
- Couples to any standard 1/4” Flat Face coupler
- Push-connect locking sleeve design
- Exceeds ISO 16028 standards
- Corrosion-resistant zinc plating
- No air inclusion during disconnection
-Heavy knurled sleeves for non-slip grip

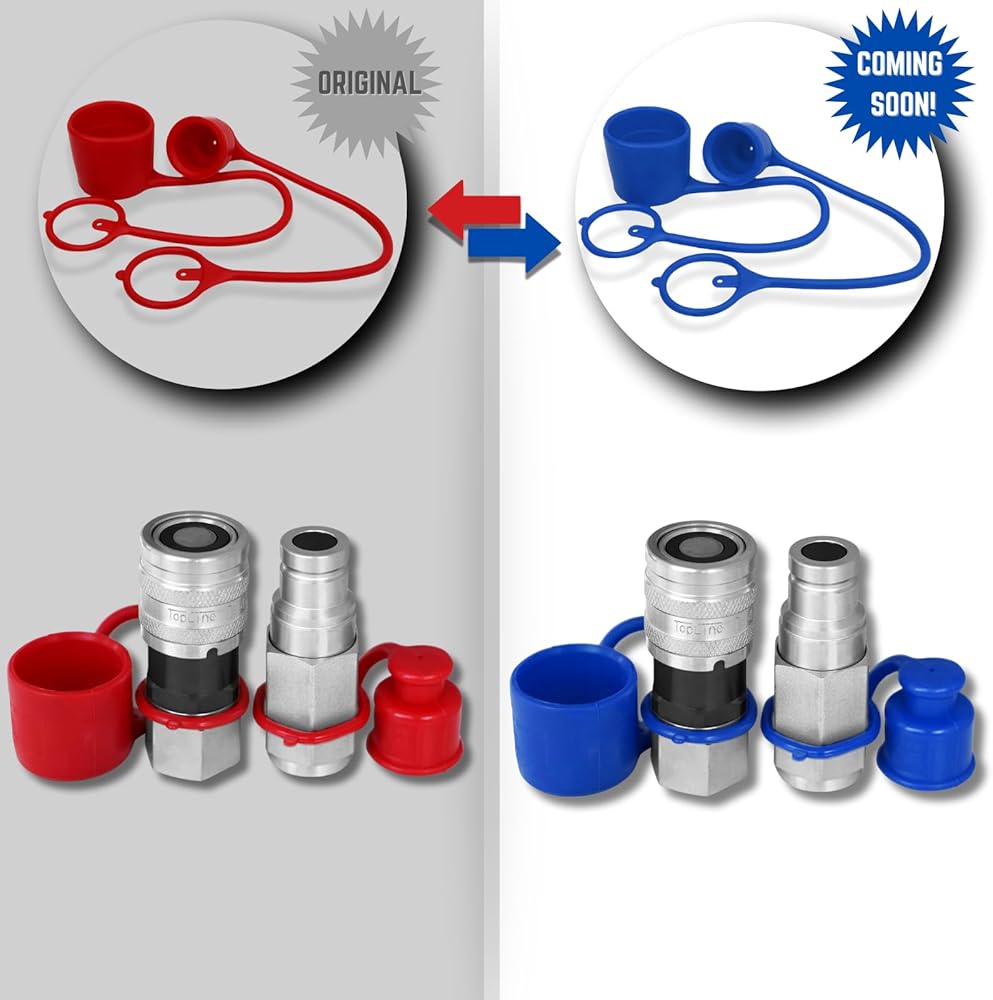

- Includes dust caps to protect from the elements
- Flat Face coupler design minimizes hydraulic fluid loss

INTERCHANGEABLE PART NUMBERS: Faster FFH Series - Male: FFH06 12SAE M Female: FFH06 12SAE F
Eaton Aeroquip FD89 - Male: FD89-1004-08-06 Female: FD89-1005-08-06
Snap Tite 74 Series - Male: 74N6-8EF Female: 74C6-8EF
Stucchi FIRG Series - Male: 801304007 Female: 801304008
Dixon HT Series - Male: HT3OF4 Female: 3HTOF4
DNP PLT4 Series - Male: FF-HPG-06-08N-SAE Female: FF-HPG-06-08C-SAE
Holmbury - Male: HQ10-M-08S Female: HQ10-F-08S
