Miniature Cylindrical Connectors

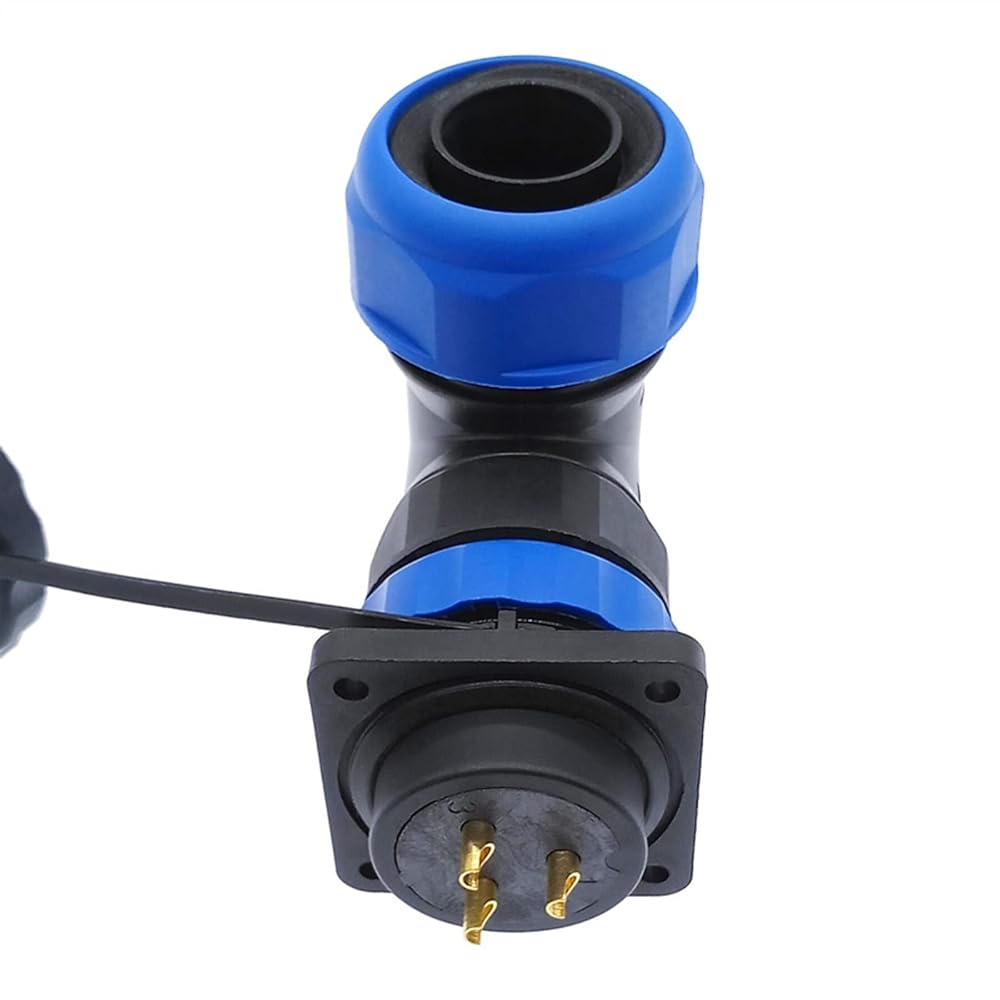

SP28 Corrugated Pipe IP68 Connector Angle Connectors 90 Degree Elbow 1Pcs
Specification parameter
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 12.0~15.0mm
Mechanical life: more than 500 times
