DYXZ-02

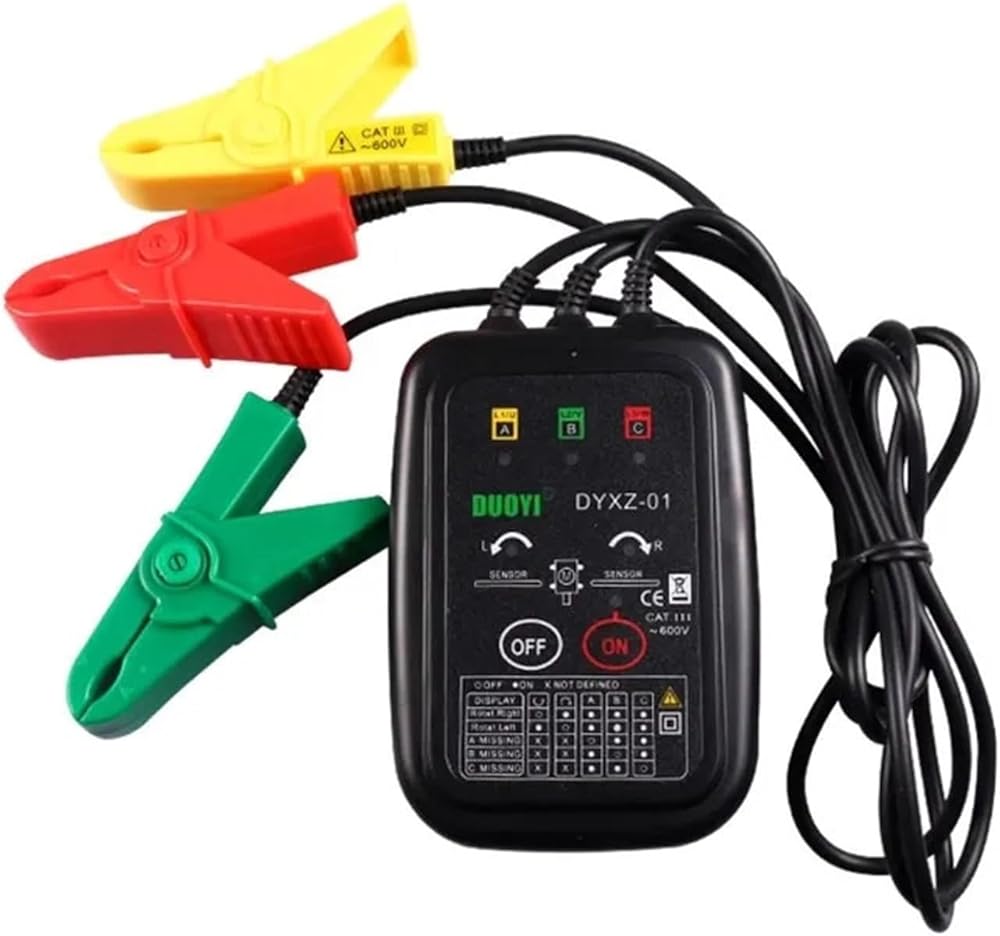

DYXZ-01
Technical Parameters
Product functions: normal phase, reverse phase, live line inspection, simple line inspection, line maintenance
Voltage range: AC70v-600V, 50-60Hz (sine wave continuous input)
Frequency range: 50Hz~60Hz
Clampable wire: Insulated wire with outer diameter 17mm (equivalent to wire cross-sectional area 100mm2)
display:
Phase sequence and active line, phase loss detection
Positive phase: R light is on
Reverse phase: L light is on
Live electricity: The corresponding ABC phase indicator lights up within the voltage setting range
Phase loss: The corresponding ABC phase indicator light does not light up within the voltage setting range
Motor steering (DYXZ-01 only):
Place the instrument according to the direction of the instrument motor symbol.
The motor rotates clockwise: the R light lights up
The motor rotates counterclockwise: the L light lights up
Dielectric strength: 5.4k Vrms
shutdown: shutdown after about 5 minutes of no
Power indicator light: After powering on, the power indicator light is on
Working wet temperature: -10-55, below 80%PH
Storage humidity temperature: -20-60, below 90%PH
Measuring high voltage: Ac60ov
Maximum rated power: 300mVA
Current: 1.5V battery (5#)*2
Size:10mm*70mm*30mm
Weight:150g
