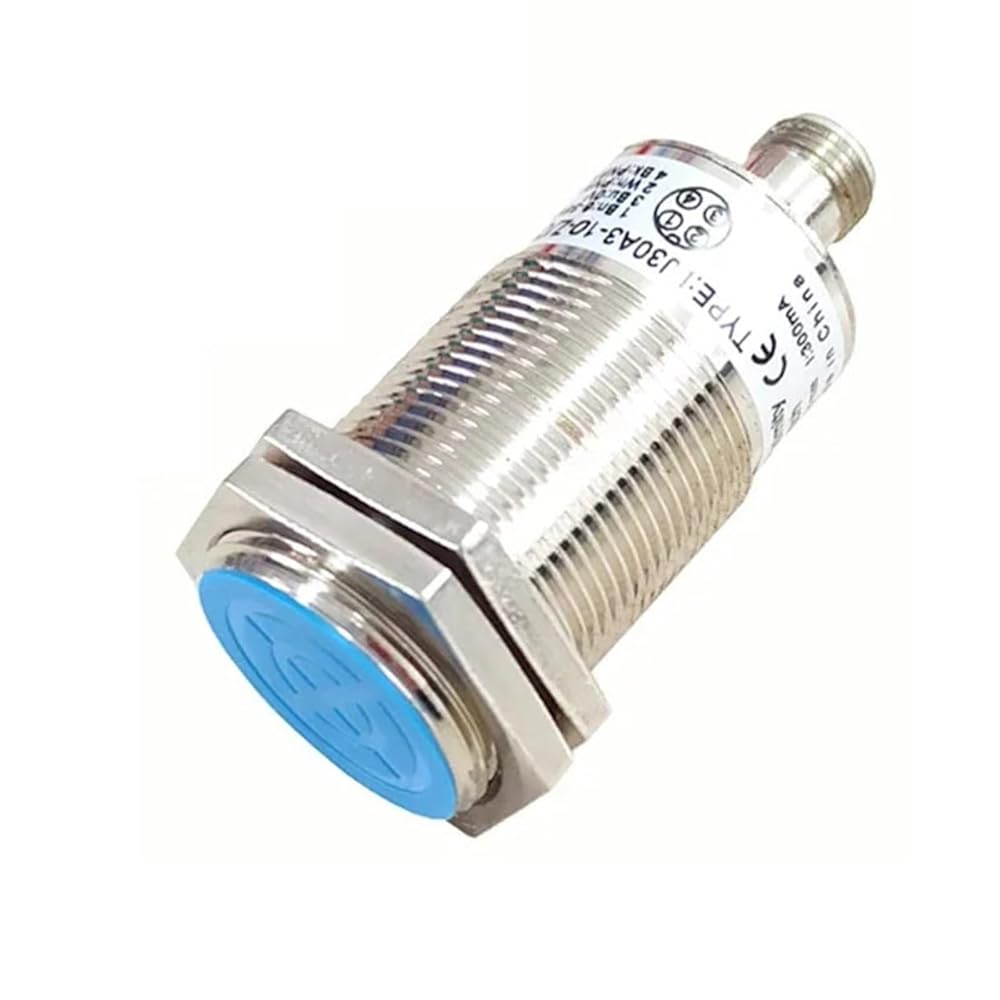

Air Plug Proximity Switch LM30, 10mm / 15mm DC 6-36VDC NPN PNP NO NC Proximity Sensor With Aviation Plug, 1pc
Features:
1) Compact volume, Diversified exterior
2) High precision of repeated location
3) Good performance of anti-interference
4) High on-off frequency, Wide voltage range
5) Dust proof, vibration proof, water proof and oil proof
6) With short-circuit protection and inverted connecting protection
Current : 200 mA
Material : Stainless steel
Switch Type : Proximity Switch
Model Number : LM30 / LJ30
Features : Inductive type proximity sensor
Item Type : SWITCHES
Output voltage dropDC/AC : DC less than 2V DC(Two wire system) less than 3.9V, AC less than 10V
Consumption current : DC less than 15mA , AC less than10mA
Standard detected object : 30*30*1(A3 iron)
Repeated precision : 0.5
DC/AC Response frequency : 200Hz / 10Hz
Working environment temperature : -25C to 75C
Insulation resistance : more than 50Mohm
Shell material : Metal
Protection grade : IEC standard IP67
