Capacitive Proximity Switch CM18 LJC18 8mm, DC6-36V NPN PNP NO NC NO+ Capacity Sensor, 1pc(PNP,NO) in Saudi Arabia Capacitive Proximity Switch CM18 LJC18 8mm, DC6-36V NPN PNP NO NC NO+ Capacity Sensor, 1pc(PNP,NO) in Saudi Arabia

Sn distance 0-8mm DC 2-wire NO NC

SAR 187
Brand
LOXNVUY
Weight
301 g
ColorSn distance 0-8mm
SizeDC 2-wire
StyleNO NC
– 1 +

Special Features

  • 【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
  • 【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
  • 【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
  • 【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
  • 【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

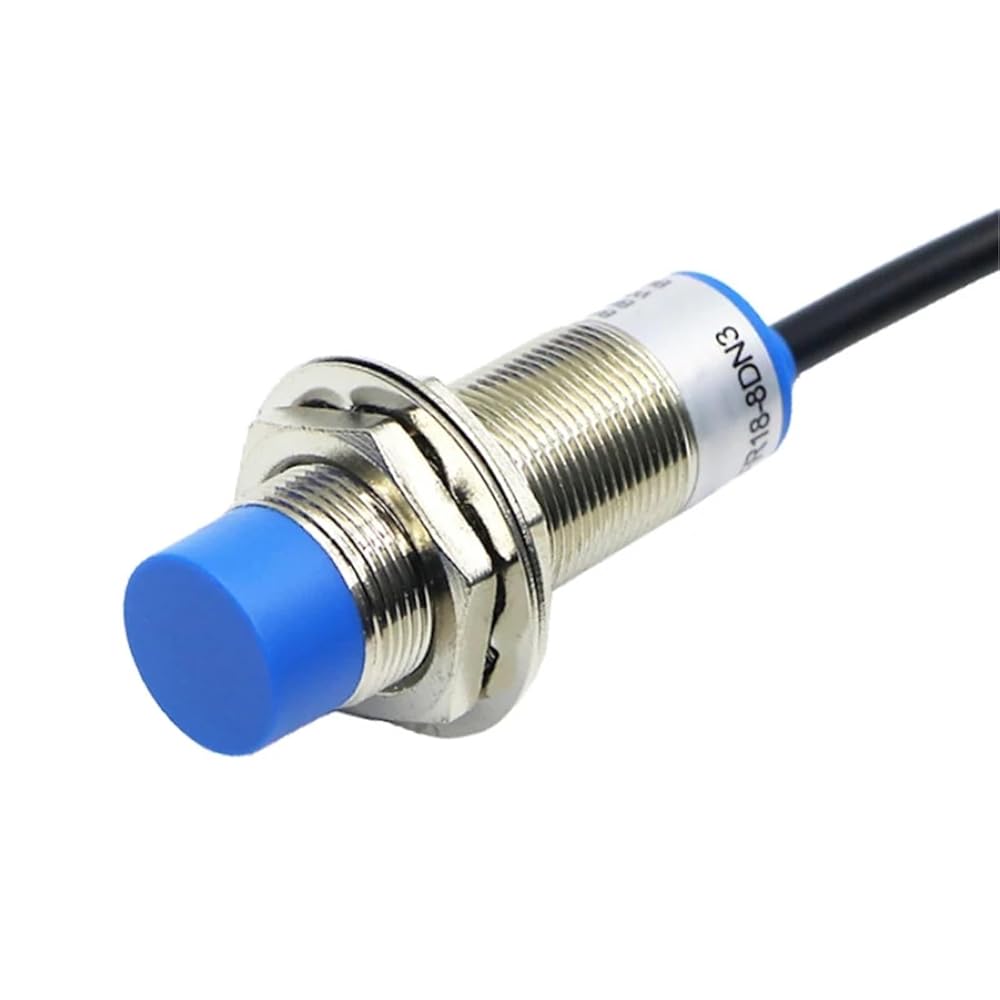

Capacitive Proximity Switch CM18 LJC18 8mm, DC6-36V NPN PNP NO NC NO+NC Capacity Proximity Sensor, 1pc
Current : 200 mA
Material : Stainless steel
Switch Type : Proximity Switch
Model Number : CM18 / LJC18
Features : Capacitive type proximity sensor
Item Type : SWITCHES
Detectable object : Conductor and dielectric body
Consumption current : DC less than 15mA, AC less than 10mA
Output current : DC:200MA AC:300MA
Output voltage drop : DC less than 3V, AC less than 7V
DC/AC Response frequency : DC:50HZ AC:10HZ
Working environment temperature : -25C to 75C
Insulation resistance : 50Mohm
Protection grade : IEC standard IP67
