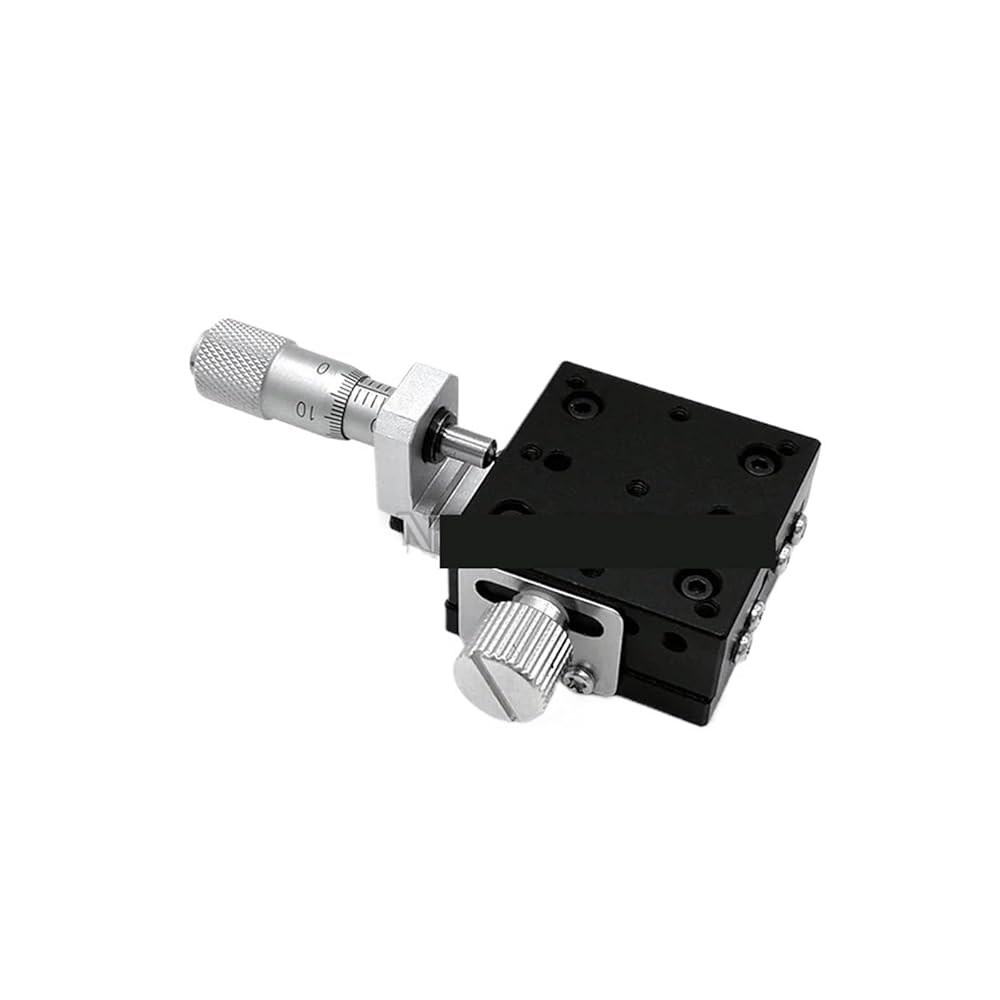

Linear Motion Guide Actuators
feature:
1. The use of mobile cross roller guide rails can achieve high precision and stability
2. The main body is made of aluminum alloy, which is light and suitable for building other equipment
scope:
1. Movement direction: X-axis direction
2. Body material: aluminum
3. Drive: Differential head
4. Table size: 30x30mm
5. Table thickness: 15mm
6. Stroke: ±3mm
7. Load: 14.7N (1.5kgf)
8.Minimum graduation: 0.01mm
9. Parallel movement: 0.005mm/6mm
10. Parallelism: 0.02mm
11. Weight: 0.06kg
