Pulse Generators
Specification:
Condition:
Item Type: Handwheel
Material: Plastic
Color: As the Picture Shown
Encoder Specification:
Power Supply Voltage: ±10%
Pulse Number: 100PPR
Output Voltage (VH) (Maximum): 3.8V
Output Voltage (VL) (Minimum): 0.3V
Output Current: 80mA
Model Format: A.B.A-.B-
Output Resistance: DIFF
Response Speed: KHz
Current Consumption: 0mA
Starting (Maximum): 10g
Axial Volume (minimum): R 2kg±10%
Rotation Life (minimum): 1KKR
Operating Temperature: 0/+0
Storage Temperature: -10/+70
Operating Humidity: 3-80%
Vibration Resistance: 0.G
Heavy Strike Resistance: 2G
Wiring Table Specification:

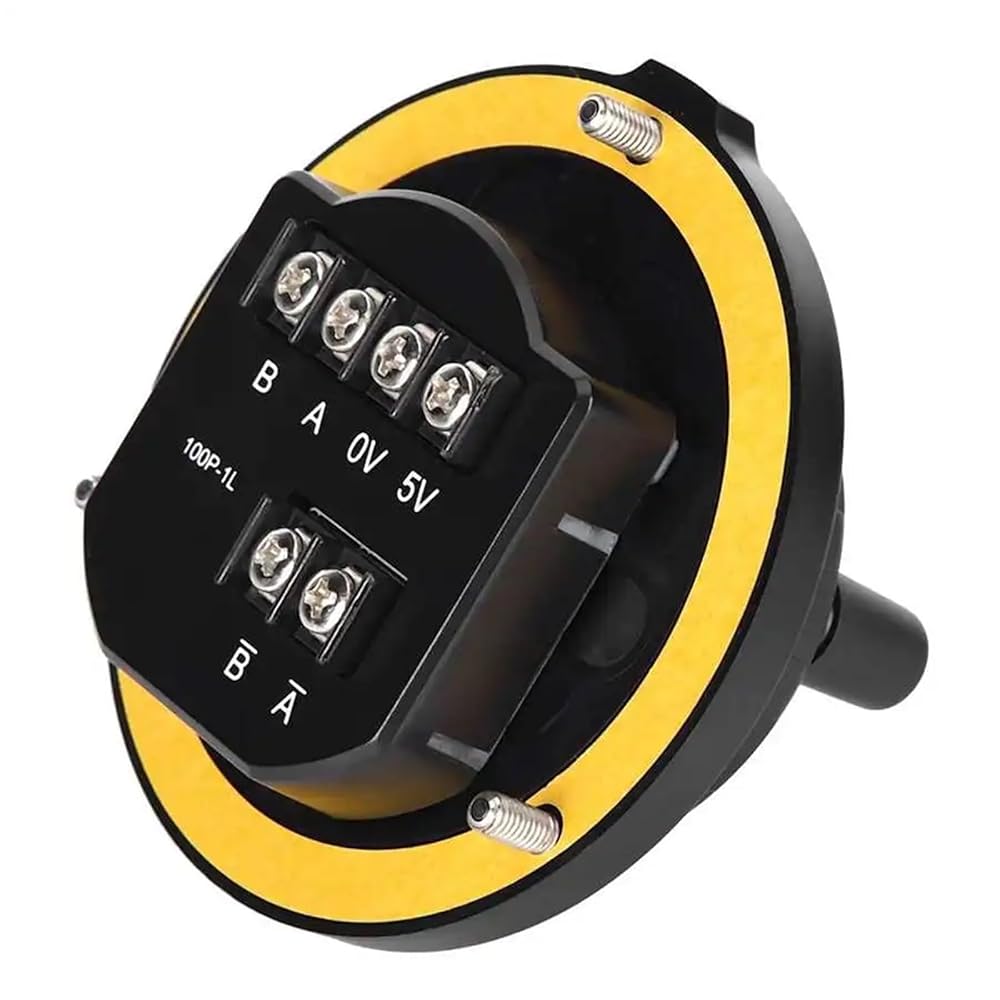

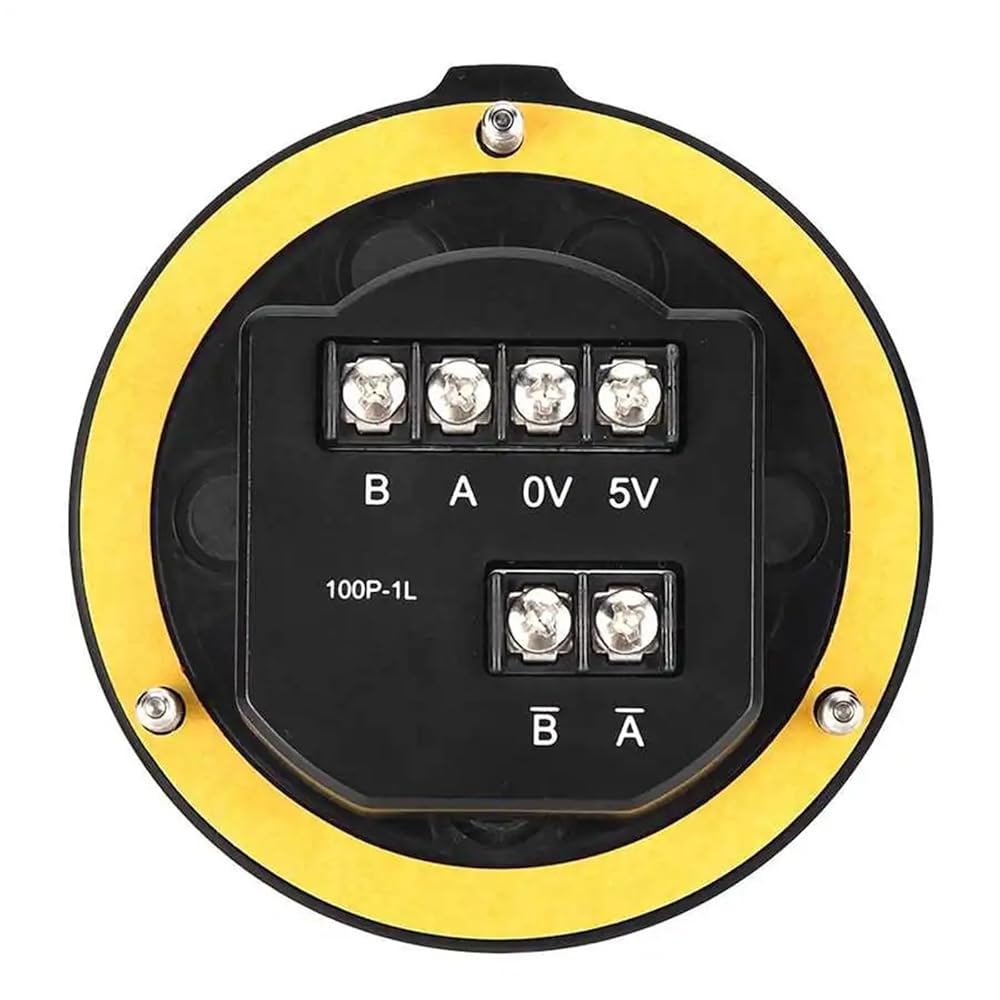

Output : A B V0 V+ A- B-
Terminal-Line Driver A: 1 2 3 4 6
==========
Hign-concerned Chemical : None
Style : Solid
Model Number : Handwheel
Material : Plastic
Feature 1 : Manual Pulse Generator
Feature 2 : CNC Pulse Encoder
Item Type : Handwheel
Material : Plastic
