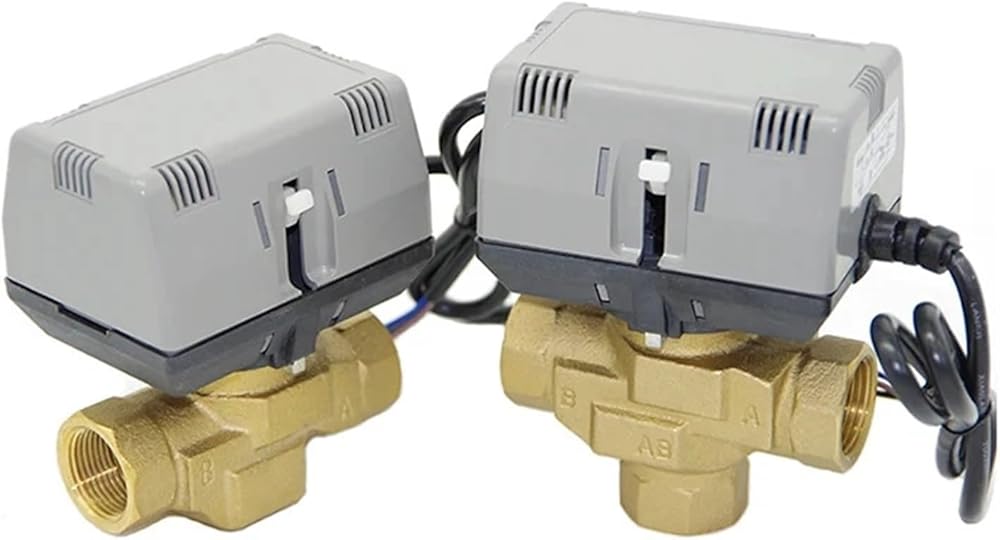

Globe Valves
Actuator part:
Control method: switch type
Voltage: 220Vac (±10%)
Power: 6 watts under normal voltage (only generated when the valve is actuated)
Action time: 6 seconds (at 60Hz)
Cable connection: 0.5m cable included
Valve body part:
Applicable medium: hot and cold water, ethylene glycol solution with a mass concentration of not more than 50%
Liquid temperature range: 1~95 (34°F~203°F)
Working temperature: 0~65 (32°F~150°F)
Transportation and storage temperature: 0~65 (32°F~150°F)
Nominal pressure: 16Bar
Material: Brass (forged)
Stem: stainless steel
==========
Actuator Mode : With Manual And Instruction
Structure : control
Port Size : DN15(1/2"), DN20(3/4"), DN25(1")
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Standard or Nonstandard : Standard
Pressure : Low Pressure
Model Number : Motorized Valve
Power Source : AC
