Sensor Blocks
Input Range :
8mm Hole : AC/DC 0-100A
12mm Hole : AC/DC 0-200A
If your measurement Current exceed 200A. Please contact me and we can do the 15mm hole for your demand.
Before Purchase, Please confirme those :
1. Input Current ? AC/DC ?
2. Output Signal ?
3. Supply Power? We default Supply DC24V. If you need other Power Voltage. Please contact me advance.
4. How many quantity? We have some discount if you purchase many .
Thanks for your cooperation.
Introduction
. Working principle: open loop direct measurement.
.Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
.The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
.Full channel configuration,Parameter customizable.
==========
Battery Included : No
High-concerned chemical : None
Dimensions : 35mm
Operating Temperature : -10~+70 Celsius
Supply Voltage : DC12V,DC24V
Accuracy Class : 1%

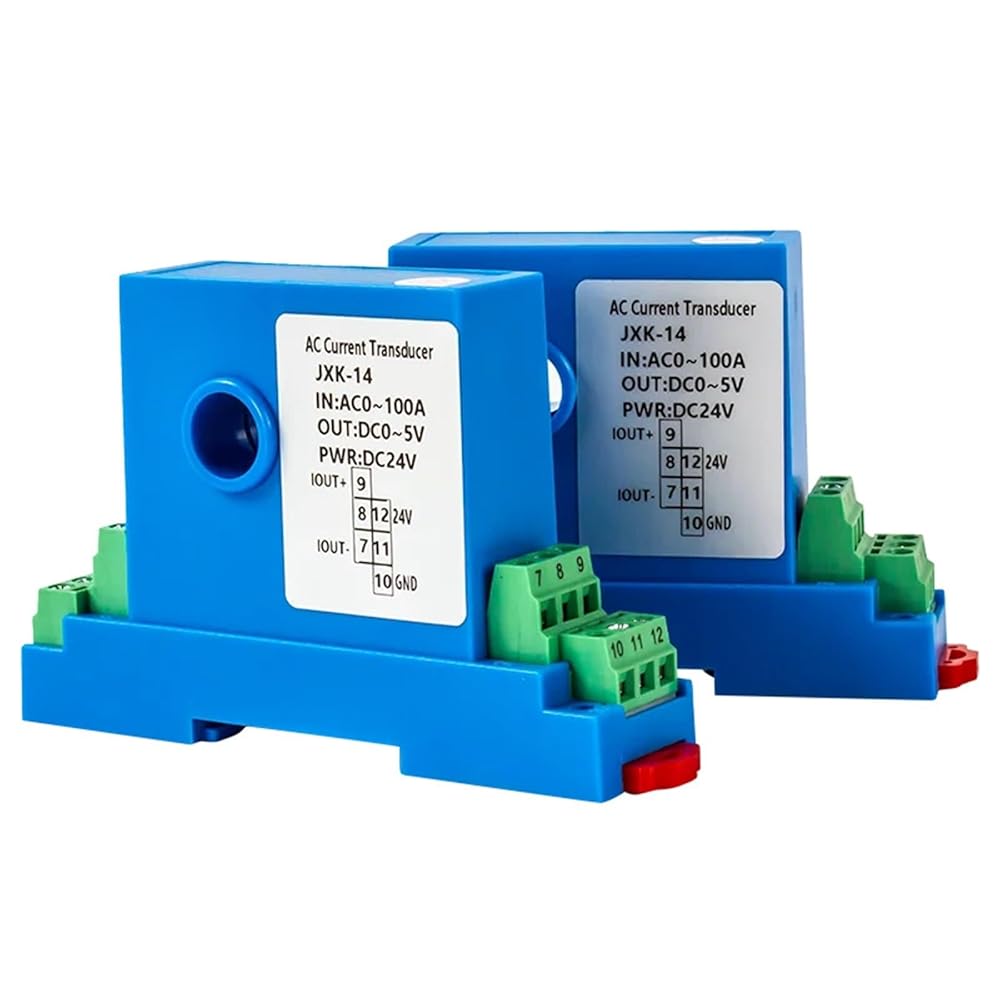

Model Number : JXK-14
Display Type : Analog Only
DIY Supplies : Electrical
Certification : ,FCC,
