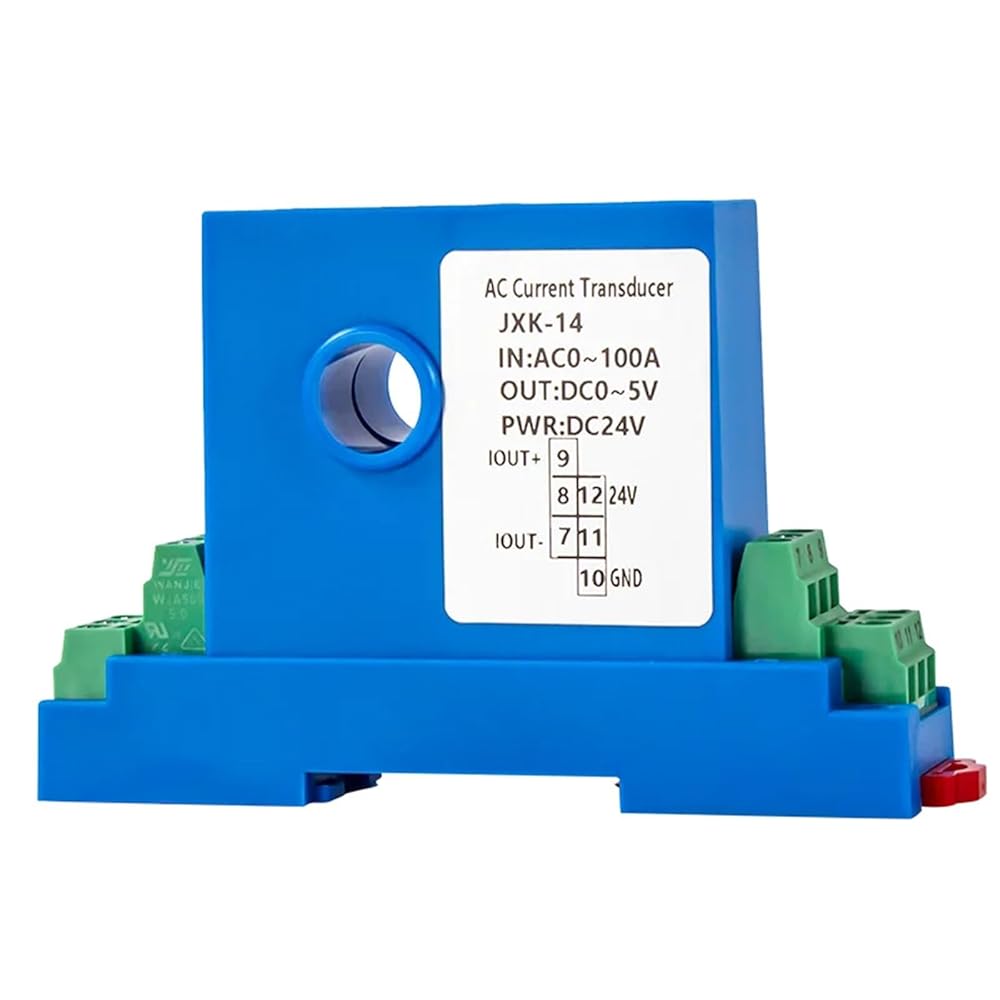

JXK-14 DC 0-50A 0-100A 0-150A Current Transmitter 4-20mA 0-20mA 0-5V 0-10V RS485 Output Current Transducer
Input Range :
8mm Hole : AC/DC 0-100A
12mm Hole : AC/DC 0-200A
We default Supply DC24V. If you need other Power Voltage. Please contact me advance.
Introduction
. Working principle: open loop direct measurement.
.Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.
.The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
.Full channel configuration,Parameter customizable.
==========
Battery Included : No
High-concerned chemical : None
Dimensions : 35mm
Operating Temperature : -10~+70 Celsius
Supply Voltage : DC12V,DC24V
Accuracy Class : 1%
Model Number : JXK-14
Display Type : Analog Only
DIY Supplies : Electrical
Certification : ,FCC,
1 : ampere transducer
2 : current
3 : Current Transmitter 4-20ma
4 : Hall Current Sensor
6 : DC current transmitter
7 : current transducer sensor
Input: : 0-150A
Output: : 4-20mA,0-10V,0-5V,1-5V etc
Hole size: : 4,8,12,15mm
