【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

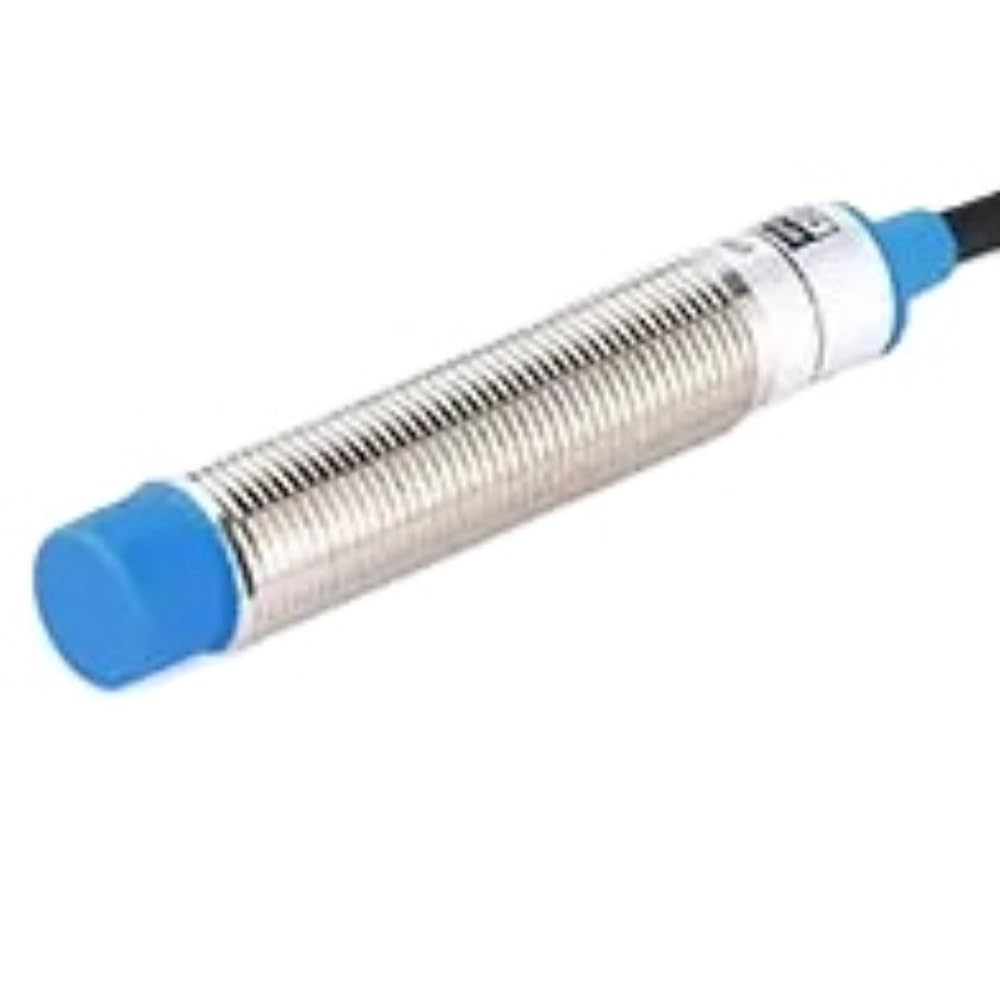

Inductive Proximity Switch, M8 M12 M18 M30 Aviation Induction Metal Three Wire Sensor Connector, 1pc
High-concerned chemical : None
Material : Copper
Switch Type : Proximity Switch
Model Number : LJ8A3
Features : Plug-in
Item Type : SWITCHES
Sensing distance : 2mm,4mm,8mm
Frequency : 500Hz (DC) 25Hz (AC)
Protection Class : IP65
Dimension : M8/M12/M18/M30
Standard sensing object : Iron
Operating voltage(vdc) : 10-30VDC
Operating Temp : -25-+65
Consumption Current : 13mA (NPN/PNP)
Control Output : 300mA (NPN/PNP)
Material (Sensing Face) : ABS
Output Indicator : LED RED
