مميزات خاصة

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

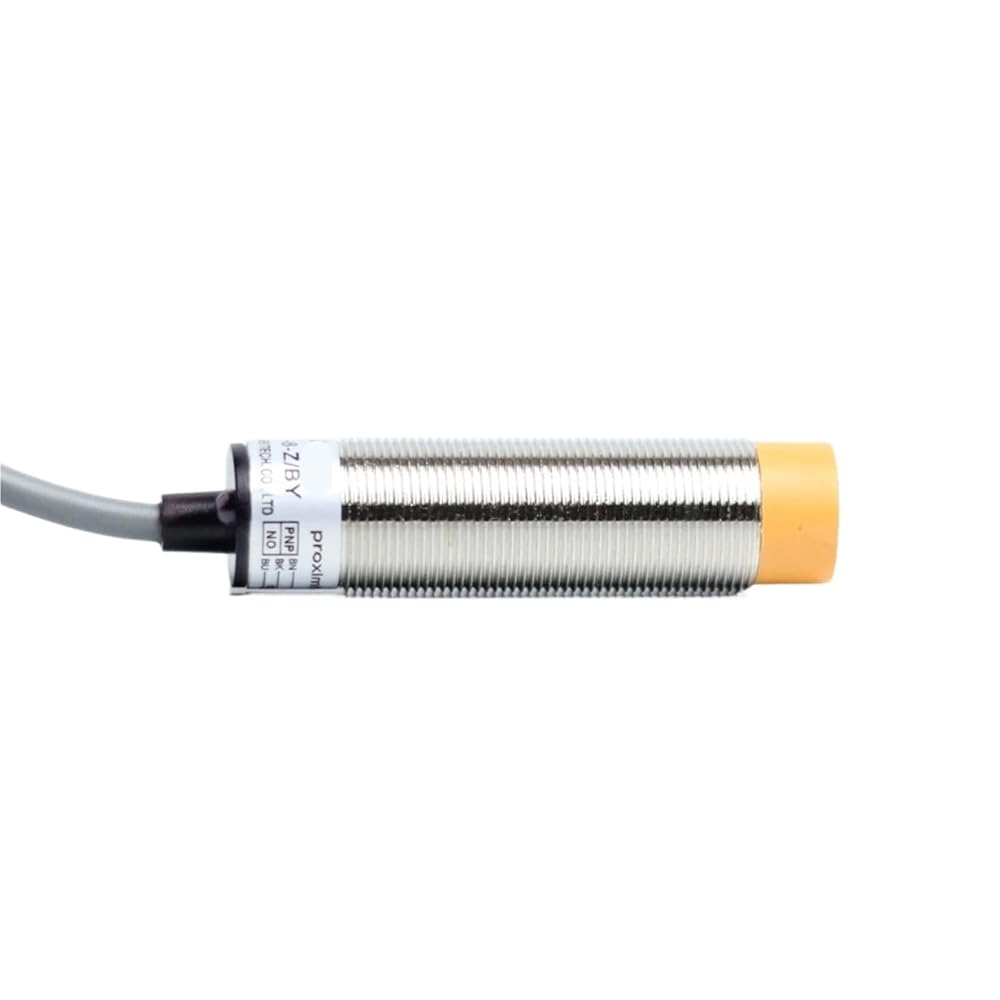

Inductive Proximity Sensor Switch, LJ18A3-8-Z-BX DC 6~36V NPN PNP Detect Metal 5mm 8mm Distance, 1pc
High-concerned chemical : None
Material : Zinc
Switch Type : Proximity Switch
Model Number : LJ18A3
Sensing distance : Sensing distance
Frequency : 500Hz (DC); 25Hz (AC)
Protection Class : IP65
Dimension : M18
Standard sensing object : Iron
Operating voltage(vdc) : 12-24VDC; 110-220VAC (50/60Hz)
Operating Temp : -25-+65
Consumption Current : 13mA (NPN/PNP); 0.8mA(DC 2wire); 1.7mA (AC)
Control Output : 300mA (NPN/PNP); 200mA(DC 2wire); 400mA (AC)
Material (Sensing Face) : ABS
Output Indicator : LED RED
Color : Dark Blue
Cable length : 1.2m
