ترقية مجموعة لصق الأسلاك تحت الأرض UF لصق عدة 14/3 إلى 8/3 مجموعة مباشرة مدفونة UF سلك لصق موصلات تمديد الحبل لصق عدة 14-8 AWG موصلات لصق المسمار ث/8 بوصة. انكماش حراري للجدار الثقيل in Saudi Arabia

طقم وصلة أسلاك تغذية تحت الأرض مطورة من 14/3 إلى 8/3 AWG UF مجموعة وصلات توصيل أسلاك UF مدفونة مباشرة طقم وصلة سلك تمديد 14-8 موصلات لولبية AWG مع انكماش حراري ثقيل الجدار 8 بوصة

SAR 105
ماركة
MAVooPoo
اللونترقية إضافية - مجموعة واحدة حمراء
مقاسمقياس #14/3 إلى #8/3
– 1 +

مميزات خاصة

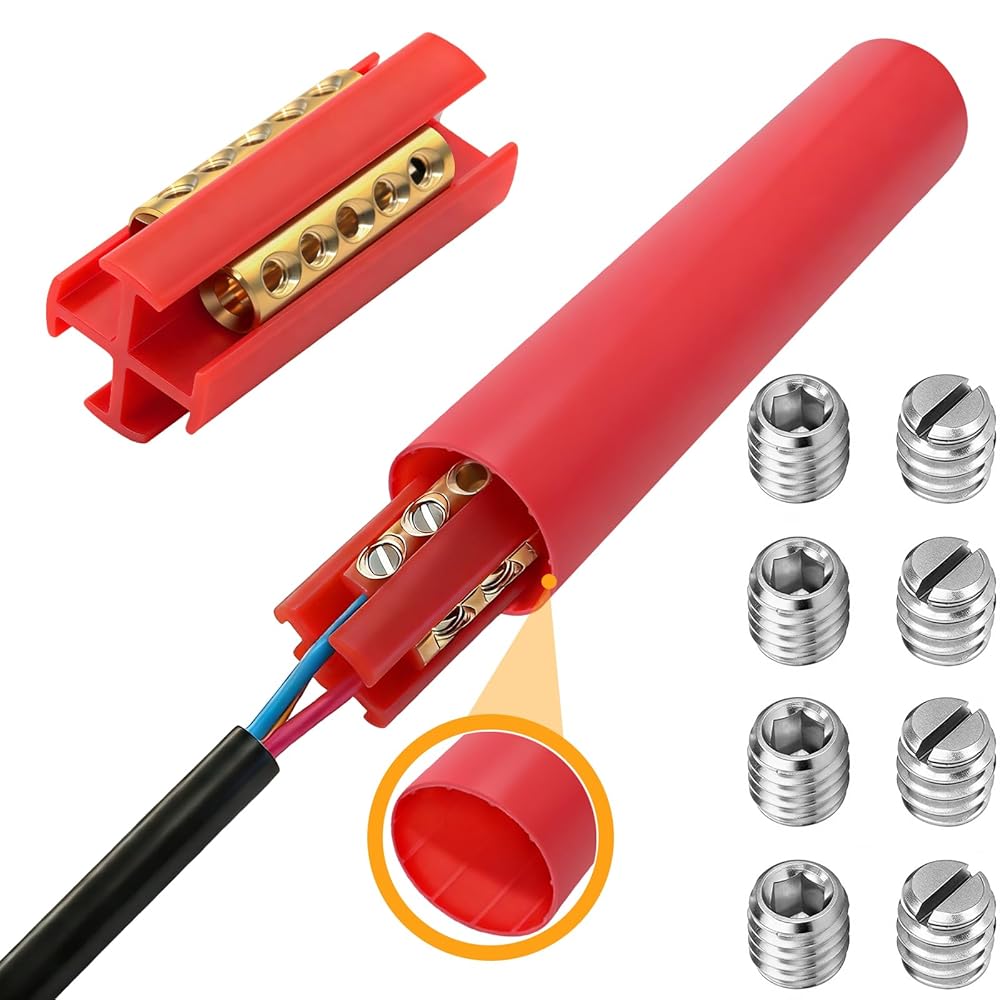

  • PACKAGE CONTENTS: 14-8 AWG Underground Cable Splice Kit Includes: 1 PCS 8 inch. Heavy-Wall Heat Shrink; 1 PCS 4-position Screw Splice Connectors; 20 PCS Slotted Drive Set Screws; 20 PCS Allen Drive Set Screws. The UF cable splice kit will accommodate (Min.) #14/3 through (Max.) #8/3 with ground UF cable and create a direct burial splice and Extension Cord Splice. For simplified splicing of UF cable designed with heavy wall heat shrink with sealant. 600-volt maximum.
  • UPGRADED PLUS WIRE CONNECTOR: Upgraded to 4-screw mounting to ensure maximum pull-out force, greater stability, strength, and resistance to vibration. Our upgraded plus wire connectors are compatible with two screw drive options: Slotted Drive and Allen Drive Set Screws. This dual-compatibility design ensures flexible and reliable installation, meeting diverse on-site assembly needs. Additional soldering via the central control hole is recommended to achieve a safer, more secure connection. Enjoy clean, efficient, and fast assembly with our premium connectors.
  • FEATURES: The Underground Splice Kit accommodates waterproof splicing of 14-8 AWG UF copper wire. Labor Savings! Obsoletes messy, two part Splice Kits. Screws engage each wire securely for a solid splice. Come with 3:1 Shrink Ratio Heat Shrink Tubing (Striped Hot-Melt Adhesive Lining) – Heat-Activated Seal for Maximum Moisture Protection. Two screw drive options—Slotted Drive and Allen Drive Set Screws—are supported for our wire connectors, ensuring flexible, reliable installation and meeting diverse on-site assembly needs.
  • EASY INSTALLATION PROCESS: The process of using screw wire connectors for wire connection is relatively intuitive and straightforward. No special tools are required, nor are complicated professional skills, which reduces the difficulty of electrical wiring. Screws are tightened until full connection of conductors. Simple screw-on design for quick and hassle-free installation.
  • INSPECTION WINDOW: Our screw wire butt connectors have an inspection hole in the center for monitoring full cable insertion, also provides a solder place for tin and wire. For a more secure and reliable wire connection, additional soldering through the central control hole is recommended as an optional but highly effective step.
  • PERMITS MODIFICATIONS: The Underground Feeder (UF) Splice Kit uses mechanical connectors, the repair of UF Cable is a quick, easy and reliable process. No epoxies, tape or separate mastics are required. There is an option of removing aleady existing wires and fixing new ones on existing screwterminals ifregured in the future. The circuits can be easily modified when needed. Its reusability allows products to be used to their fullest extent and also helps save money and protect the environment.
  • INCLUDES HEAVY-WALL HEAT SHRINK TUBING: The Underground Feeder (UF) Splice Kit includes 1.3-inch diameter, 8-inch length heavy-wall polyolefin heat shrink tubing. Featuring a heavy-wall design and striped adhesive-lined heat shrink tubing, it uses a composite structure of "heat-shrinkable base material + striped hot-melt adhesive" to provide a moisture-proof seal that secures and protects in-line splices. Its heat-activated seal ensures maximum protection against moisture ingress and excellent abrasion resistance. It is particularly suitable for situations requiring high standards of sealing, anti-corrosion, and mechanical protection.
  • LONGER LENGTH BARREL: Our screw wire butt splice connectors have longer length barrels with excellent chamfer treatment at both entries. Free from burrs, Quicker wire insertion faster and easier. It is equipped with large screw diameters ensures greater surface contact with wires for maximum pull-out force which will increase the mechanical strength of the connection and added secureness. Ensure stable and reliable wire connections.
  • HOW TO USE IT: The UF Splice connectors are easy to install: their four-position connector ensures a tight connection every time. 1. First, slide the shrink tubing over the cable, then strip insulation from both wire ends. 2. Loosen the connector block screws—do not over-loosen to prevent them falling off. 3. Insert wires one at a time into the brass connector, placing connected wires in the same sleeve. 4. Ensure equal insertion length into the sleeve for secure set screw engagement with copper cores. 5. Double-check wire color matching, then tighten screws to secure the connection. 6. Slide the heat-shrink tube over the connector and use a heat gun to shrink and seal it.
  • BUYER CONFIDENCE: To ensure a proper fit, always match the size and gauge of terminals, cables, and lugs. It's important to use this product with compatible copper cables. We recommend double-checking the dimensions to confirm their accuracy before making a purchase. Your satisfaction matters to us—if there's any issue, we want the opportunity to make it right for you. Below is everything you need to get started.

وصف

MAVooPoo UF Splice Kit Specification:
MAVooPoo UF Splice Kit is designed to provide a reliable, moisture proof electrical connection for type UF-B underground feeder cable rated for 600 V (copper wire only) ranging.
The applicable range of this standard UF Splice Kit covers Type UF-B cables from (Min.) #14/3 (without a ground wire) up to (Max.) #8/3 (with a ground wire).
For the large-sized version of the UF Splice Kit, it is compatible with cables in the wire gauge range of minimum AWG 8 to maximum AWG 2.

MAVooPoo UF Splice Kit is offered in two versions:
Standard Kit includes a 1.8” length terminal connector; 8” length of heavy wall, adhesive lined heat shrinks tube.
Stretcher Kit offers a 11.5” length terminal connector; 20” length of heavy wall, adhesive lined heat shrink tube.

UNDERGROUND FEEDER CABLE SPLICE KIT, 14-8 AWG COMPLETE KIT:
This UF splice kit consists of a connector-insulation assembly and a heat shrink tube. The connector assembly contains four cylindrical set screw connectors separated by a piece of Polycarbonate insulation. The heat shrink tube is a heavy-wall, adhesive-lined tube. Underground Feeder (UF)-B cables are flat, and typically have three solid conductors without a ground or two solid conductors with a ground. They range in size from 14-8 AWG.
Repair of underground feeder UF-B cables rated for 600 volts, ranging from size (Min.) #14/3 without ground wire up to (Max.) #8/3 with ground wire. In cases of dig-in repair or extensions, the MAVooPoo UF Splice Kit, Standard versions, will produce a connection that is insulated and moisture resistant.
Application Temperature 0°F to 120°F(-18°C to 49°C).
Operation Temperature -67°F to 230°F(-55°C to 110°C).

TO COMPLETE A SPLICE OF #14 TO #8 GAUGE UF COPPER WIRE, FOLLOW STEPS 1 THROUGH 9:

WARNING!: Turn power off before installing or removing terminal or connector.
All work should be done according to appropriate electrical codes.
1. Remove 2” of jacket from UF cable.
2. Strip 5/8” of insulation from conductors.
3. Clean cable surface and wipe dry, approximately 4 inches per side of the splice. Lightly abrade the two clean insulation surfaces. Clean cable surface and wipe dry again.
4. Slide the enclosed long piece of heat shrink tube over one end of the wire.
5. Insert wires, one at a time, into the brass connector making sure that the wires of desired connection are in the same brass sleeve. Make sure that the wires are inserted an equal length into the brass sleeve so that the set screw can engage into the copper of each wire.
6. Tighten screws with 8 inch pounds of torque.
7. Slide long piece of heat shrink over connection centering it with respect to the brass/plastic connector assembly.
8. Apply heat to the shrink tube with a torch or heat gun starting in the middle of the shrink tube, moving out to each end. Properly installed, shrink tube will be smooth and conform to the cable. Adhesive should be visible at each end of the shrink tubing.
9. Apply heat to tube until adhesive flows out on both ends of tube.
