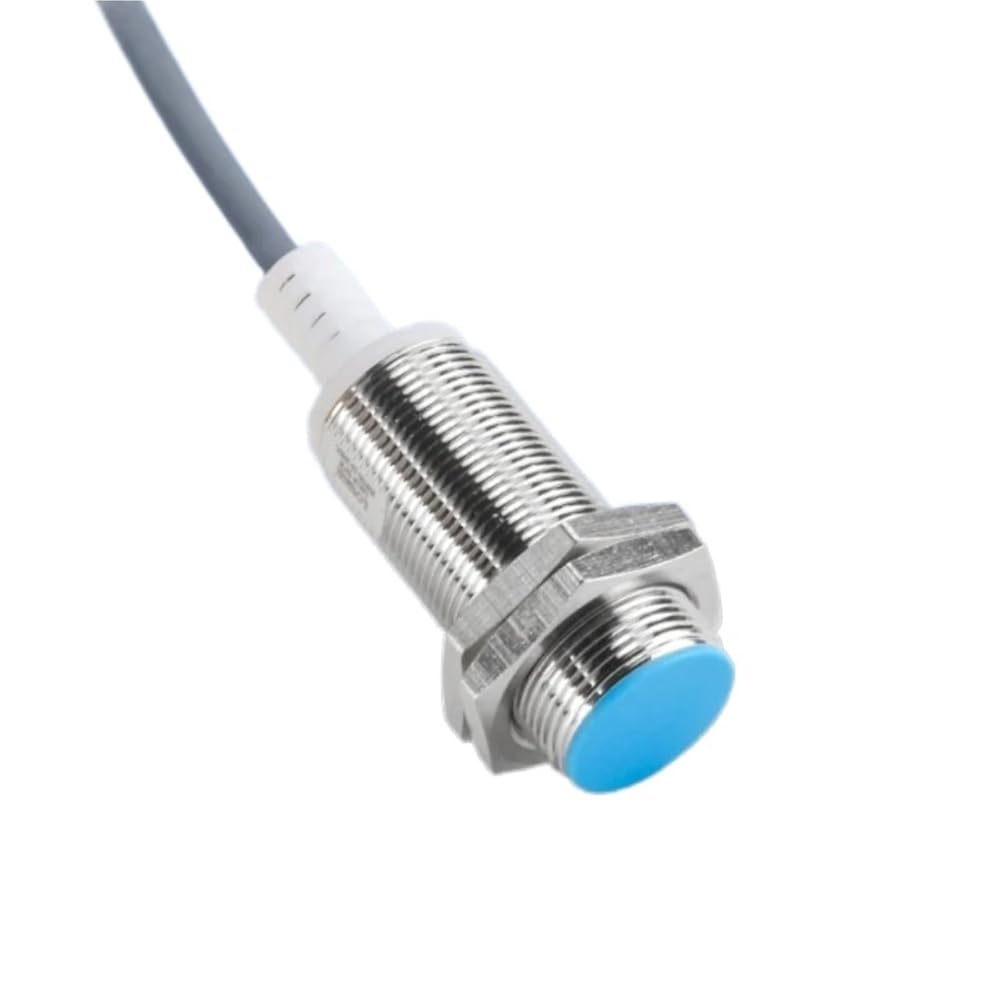

LM18 Inductive Proximity Sensor, Metal Detection Approach Switch, IP68 1000Hz 5mm/16mm Distance NPN DC12/24V PLC, 1pc((Flush),10MM,NPN NO) in Saudi Arabia

LM18 Inductive Proximity Sensor, Metal Detection Approach Switch, IP68 1000Hz 5mm/16mm Distance NPN DC12/24V PLC, 1pc((Flush),5MM,NPN NC)

SAR 183
Brand
LOXNVUY
Color(flush)
Size5mm
StyleNPN NC
– 1 +

Special Features

  • 【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
  • 【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
  • 【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
  • 【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
  • 【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

LM18 Inductive Proximity Sensor, Metal Detection Approach Switch, IP68 1000Hz 5mm/16mm Distance NPN DC12/24V PLC, 1pc
High-concerned chemical : None
Current : 100mA
Material : Copper
Switch Type : Proximity Switch
Model Number : LM18
Features : Short Circuit Protection and Reverse Polarity Protection
Item Type : SWITCHES
Sensing distance : 5mm, 8mm
Frequency : 1000Hz
Protection Class : IP68
Dimension : M18
Standard sensing object : Iron
Operating voltage(vdc) : 10-30VDC (3wire)
Voltage Drop Vd : 0.6VDC
Operating Temp : -25-70
Housing Material : 65 brass
Material (Sensing Face) : ABS
Output Indicator : LED RED
Application : 3D printer
