Special Features

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

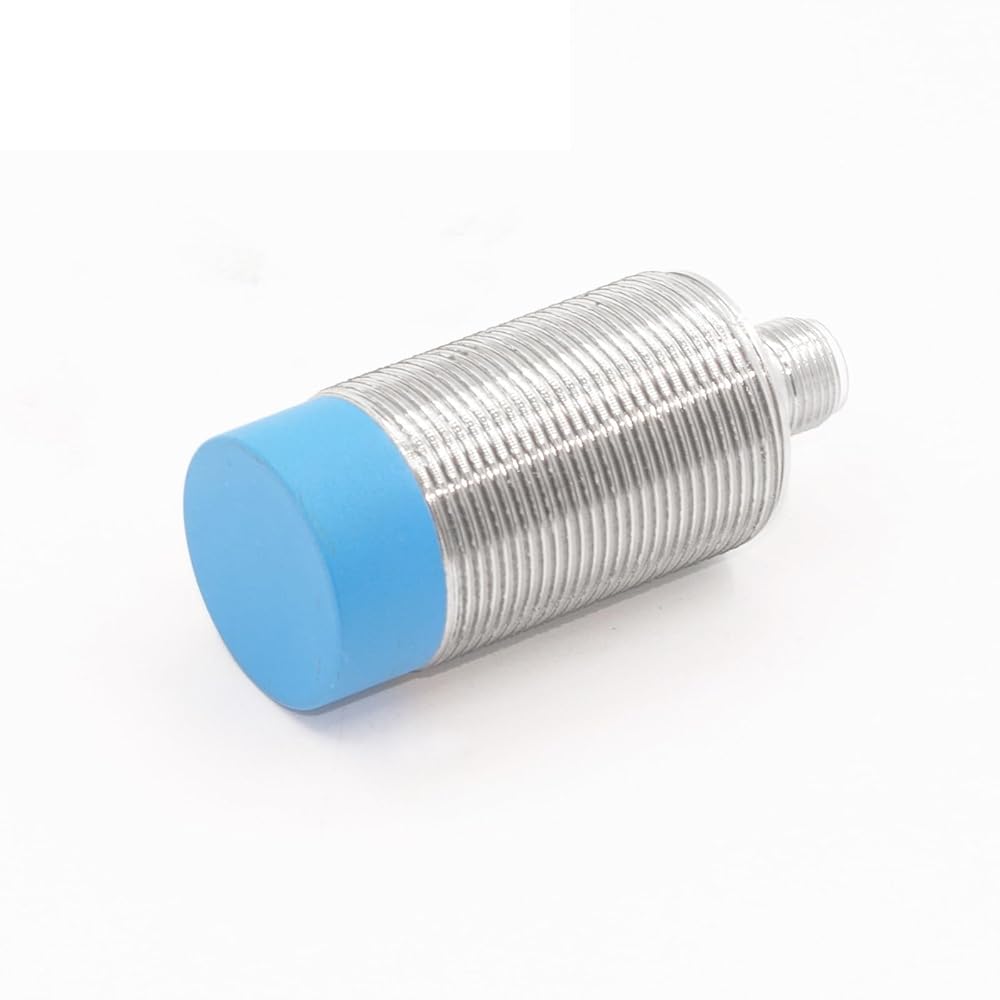

M30 Proximity Switch Sensor, NPN PNP NO NC 24VDC 3-wire Inductive Sensor Long Range IP67 Waterproof, 1pc
High-concerned chemical : None
Theory : Inductance Sensor
Material : Mixture
Output : Switching Transducer
Detection distance : 15mm
Installation method : Non-flush
Output : NPN or PNP
Supply Voltage : DC 10-30 V
Insulation voltage : 1000V / AC 60S
Switching frequency : 800Hz
Protection grade : IP67
Shell material : H62 copper nickel plating
Detection surface material : PBT
Connection method : M12 aviation insertion 4PIN
