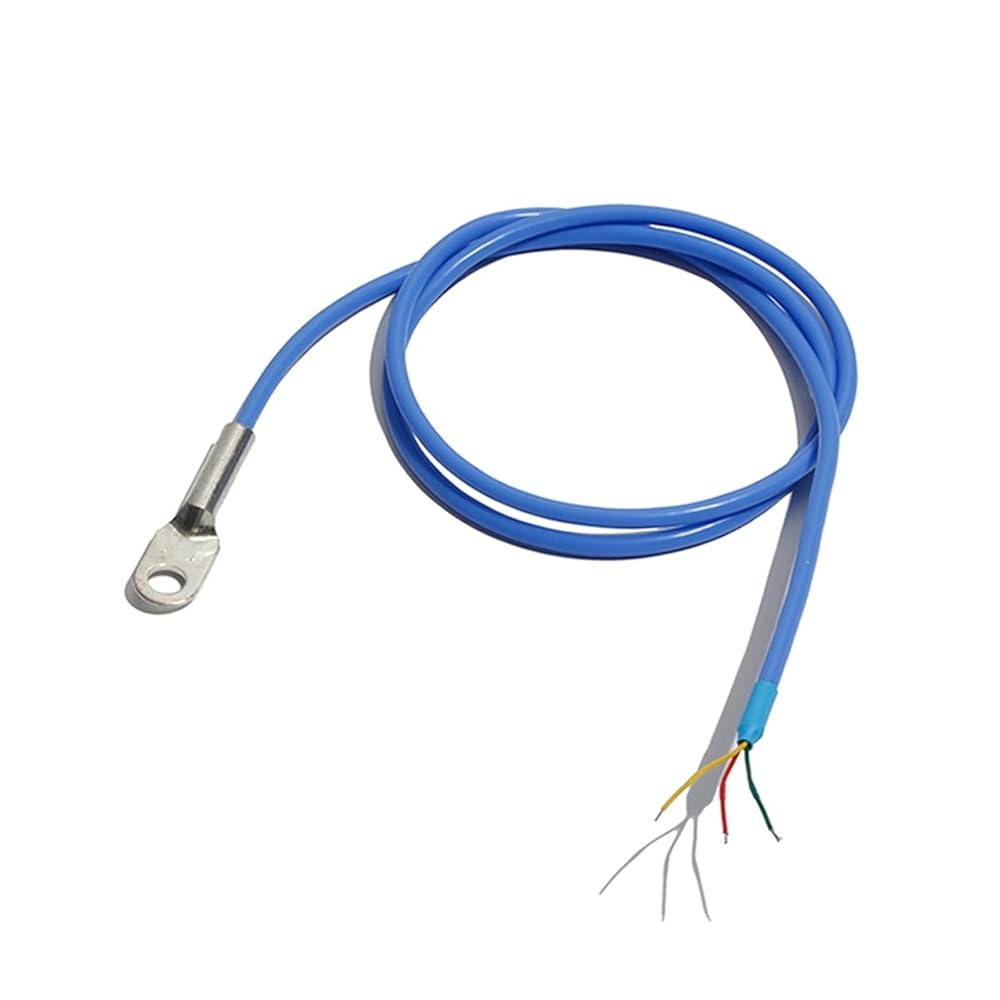

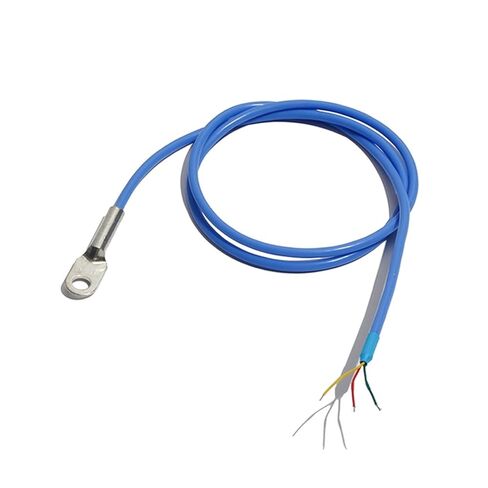

Round Hole Type Temperature Sensor Copper Galvanized Probe Can be Fixed Installed with Screws 0.5m/1m/2m Cable
Specifications:
Product Name: Round Hole Type Waterproof Digital Temperature Sensor
Power Supply Range: 3~5V
Resolution: 9~12 Bit Adjustable
Temperature Range: -55~125
Output Leads: Red (VCC), Yellow (DATA), Green (GND)
Probe Size:
Tube Outer Diameter: 8mm
Total Length: 58mm
Board Width: 14.6mm
Thickness: 1.9mm
Inner Hole Diameter: 8.34mm
Cable Length: 0.5m/1m/2m
Probe Material: Copper Galvanized Probe
Cable Material: PTFE Inner Layer, Shielded Layer, Blue Silicone Outer Layer
Advantages: The round hole type temperature sensor has a large temperature sensing area, which can better fit the measured object, high temperature measurement accuracy, fast response speed, small size and convenient fixed installation
Applications: Medical, electrical machine, industrial, temperature calculation
Applicable Occasions: Suitable for special places to be fixed or the surface of the vibrating measured object
Installation Method: Can be fixed with screws (common method)
Package Contents: 1 x sensor
==========
Origin : Mainland China
Type : Electric Water Heater Parts
Product Name : Round Hole Type Waterproof Digital Temperature Sensor
Power Supply Range : 3~5V
Resolution : 9~12 Bit Adjustable
Temperature Range : -55~125
Output Leads : Red (VCC), Yellow (DATA), Green (GND)
Tube Outer Diameter : 8mm
Total Length : 58mm
Board Width : 14.6mm
Cable Length : 0.5m/1m/2m
Probe Material : Copper Galvanized Probe
Cable Material : PTFE Inner Layer, Shielded Layer, Blue Silicone Outer Layer
