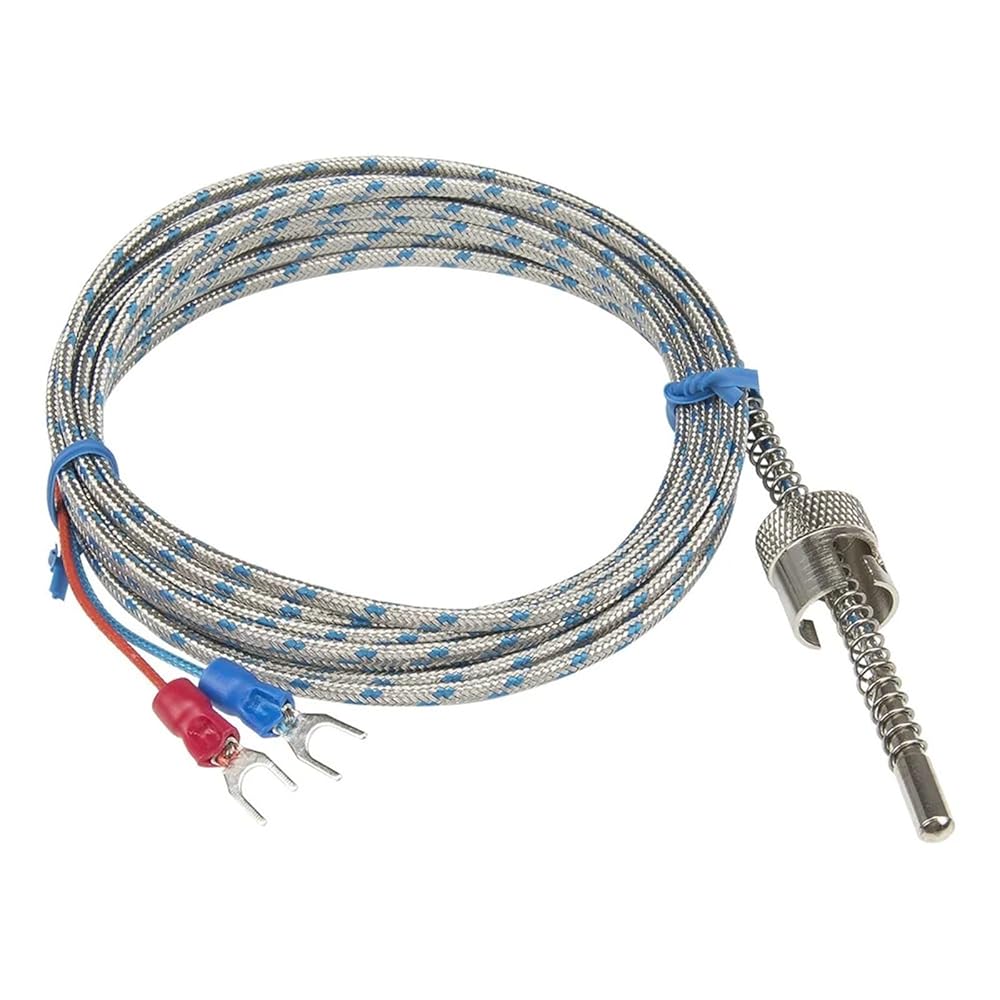

Series adjustable bayonet cap head thermocouple and RTD temperature sensor
Model number and parameters
Model number
Type
Measuring range
Related product
K 0-600 °C
PT100
-50-450 °C
Bayonet cap material
-F: Iron
-B: Brass
Hole diameter
D11.5: 11.5mm
D12: 12mm
Cabel material
UM: Usual metal screening
HM: High accuracy 2*1*0.5mm metal screening
MM: High accuracy 2*7*0.2mm metal screening
Cable length
1: 1m
2: 2m
3: 3m
4: 4m
5: 5m
Parent Model Number
Bayonet cap material
-F: Iron
-B: Brass
Hole diameter
D11.5: 11.5mm
D12: 12mm
Cabel material
UM: Usual metal screening
HM: High accuracy 2*1*0.5mm metal screening
MM: High accuracy 2*7*0.2mm metal screening
Cable length
1: 1m
2: 2m
3: 3m
4: 4m
5: 5m
Mounting form
Press spring
Accuracy
K, E, J: ±0.75%t, ±0.4%t; PT100: ±(0.6°C+1%|t|), ±(0.3°C+0.5%|t|)
Work type
Thermocouple: Usual metal screening: Grounded; high accuracy metal screening: Un-grounded
Bayonet cap material
Iron, Brass
Current: Brass
Hole diameter
Standard is 11.5mm, can make 12, 12.5mm
Current: 12mm
Probe material
Stainless steel, brass
Probe diameter
4.5mm
Probe length
25mm
Cable material
Usual metal screening, high accuracy metal screening; high accuracy multiple wire metal screening; high quality PTFE silver plated copper
Cable length
Standard is 2m, customer can select 1, 3, 5m or specify the cable length
Current: 3m
Matched accessory
11.5mm bayonet cap adapter,12mm bayonet cap adapter
Thermal response time
Insulating resistance
==========
Cable Length : 3M
Theory : Temperature Sensor
Display Type : Analog
Origin : Mainland China
Max Measuring Temperature : 120°C & Above
Style : Standing Station
Use : Industrial
Display Size : 2.0 - 3.9 Inches
