describe
Commutation: Brushless
Type: Motor
Output power: 60-80W
Model: 895
No-load speed: 3000-6000RPM
Voltage: 12 - 24V
feature:
The shaft diameter of the 895 motor is the same as that of the 775 motor 5MM.
Rated voltage: DC12V-24V. (voltage 12 to 24V can be used)
Motor step: 4.5mm
Motor step diameter: 18mm

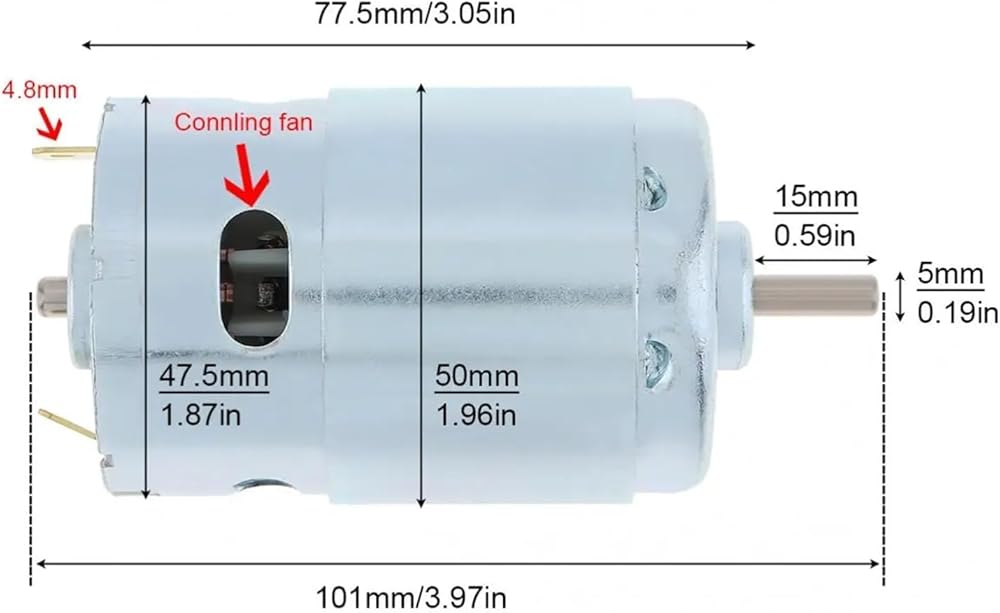

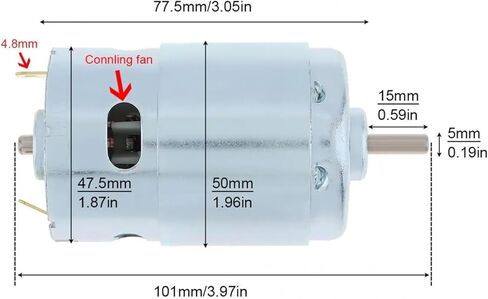

Motor diameter: 48mm plus magnetic ring 50mm
Shaft diameter: 5mm (exactly the same as 775 motor)
Motor tail shaft length: about 6mm

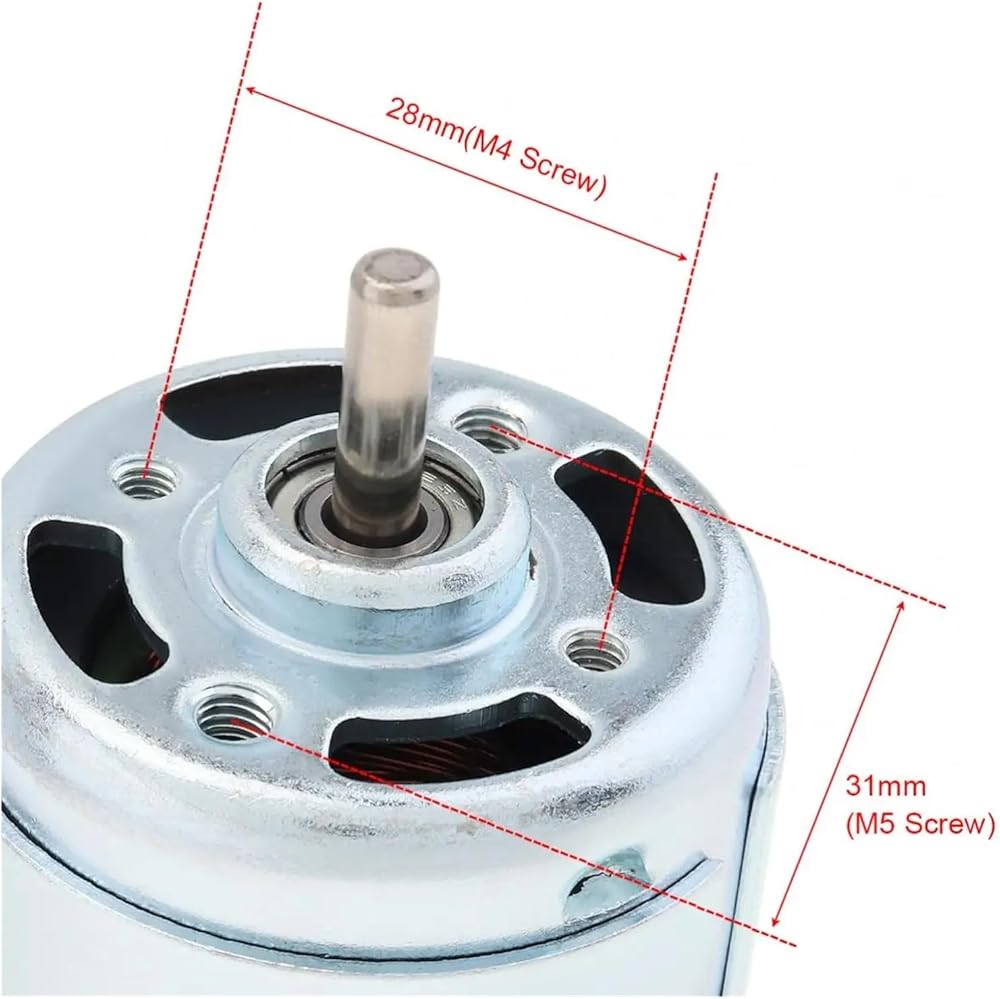

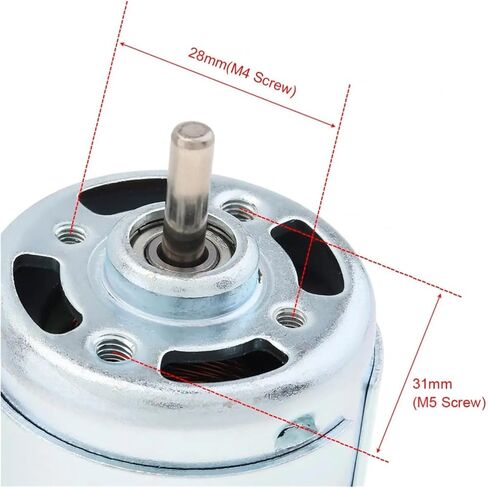

Installation hole distance: about 29mm
Mounting hole screw diameter: M4 screw M5 screw
notes:
The starting current must be greater than 10A. It is recommended to use a switching power supply or a battery power supply.
It is recommended to use a 360W24V15A switching power supply and household 220V cannot be used directly.
Due to different shooting environments lighting and angles there will be some differences in the color of the pictures please understand!
Product Weight: 500 g / 17.64 oz
Product size (L*W*H): 110*50*50 mm / 4.33*1.97*1.97 inches
Model:EPC_MTR_00G
