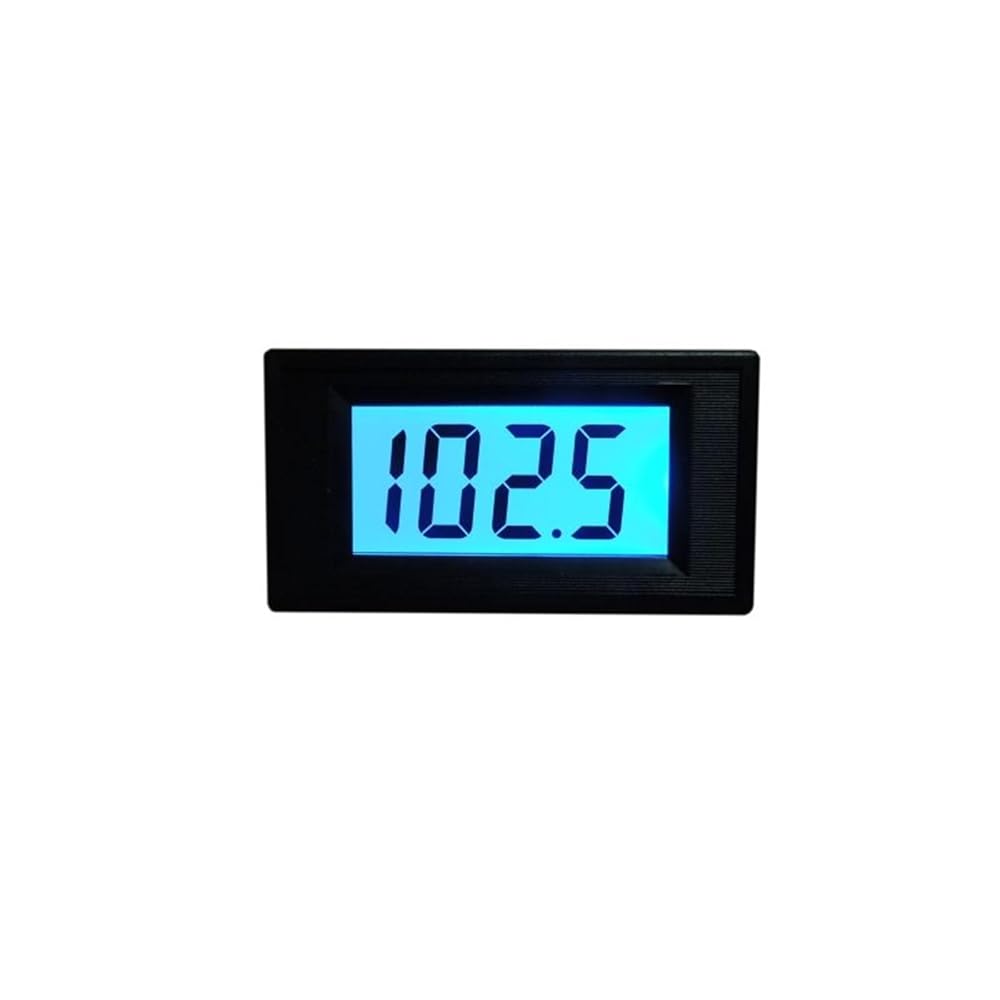

YB5135RD Digital ohmmeter Resistance Meter OHM Meter Impedance Meter resistor Tester 0-200 OHM 2K 20K 200K 2M 20M ohmmetro
Attention:
The ohm meter can not be online test live resistance value,or it will be burnt.
Technical parameters:
Resistance: 200 OHM,2K,20K,200K,2M,20M
Power supply: AC/DC8-12V, DC5V, 24V selectable.
Measurement accuracy: 0.5% ± 2 digits
Display: with blue backlight
Measuring speed: about 2 times per second
Dimensions: 79*43*15mm
Installation size: 75 × 39.5mm
Extreme working conditions:
Operating temperature: -10 ~ +50
Working pressure: 80 ~ 106kPa
Working humidity: 10 ~ 80% (no condensation)
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5135RD
DIY Supplies : ELECTRICAL
Dimensions : 79*43*15mm
Operating Temperature : -10~50 degree
Accuracy Class : 1%+/-2 digits
Power Supply :
Display Type : Digital Only
Power supply : AC or DC8-12V/DC5V/DC24V
Resistance : 200 OHM/2K/20K/500K/2M/20M
Display type : with blue backlight
