YB5130DVF Voltmeter AC 80-500V 45-65Hz Voltage Frequency Meter Digital Herz Tester Volt Panel Monitor Hz Gauge AC 220V 380V
Attention:
1.The meter can only be used to measure 50/60Hz sine wave circuit,it will be damage when power supply is by square wave, output of inverter and correction sine wave.
2.This meter shows the Average Value.
Technical Parameters:
Power supply:NO

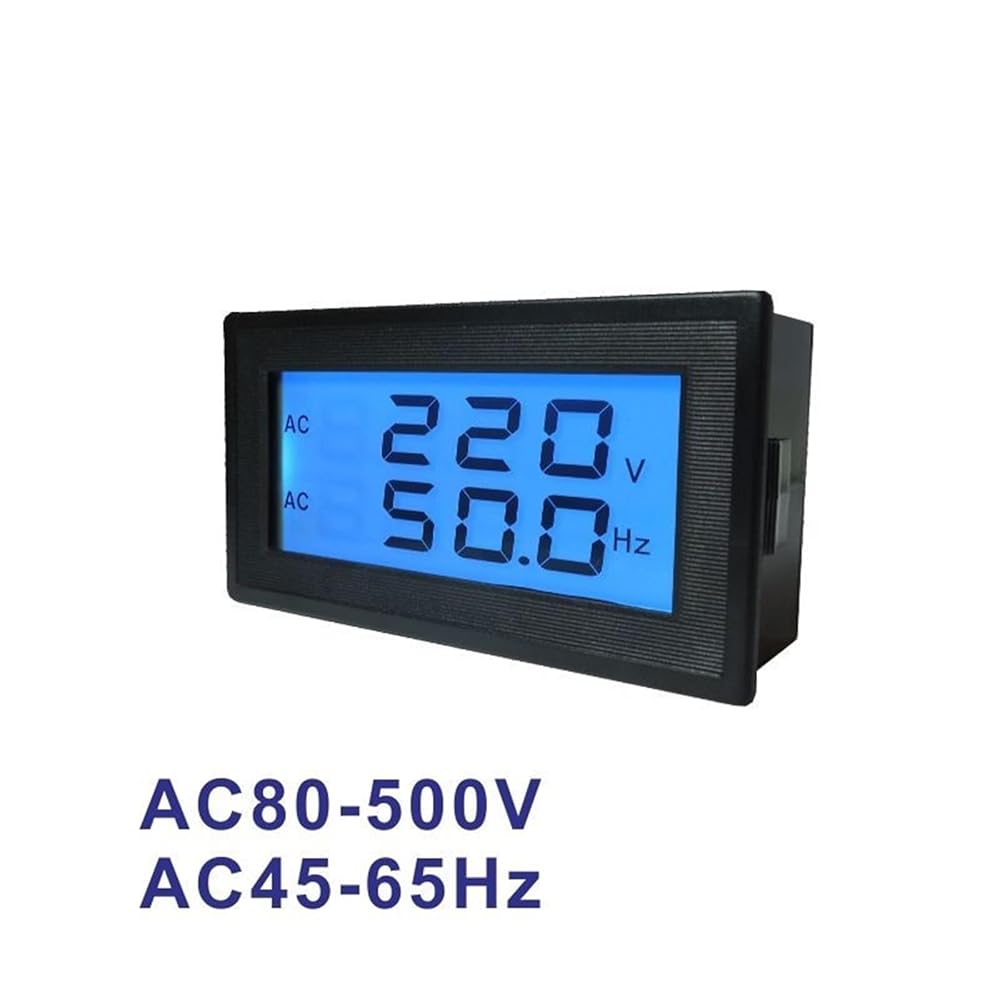

Test voltage:AC80-500V, Resolution:1V
Test frequency:AC45-65Hz,Resolution:0.1Hz
Dimension:79*43*15mm
Mounting hole:76*39.5mm

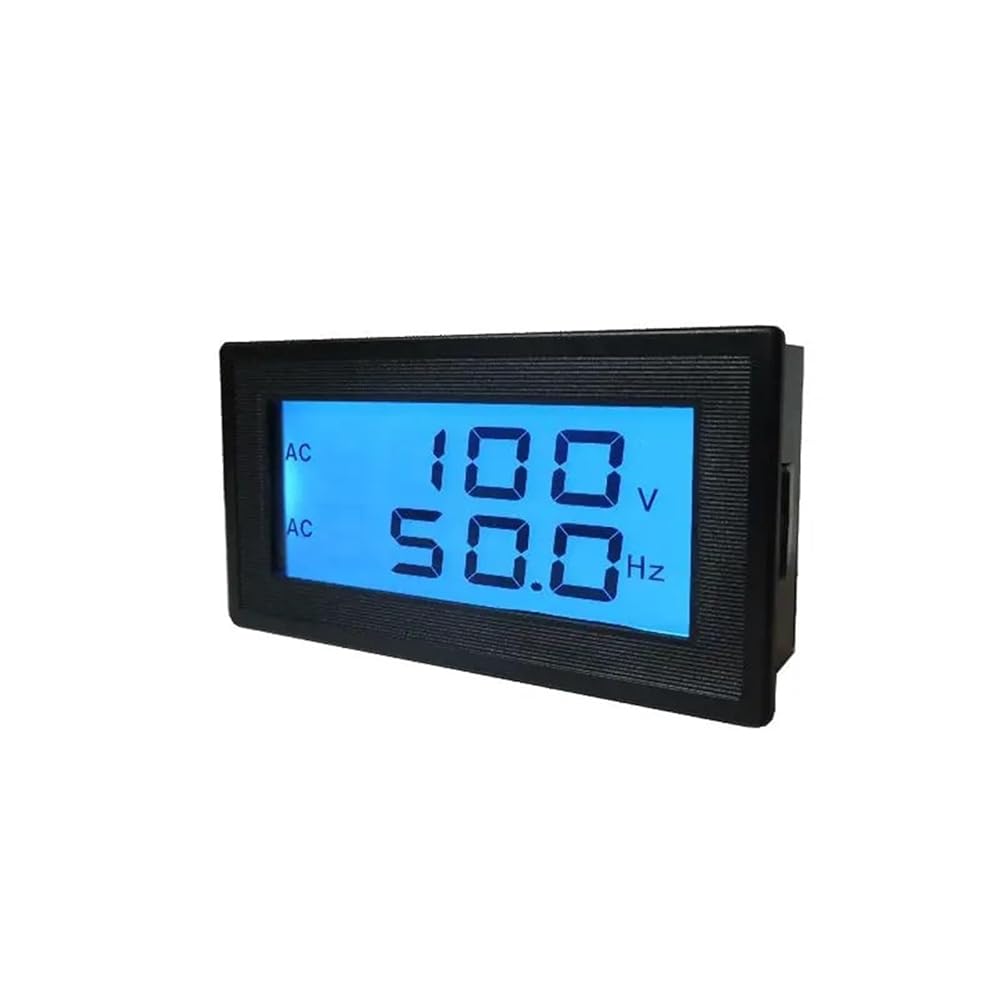

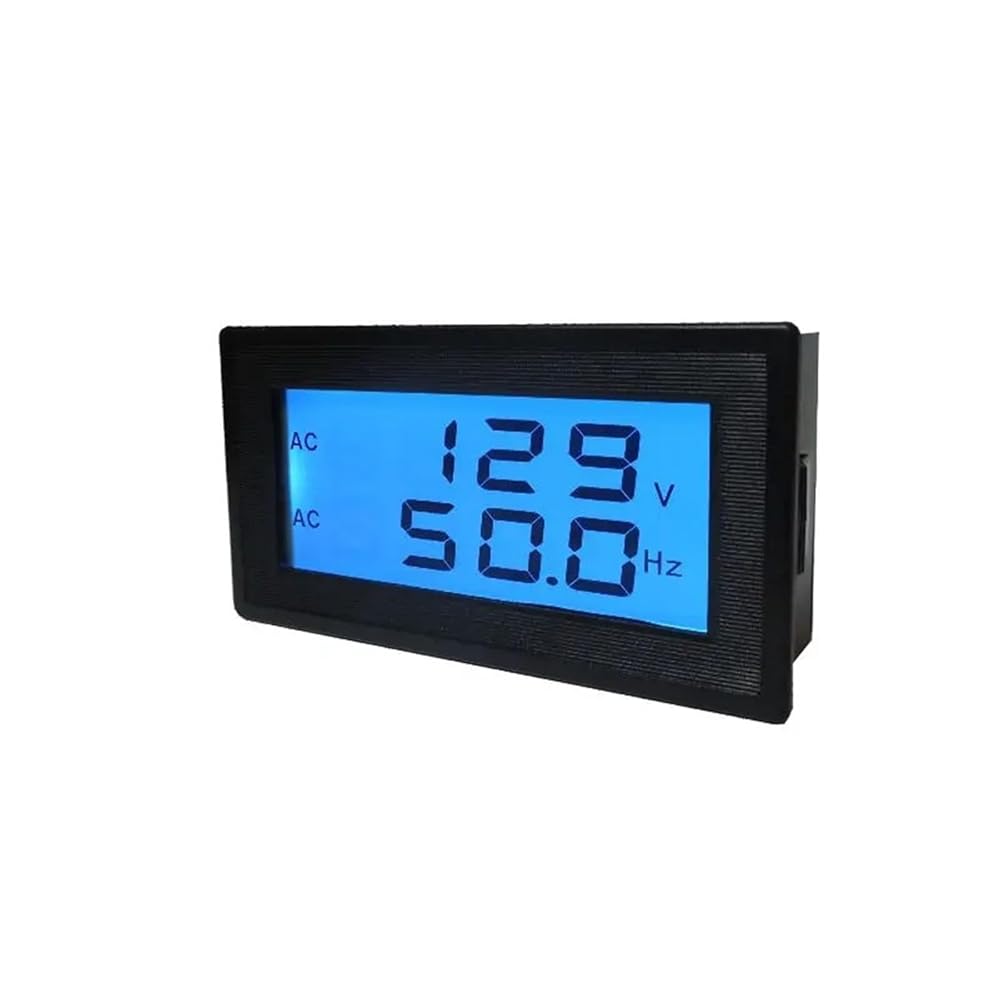

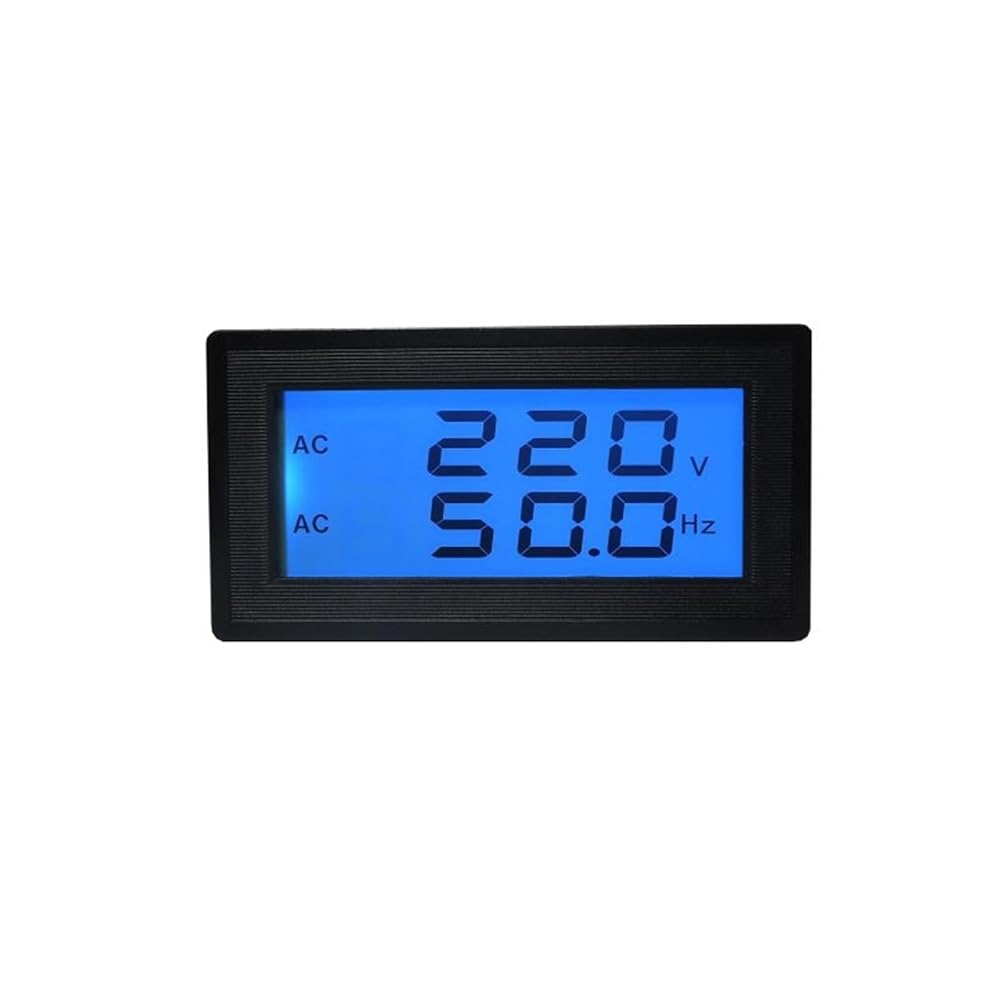

Display mode: digital with blue backlight
Measurement accuracy: 1%(+/- 2 digits)
Measurement rate: 2 times/S
Working conditions:
Operating temperature:-10~50 degrees
Working humidity:10~80% (No condensation)
Working pressure:80~106kPa
Sun exposure:No direct exposure
==========
Hign-concerned Chemical : None
Dimensions : 79*43*15mm
Operating Temperature : -10~50 degrees
Accuracy Class : 1%+/- 2 digits
Measuring Range : AC80-500V
Model Number : YB5130DVF
Display Type : Digital Only
DIY Supplies : ELECTRICAL
Test voltage : AC80-500V
Test frequency : AC45-65Hz
Display mode : digital with blue backlit
Dimension : 79*43*15mm
Measurement accuracy : 1%(+/- 2 digits)
Measurement rate : 2 times/S
