Special Features

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

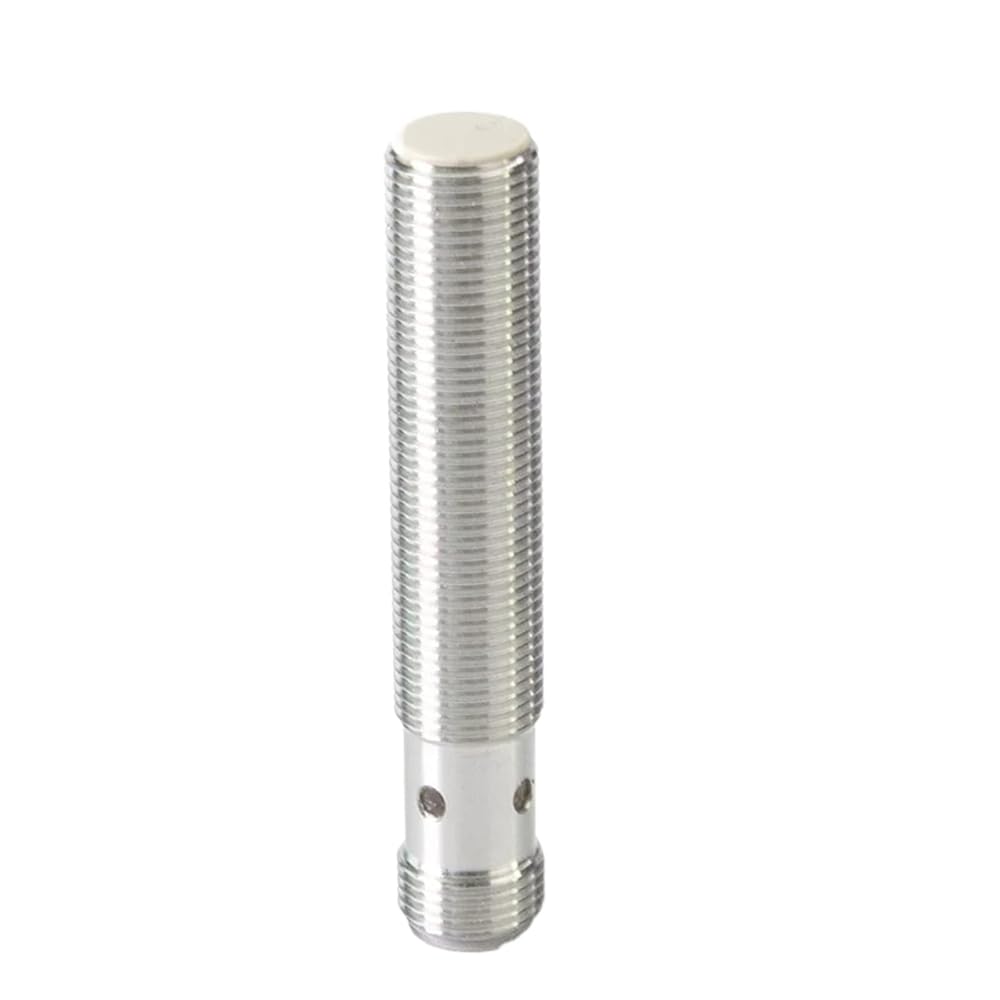

M12 Capacitive Proximity Sensor, 3-wire DC 10-30V NPN PNP IP67 Flush Plug-in Unit, 1pc
High-concerned chemical : None
Theory : Capacitance Sensor
Material : Mixture
Output : Switching Transducer
detection distance : 4mm
Supply Voltage : DC 10-30V
insulation voltage : DC 1000V/ AC 60S
switching frequency : DC 100HZ
Short circuit protection : DC have/have
operation temperature : -25~+70
protection grade : ip67
Shell material : H62 copper nickel plating
Detection surface material : PBT
Connection method : M12 aviation insertion
