FAQs:
Q: Which systems require driver installation?

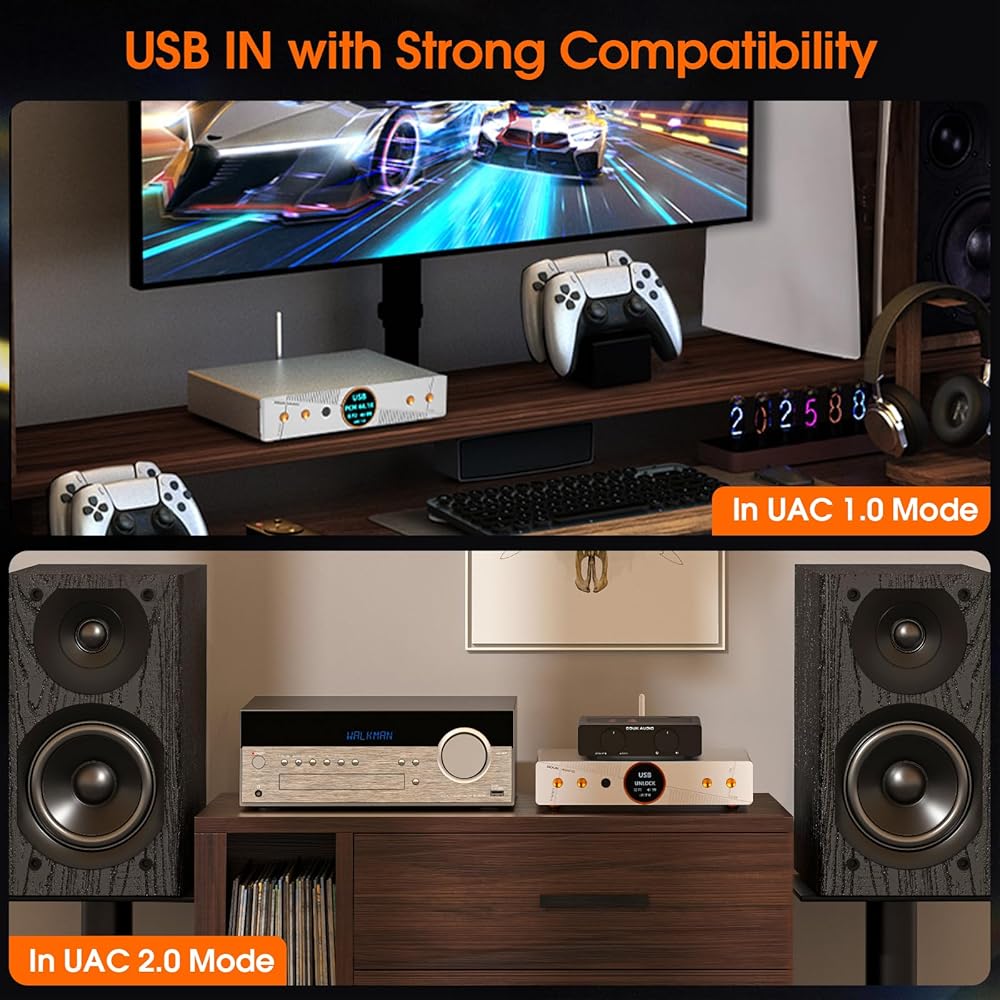

A: UAC1.0: Driver-free on all systems.
UAC2.0: Windows 7/8 requires drivers. Windows 10/11 are driver-free for PCM, but need drivers for DSD. MacOS and Linux are driver-free.

Q: Q100 can't work with my phone via USB, is a driver required?
A: No, it's drive-free. Please use the supplied OTG-compatible USB cable and ensure the phone support OTG. On some phones, you may need to enable OTG in settings. For iPhones/iPads with a Lightning port, a high-current camera kit is required.

Q: Do the XLR and RCA outputs work simultaneously, and is the volume synchronized?
A: Yes, both outputs work at the same time, with volume control applied to both simultaneously.

Q: What op-amps are used, and can they be replaced?
A: The Q100 uses five OPA1612 surface-mount op-amps, which are soldered directly onto the board and cannot be replaced or swapped out.

Q: Which functions can only be controlled via the remote control?
A: Only clearing Bluetooth pairing and UAC1.0/2.0 switching must require the remote; all other functions can be operated from the panel.

Q: Does switching UAC mode require restarting the Q100?
A: Usually no restart is required. For a small number of computers the USB cable may need to be reconnected.

Parameters

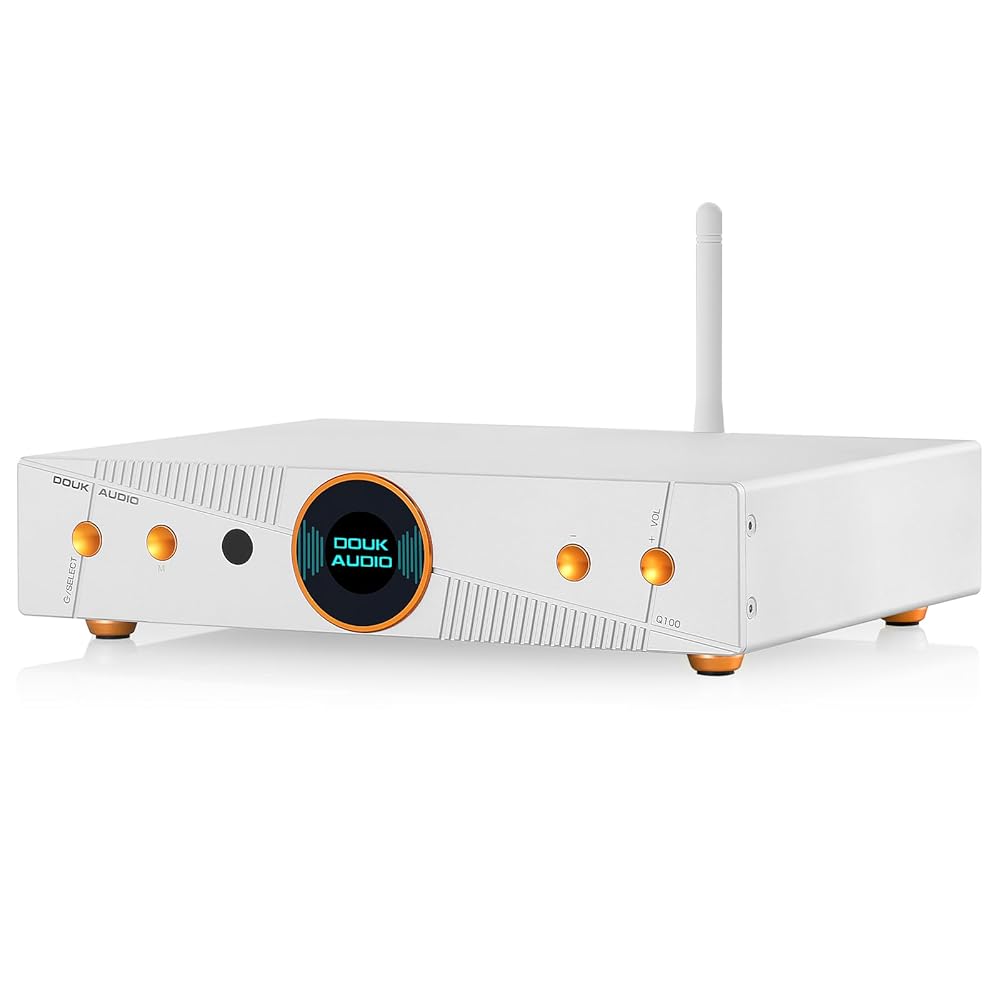

Brand: Douk Audio
Model: Q100

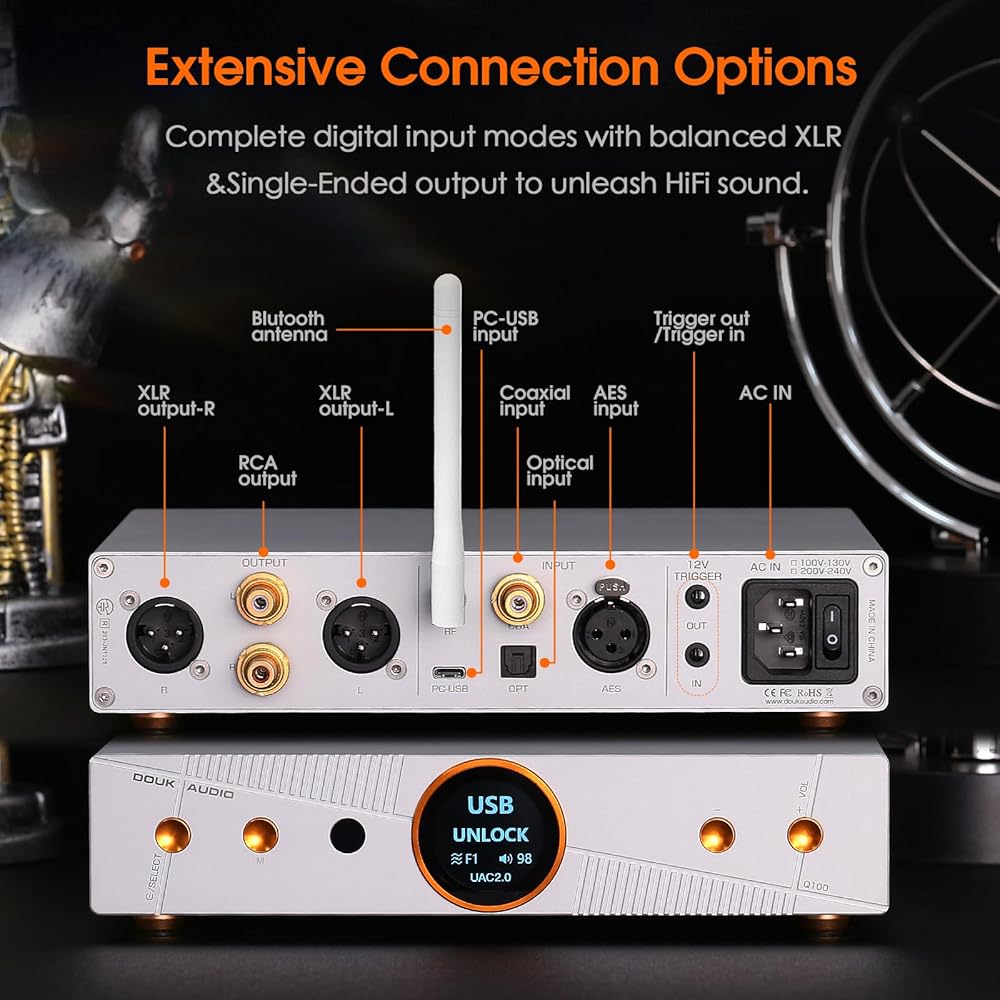

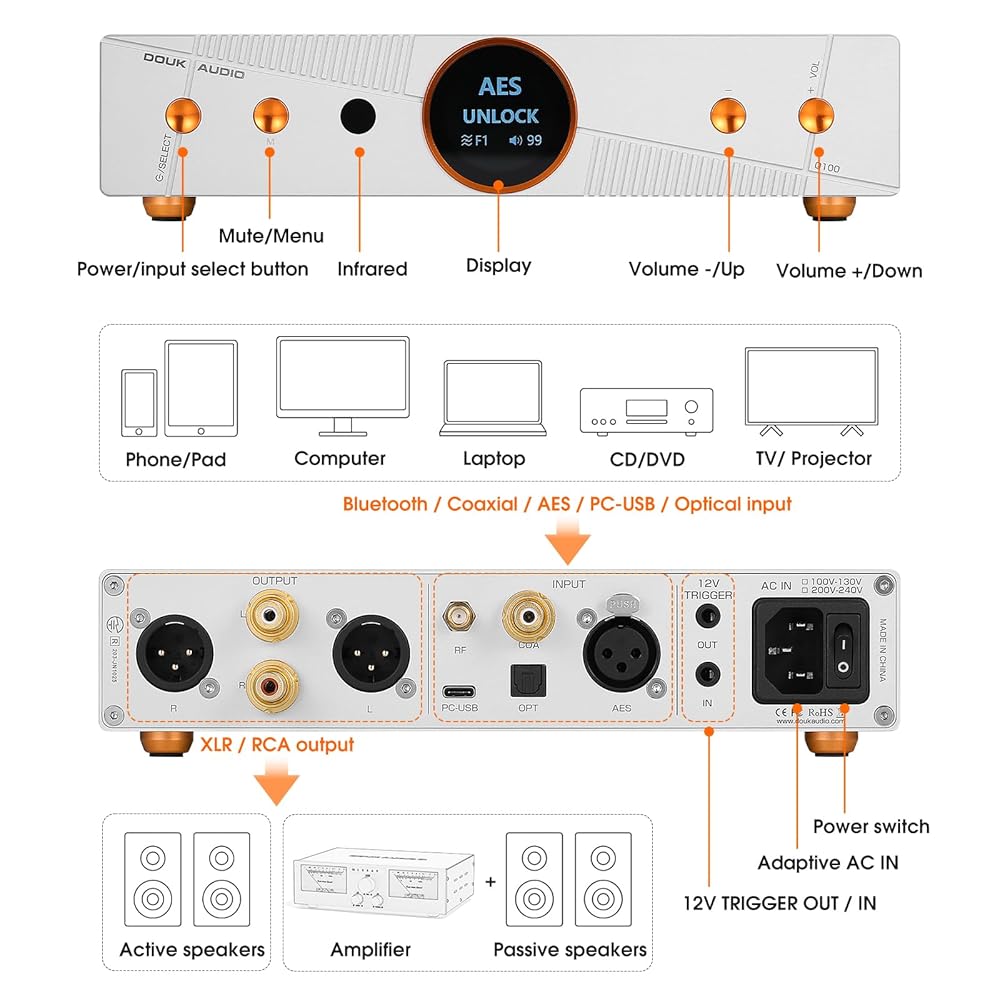

Audio input: Bluetooth 5.1 / USB-C / Coaxial / Optical / AES
Audio output: XLR / RCA
Chipset: AK4499 + AK4191 + QCC5125 + XU316 + OPA1612
Bluetooth supported codecs: SBC / AAC / aptX / aptX-HD / LDAC
Max sampling rate supported:
USB input: PCM 768kHz/32bit, DSD512 (native), DSD256 (DoP)
Coaxial/Optical input: PCM 192kHz/24bit, DSD64 (DoP)
AES input: 192kHz/24bit

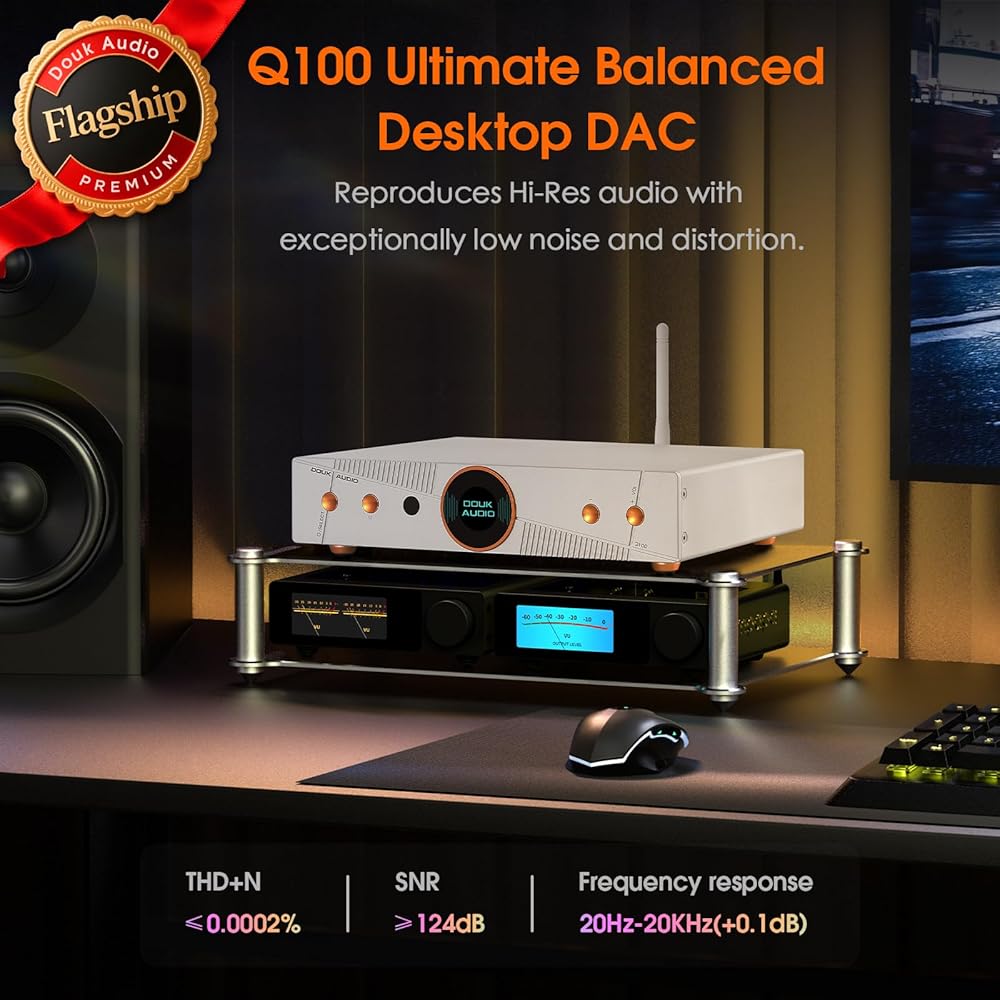

Frequency response: 20Hz-20KHz (±0.1dB)
SNR: ≥124dB
THD+N: 0.0002%@1kHz
Max output level: RCA: 2.3V; XLR: 4.5V
USB compatible operating systems: Windows 7/8/10/11, macOS, Linux, Android, iOS

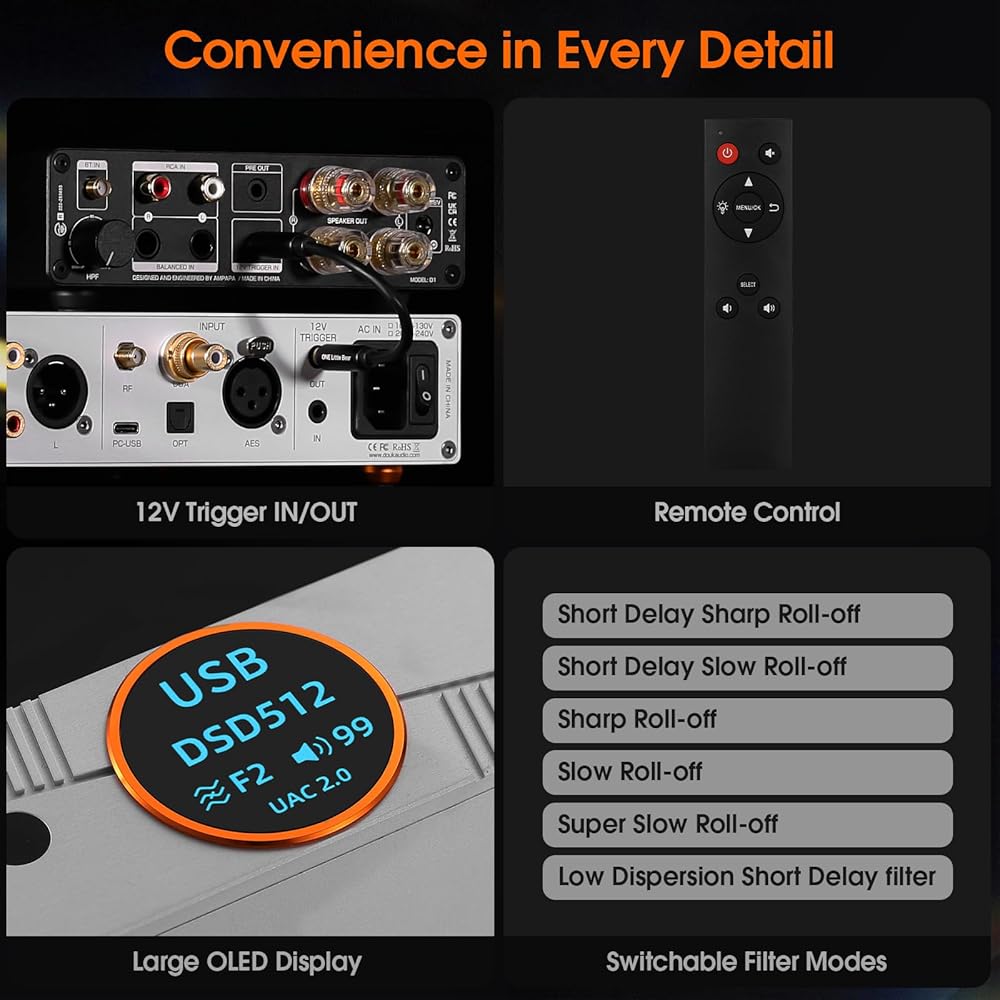

Filter modes: PCM: 6 modes, DSD: 2 modes
Brightness of display screen: 10-100%
Screen display time: 15s / 30s / solid on
Working voltage: Adaptive AC 100-130V
Dimensions (W*D*H): 228*170*46mm / 8.98*6.69*1.81in
Package dimensions (W*D*H): 400*230*80mm / 15.74*9.05*3.15in
Net weight: 1.73kg / 3.81lb
Package weight: 3.0kg / 6.61lb

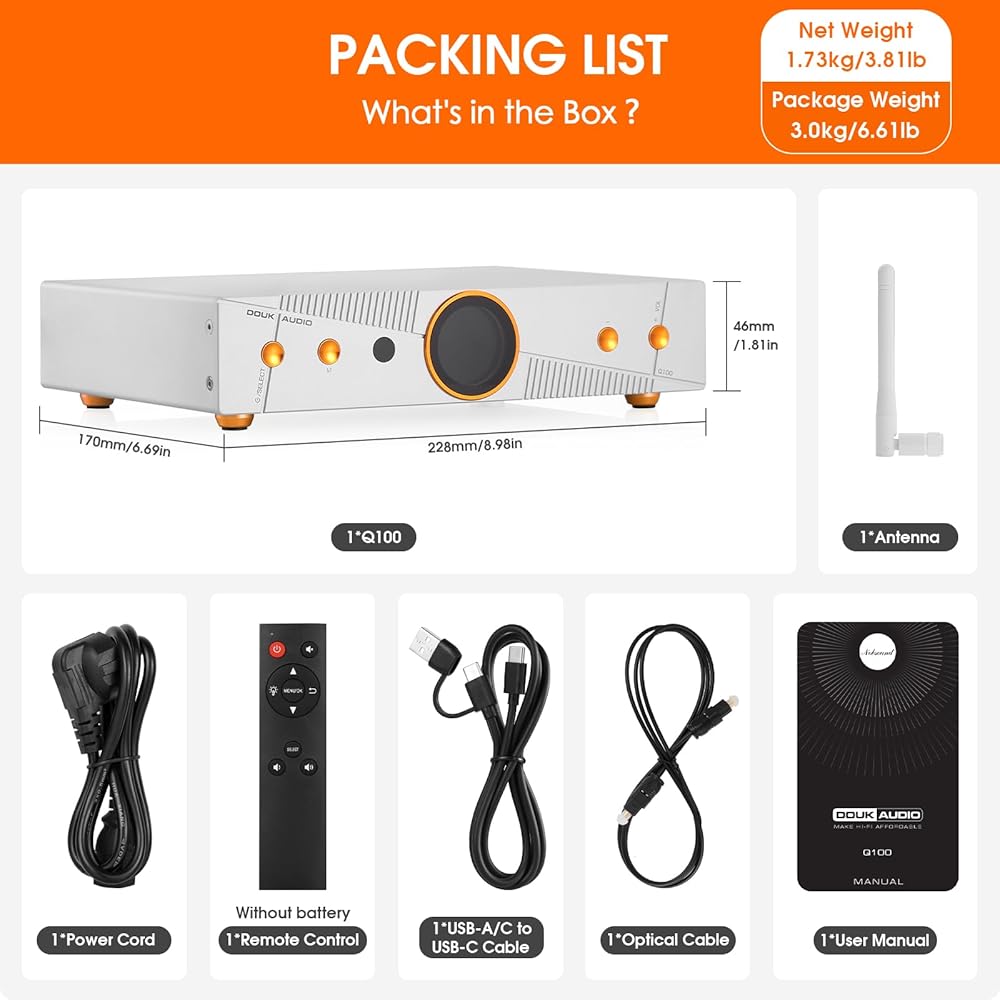

Packing list
* Q100 DAC ×1
* Bluetooth Antenna ×1
* Remote Control ×1
* Power Cord ×1
* USB-A/C to USB-C Cable ×1
* Optical Cable ×1
* User Manual ×1
