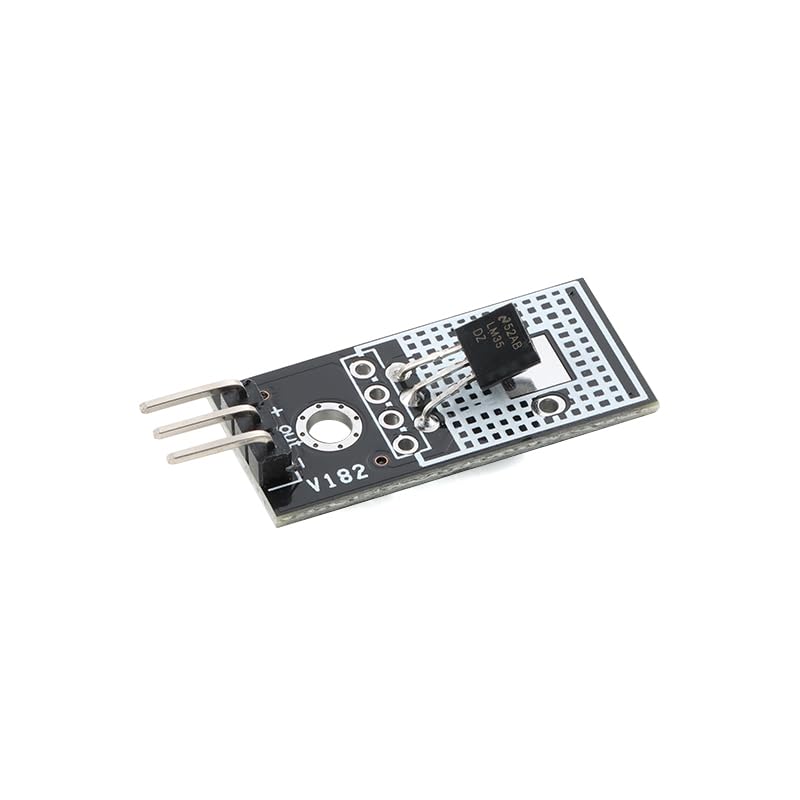

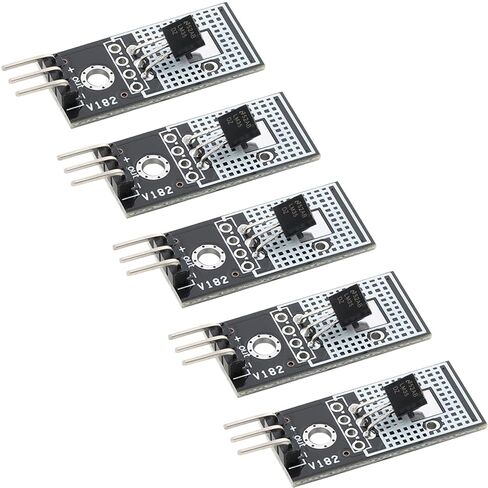

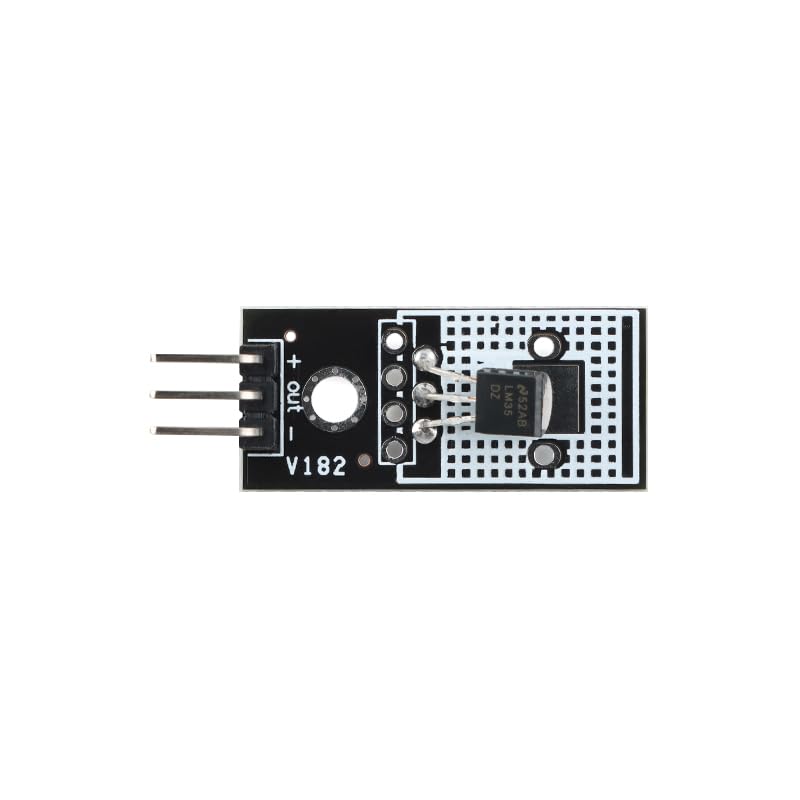

5Pcs LM35DZ High Voltage Analog Temperature Sensor Module for Arduino Smart Car Projects

SAR 53
– 1 +

Special Features

  • Precision Analog Temperature Sensing: The LM35DZ temperature sensor delivers linear analog output with ±0.5°C accuracy across a 0°C–100°C measurement range, providing dependable temperature data for microcontroller-based projects and control systems.
  • Broad Supply Voltage & Low Power Design: Supporting a wide 4V–30V DC input, this sensor integrates easily with Arduino, STM32, and other development boards. Its ultra-low operating current (<60µA) makes it ideal for battery-powered and energy-efficient applications.
  • Simple Integration, No Calibration Needed: Designed for hassle-free use, the LM35DZ requires no external calibration or signal conditioning. Connect the output directly to an ADC pin for instant temperature readings, perfect for prototyping, learning, and rapid development.
  • Stable Output with Minimal Thermal Drift: With low output impedance and extremely low self-heating, this sensor maintains accurate measurements during continuous operation, ensuring reliable performance in precision electronics and sensitive temperature monitoring environments.
  • Durable Design for Versatile Applications: Packaged in a standard TO-92 form factor, the LM35DZ fits easily on breadboards and PCBs and operates reliably over a wide temperature range, making it suitable for robotics, smart home systems, and industrial monitoring projects.

Description

Product Parameters
- Sensor Model: LM35DZ (Texas Instruments original chip)
- Operating Voltage: 4V-30V DC (wide voltage compatibility, recommended 5V)
- Output Signal: Analog voltage (linear scale factor: 10mV/°C)
- Temperature measurement range: 0°C ~ +100°C (full range coverage)
- Measurement accuracy: ± 0.5°C (typical 25°C)
- Quiescent current: - Non-linear error: ± 0.25°C (typical)
- Output impedance: 0.1 Ω (1mA load)

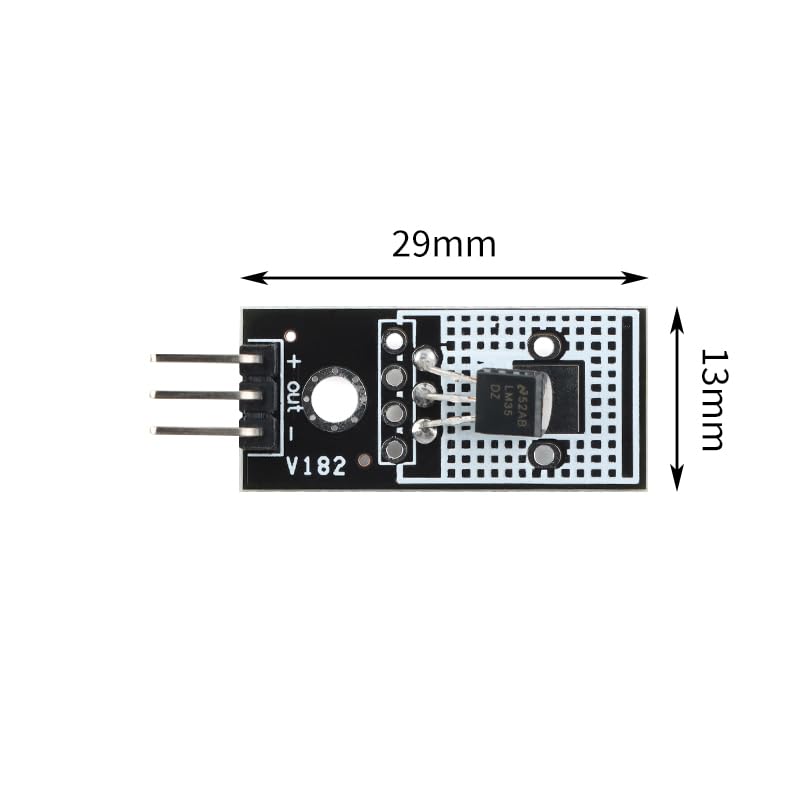

- Package Form: TO-92 In-line Package (Compatible with Breadboard/Electronic Building Blocks)
- Operating Temperature: -40°C ~ +110°C

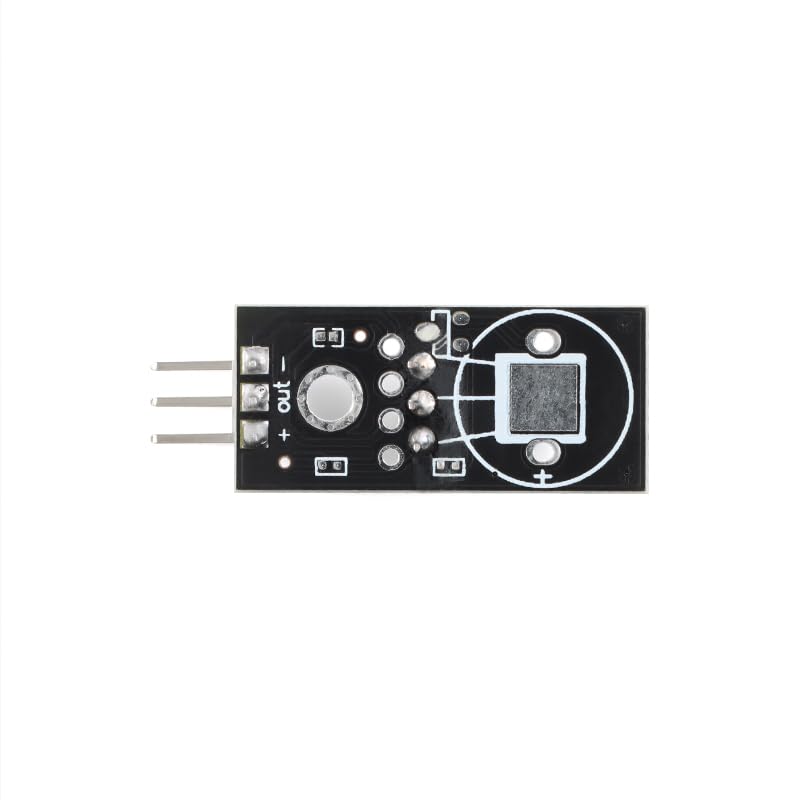

Product Pin Functions
- VCC: Power supply positive input. Connect to a 4V-30V DC regulated power supply (recommended 5V, requires parallel connection of a 0.1μF ceramic capacitor for decoupling).
- Vout: Analog signal output terminal. Connect to the microcontroller's ADC input pins. Output voltage range 0mV~1000mV corresponds to 0℃~100℃.
- GND: Power ground. Must be connected to system common ground and routed separately to minimize interference.
Interface Considerations:
- For long-distance transmission, shield the Vout line to prevent electromagnetic interference.
- If supply voltage exceeds 5V, series a 1kΩ resistor between Vout and the ADC to protect the microcontroller.
