1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.

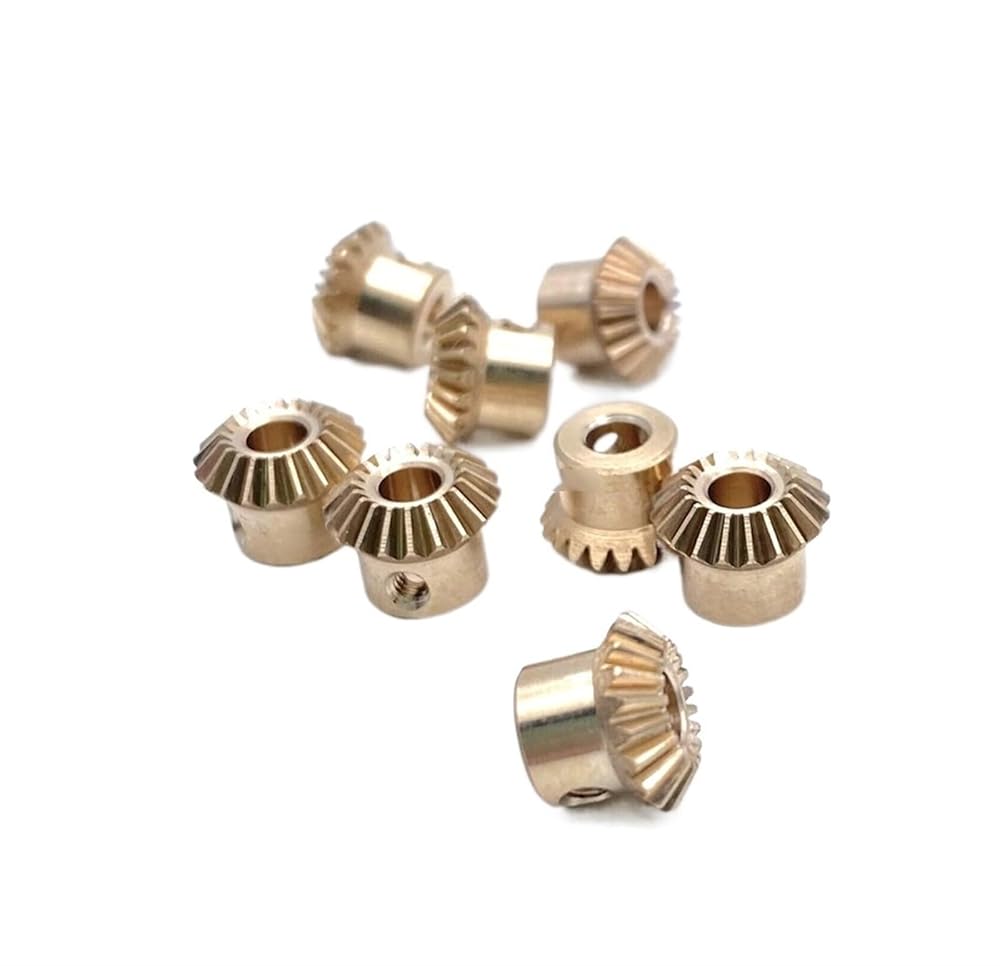

1:1 90°Angle Spur Gears
NOTE:Price for one gear
Number of teeth: 20 teeth
Hole diameter: 2/3mm
Screw: M2
Overall thickness: 6.5mm
Rated torque: 0.24N.m (root)
Weight: about 1.5g
Big end top diameter: 8.57mm
Small end top diameter: 5.09mm
Accuracy class: class 8
Processing method: gear cutting
Pressure angle: 20°
Material: S45C carbon structural steel/environmentally friendly easy-cut copper
Tooth shape: standard straight tooth
