1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.
Specification:

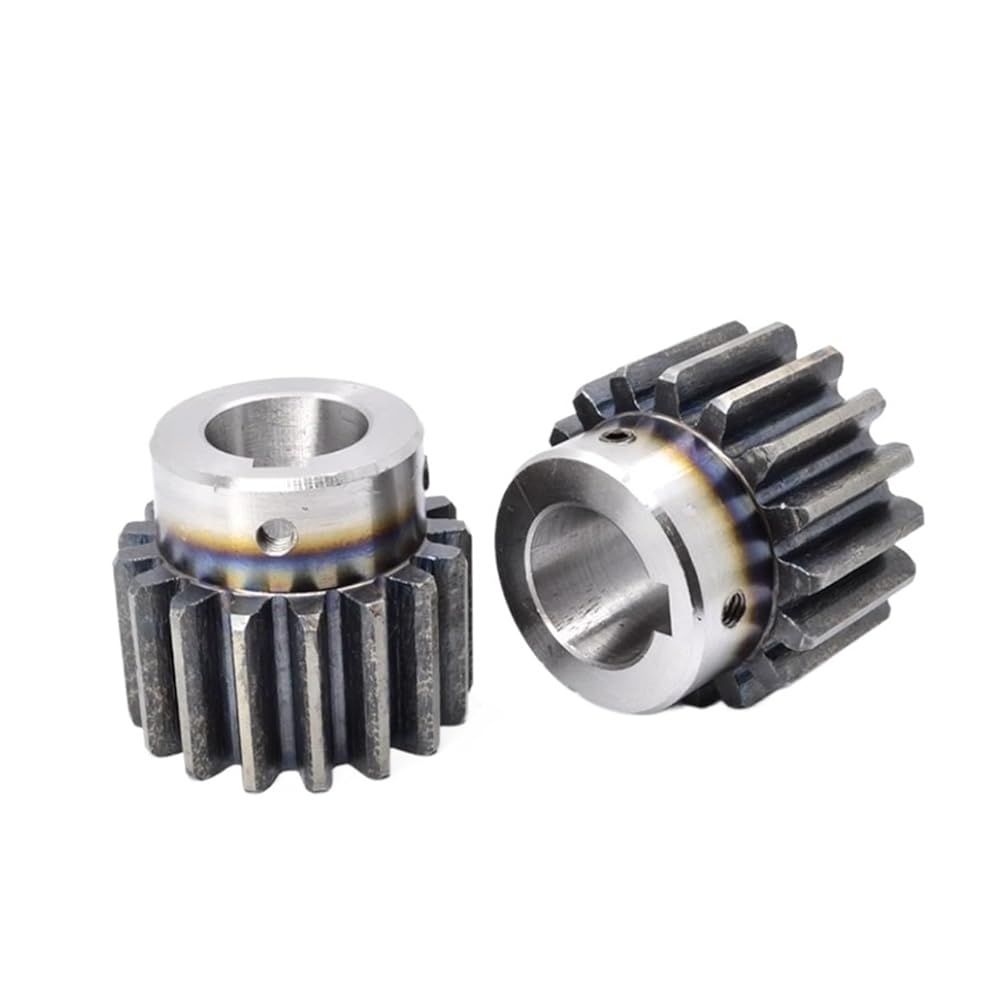

Name: 2.5M Spur Gear with Step
Material: 45# steel
Surface Treatment: High frequency quenching of teeth
Teeth Pitch: 7.85mm
Teeth: 25 Teeth
Keyway Bore:
16mm (keyway 5mm)
18mm (keyway 6mm)
20mm (keyway 6mm)
22mm (keyway 6mm)
24mm (keyway 8mm)
25mm (keyway 8mm)
28mm (keyway 8mm)
30mm (keyway 8mm)
32mm (keyway 10mm)
Shaft Hole: Machining completed
Tooth Surface Hardness: Hardened tooth surface
