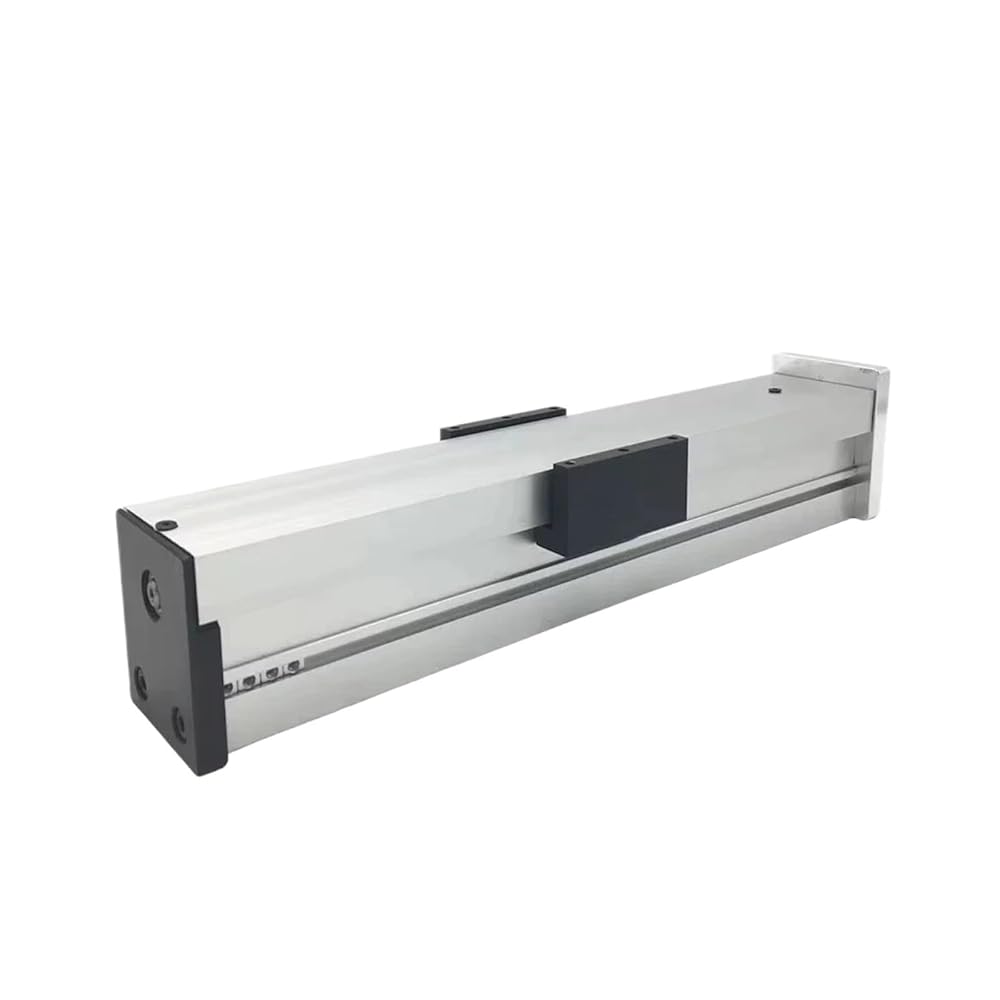

Linear Motion Guide Actuators
Specifications:
Model: QMF40
Effective stroke: 100mm-600mm optional
Total length of slide: effective stroke + 119mm
Ball screw model: SFU1605 (screw diameter 16mm, pitch 5mm, panel moves 5mm per screw rotation) / SFU1610
Guide rail type: 1*MGN12R
Slider type: 1*MGN12C
Horizontal load-bearing capacity: 40KG (maximum)
Vertical load-bearing capacity: 20KG (maximum)
Motor bracket: Nema17/Nema23 stepper motor
Module material: industrial aluminum profile
Module width: 56mm
Repeat positioning accuracy: 0.03mm-0.05mm
Ball screw material: bearing steel
Ball screw accuracy: C7
Maximum movement speed:
SFU1605: 250 mm/s
SFU1610: 500 mm/s
