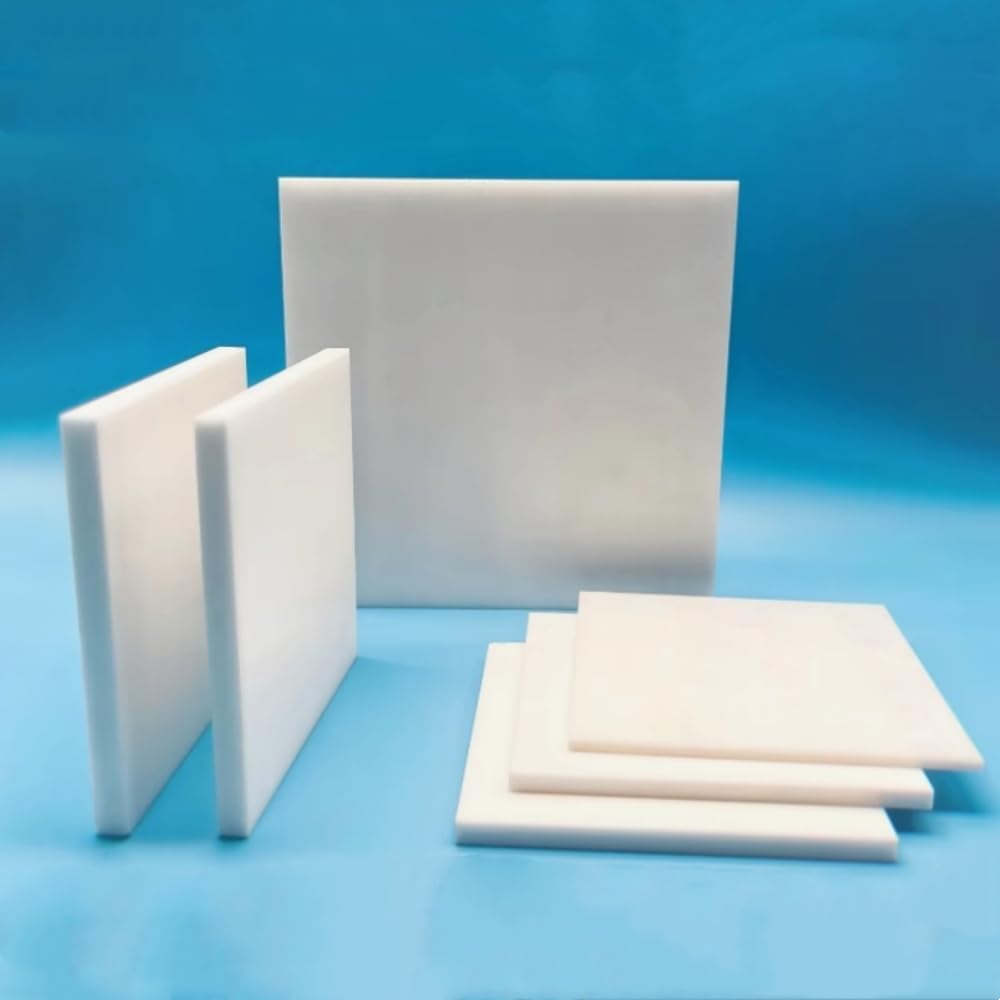

Zirconia Ceramic Square Sheet - 100x100mm Insulation Board,Wear-Resistant Substrate (1 Piece)(100x100x0.2mm) in Saudi Arabia

Zirconia Ceramic Square Sheet - 100x100mm Insulation Board,Wear-Resistant Substrate (1 Piece)(100x100x0.15mm)

SAR 346
Size100x100x0.15mm
– 1 +

Special Features

  • Exceptional wear resistance: Zirconia ceramics offer 15 times the wear resistance of alumina ceramics, making them ideal for demanding applications.
  • Superior hardness: With a Mohs hardness of approximately 8.5, this zirconia sheet is nearly as hard as , ensuring durability and longevity.
  • Unmatched strength: Featuring a bending strength of over 1200MPA, this zirconia substrate significantly outperforms tempered glass (552MPA), providing reliable support.
  • High thermal stability: Capable of withstanding temperatures up to 1600℃, this insulation board is perfect for high-temperature environments.
  • Excellent electrical insulation: With a volume resistivity greater than 10¹²Ω.cm, this zirconia sheet is ideal for electrical insulation applications.

Description

Physical Characteristics
Main ingredient: ZrO2≧94%
Density: 5.9g/cm³
Water absorption: 0
Sintering temperature: 1650℃
Material Characteristics
HV Hardness:1400
Flexural strength 4pt:>11000Mpa
Indentation strength:25000Kgf/cm²
Thermal Performance
Maximum operating temperature: 1600℃
Coef.ofexpansion:10 (X10-6/℃;0-1000℃)
Heat impact:350 △T℃
Pyroconductivity:3W/m.k
Electrical characteristic
Volume resistivity: >10¹²Ω.cm
Insulation breaking strength: 15KT/m
Dielectric constant 1MHZ(E):12.5
