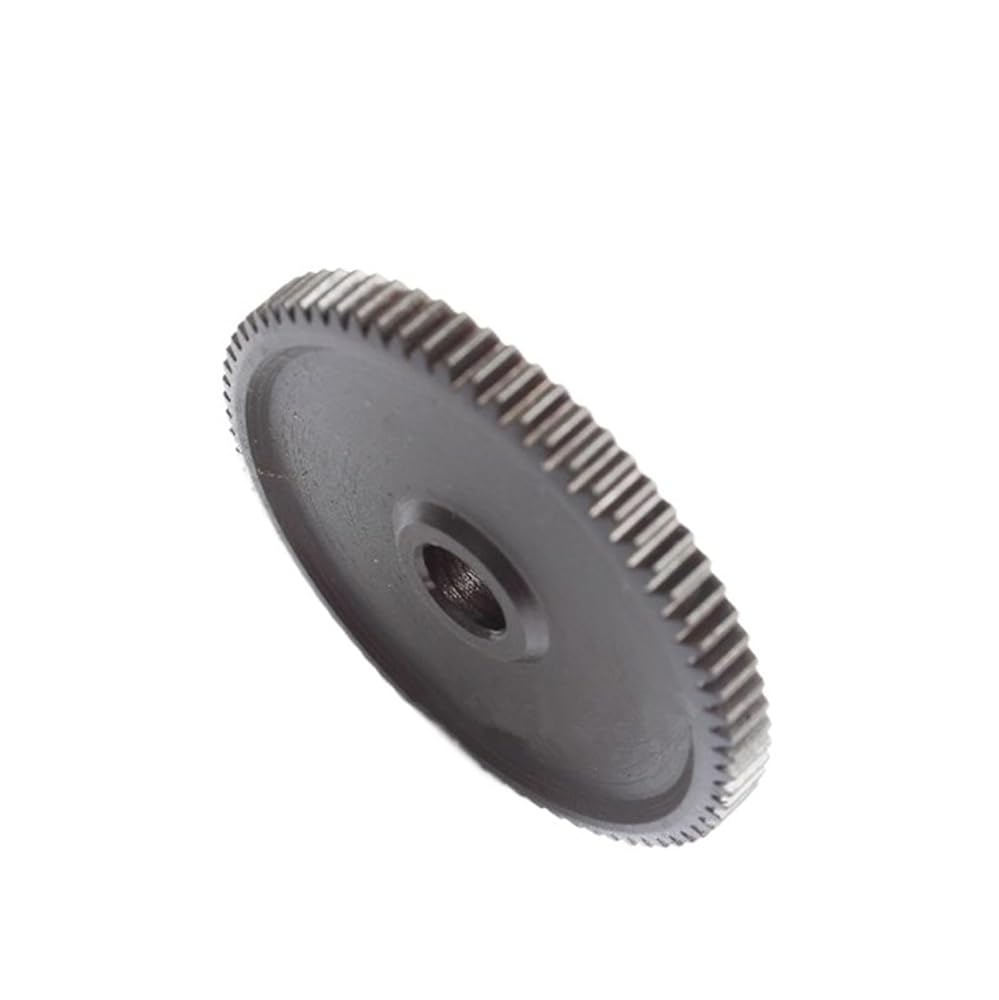

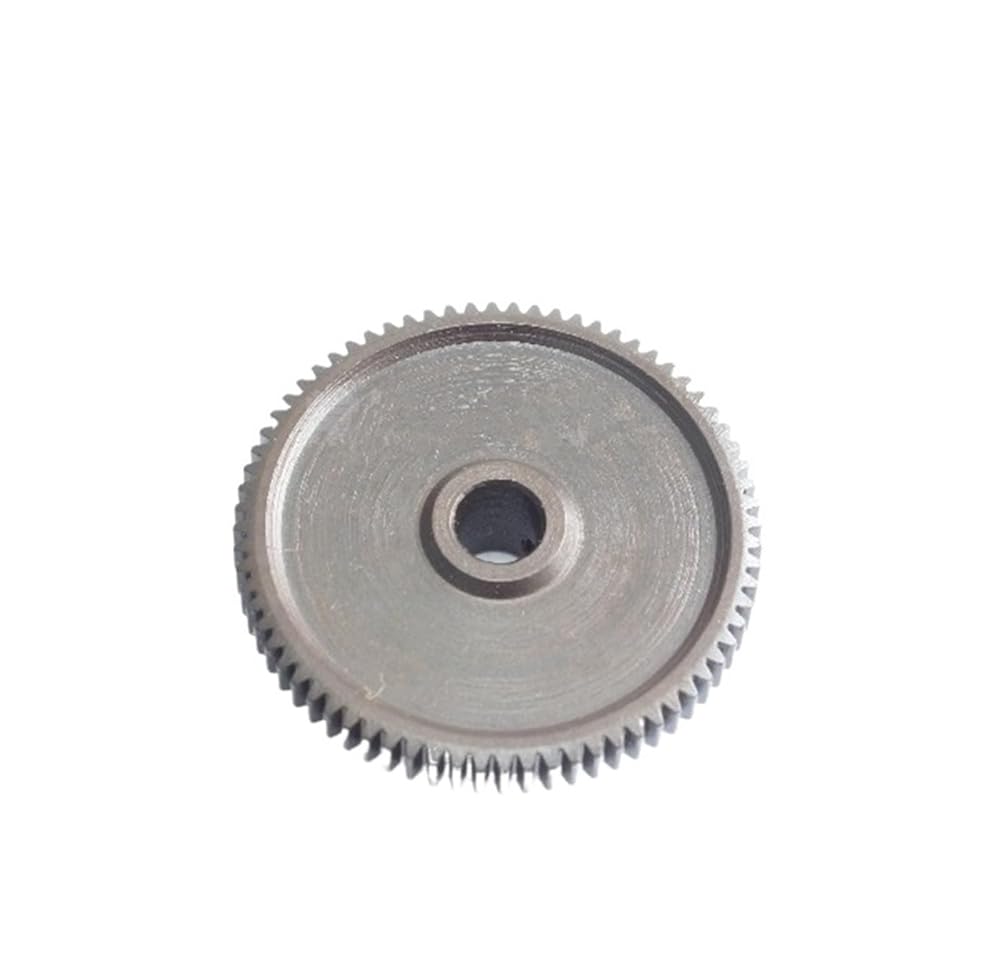

1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.
Outer diameter = modulus * (number of teeth + 2)
Modulus: 0.5 mode
Number of teeth: 72 teeth
Inner hole: 6 mm
Outer diameter: 37 mm
Tooth length: 3.9 mm
Overall length: 9.2 mm
Fixing screw hole: M3 fixing screw hole
Material: 45 steel
(Note: This gear is a hobbing process with an accuracy of 8 levels.)
The inner hole is finished with a tolerance of H7!
