Isolation
Heater
Uh-----------------6.3 volts
Current------------------1.6A
Highest Rated Highest Rated
Ua------------------------------ 800 800 V
Ug2-------------------------- 600 600 V
Ug1-------------------------- 200 -200 V
Pa-----------------------------42 35V
Page 2---------------------------- 8 6 W
Pa+Pg2-------------------- 46 40 W
Ik---------------------------- 230 230 mA
Uhk------------------------ 200 250 V
T Glass shell ------------------- 250 250
Ginsenosides
Cathode bias Pa+Pg2 35W------0.47M
Pa+Pg2>35W---------0.27M
Fixed bias voltage Pa+Pg235W-----------0.22M
Pa+Pg2>35W ----------0.10 M
capacitance
Pentode connection Triode connection
Xin--------------16 9.3 PF
Point guard-------------12 17 PF
Cg-a-------------1.2 7.9 PF
feature
Pentode connection
Ua----------------250V
Ug2--------------250V
Current----------------140 mA
Ig2 (approx.) ---- 3 mA
-Ug1 (approximately) - 15 V
Transconductance-------------12 mA/V
Li-----------------12 thousand
g1-g2--------8
Transistor connection
Ua.g2-------------250V
Ia+g2-------------143 mA
-Ug1(approx.)---15 V
Transconductance----------------12 mA/V
Day------------------670
------------------ 8

Channels: 1

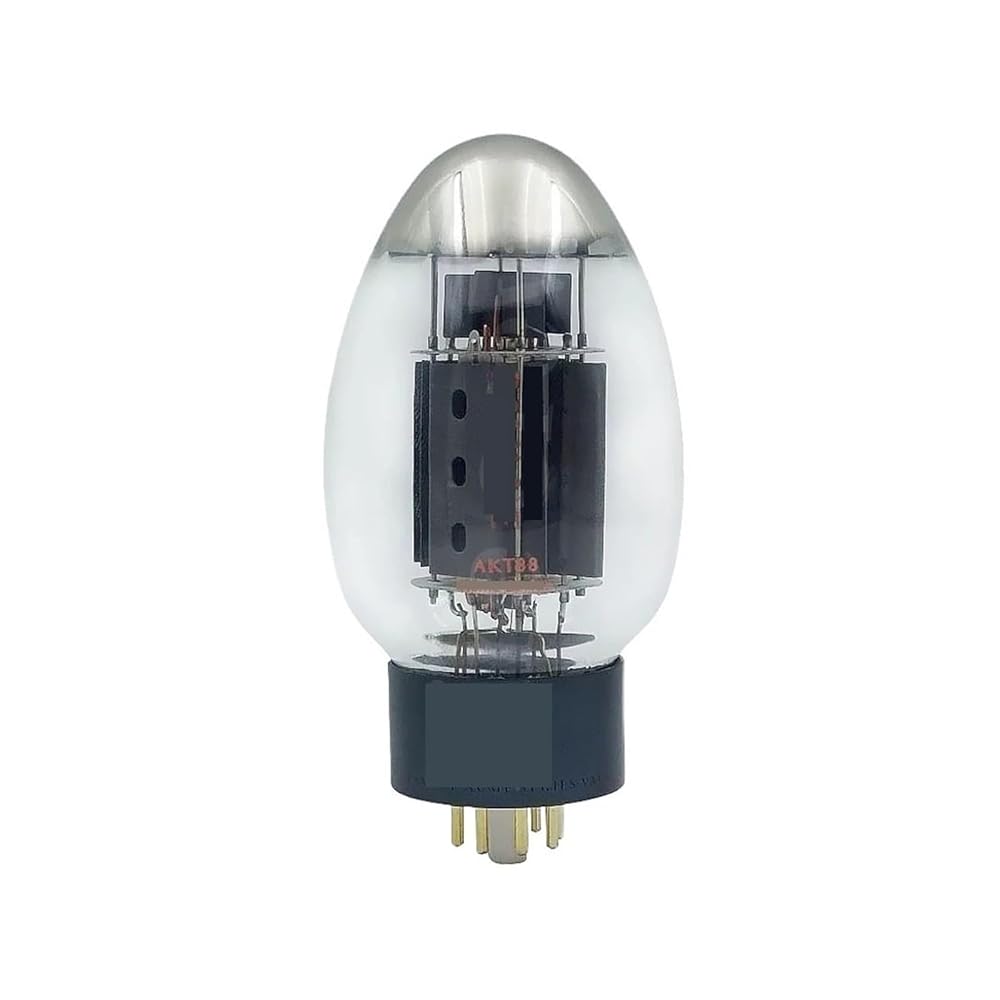

Model: E KT88
Maximum power per channel: No power supply
