Pulse Generators

Features:
Operating temperature range:
-55 to +155°C (built-in type)
-30 to +100°C (out-of-shaft, TS2028 and TS2054)
Can work in harsh environments:
Vibration: 196m/s2 (100G) at 10-500Hz
Impact resistance: 981 m/s2(100G) for 11ms
Humidity: Minimum relative humidity of 90% at 60°C
High reliability and long life due to no brush
The maximum operating speed is:
100 to 500s-1 (6000 to 30000 min-1) (built-in type)
100s-1(6000min-1)/(Out shaft type)
No electronic and mechanical noise
Installation requirements:
Shaft deviation
Mounting Deviation Between Motor Shaft and Axle Less Than 0.050mm (TIR)
Concentric
Resolver center and motor shaft kept within 0.050mm (TIR)
Vertical
The perpendicularity between the resolver and the motor is kept within 0.050mm (TIR)
Axis
Built-in type, stator and rotor copes with axial degrees within MTG.DIM tolerances
==========
Material : ALLOY
Item Type : SWITCHES

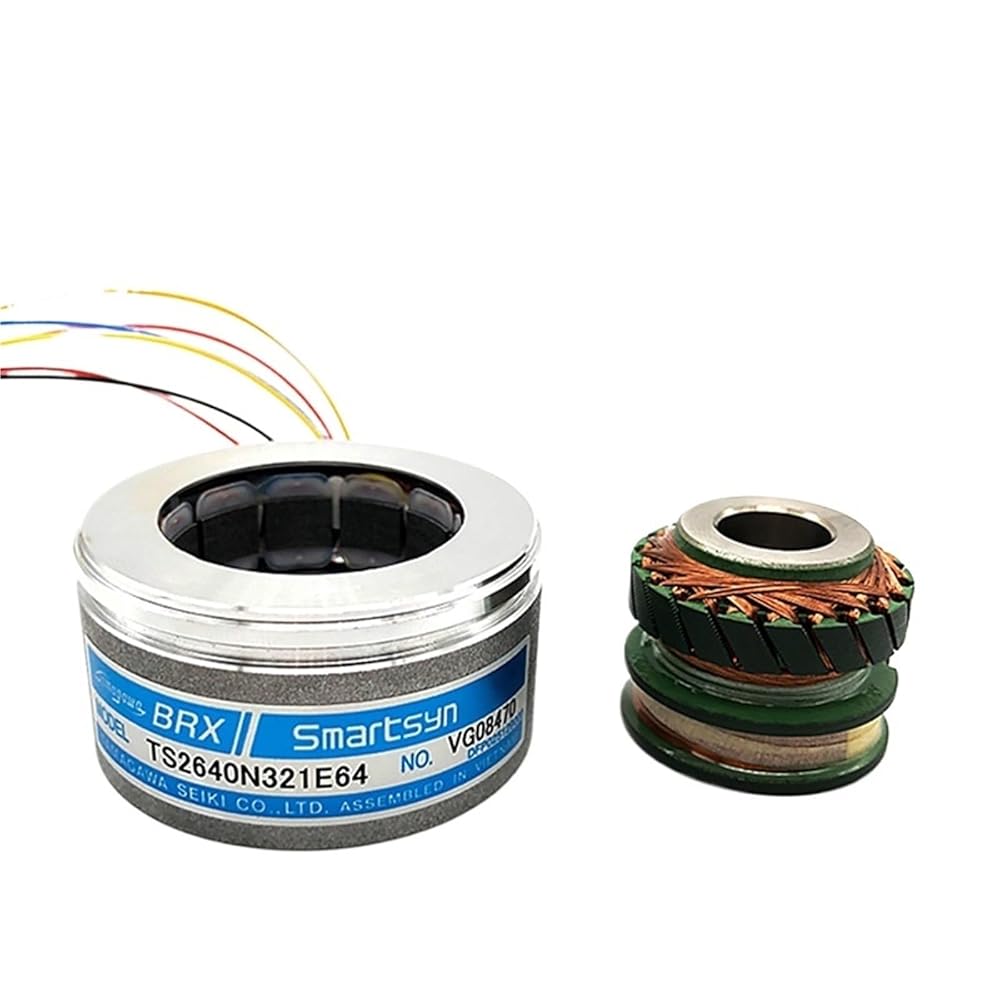

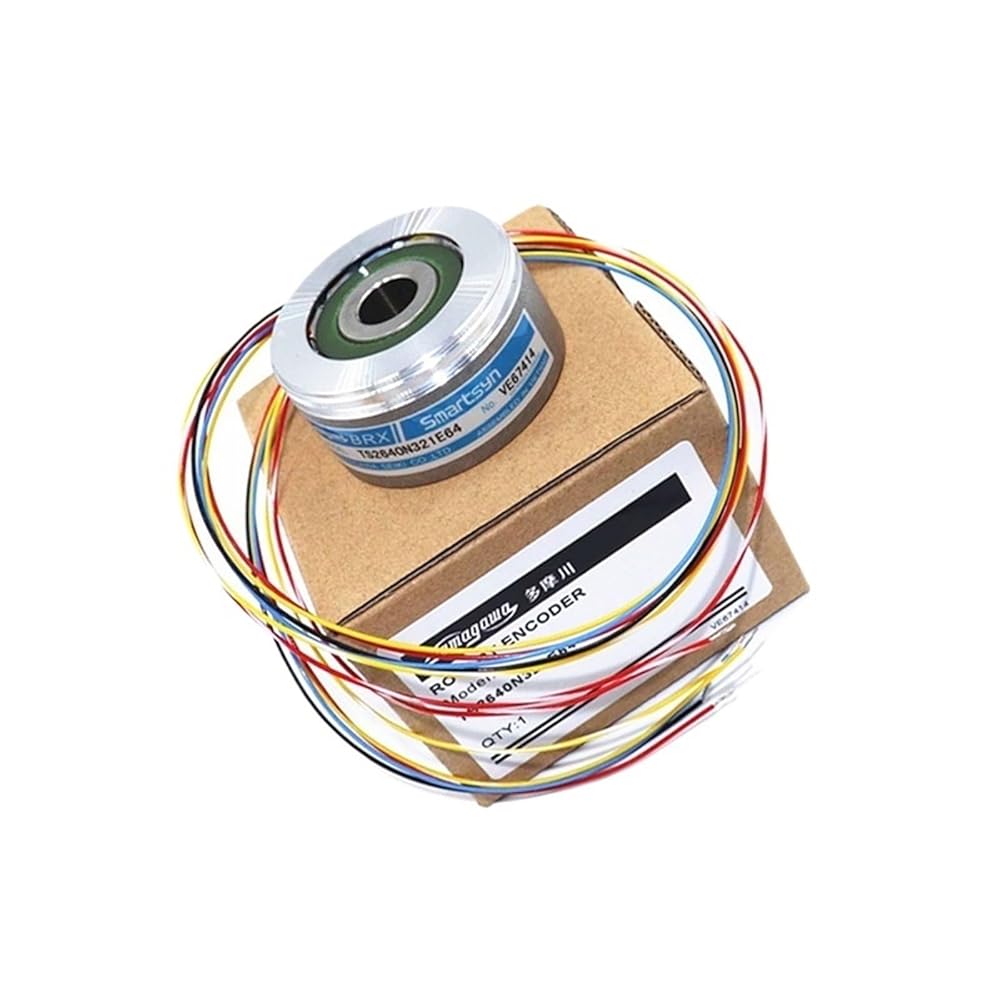

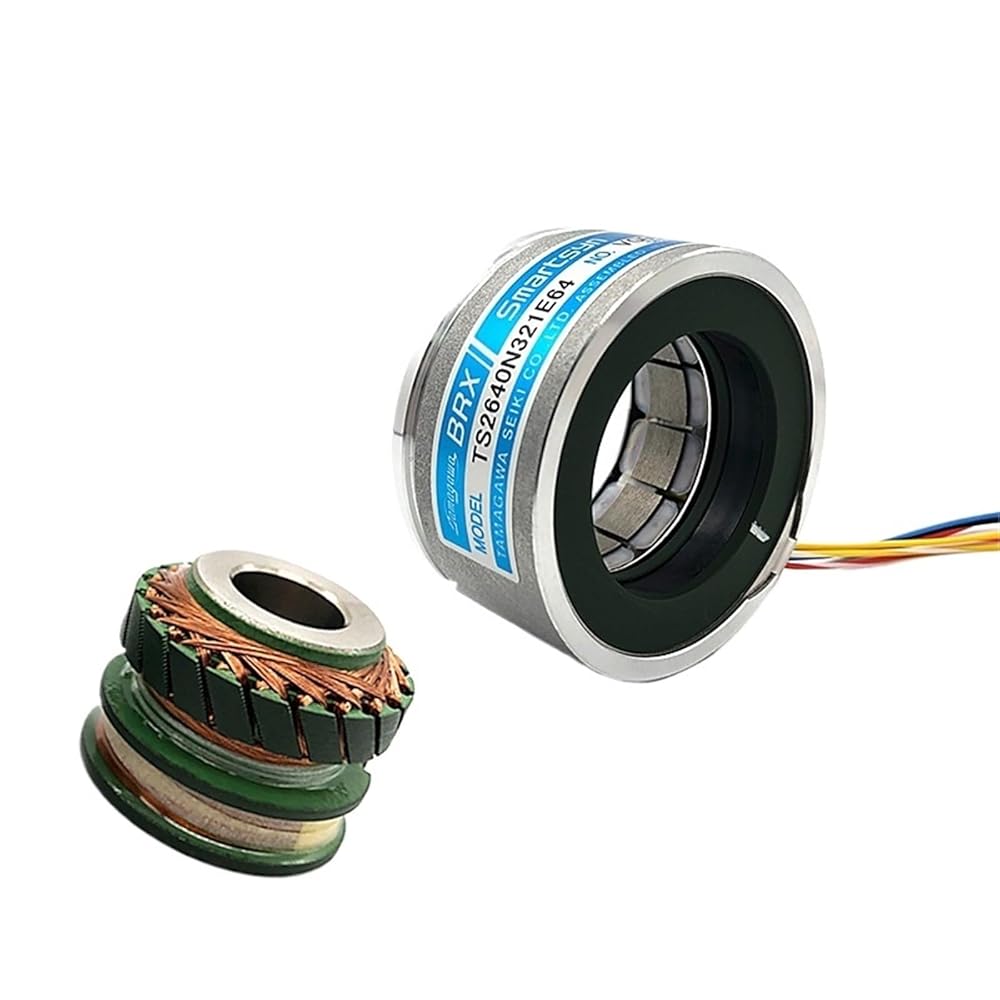

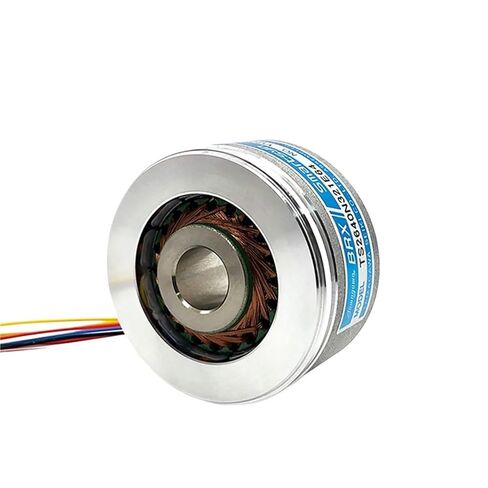

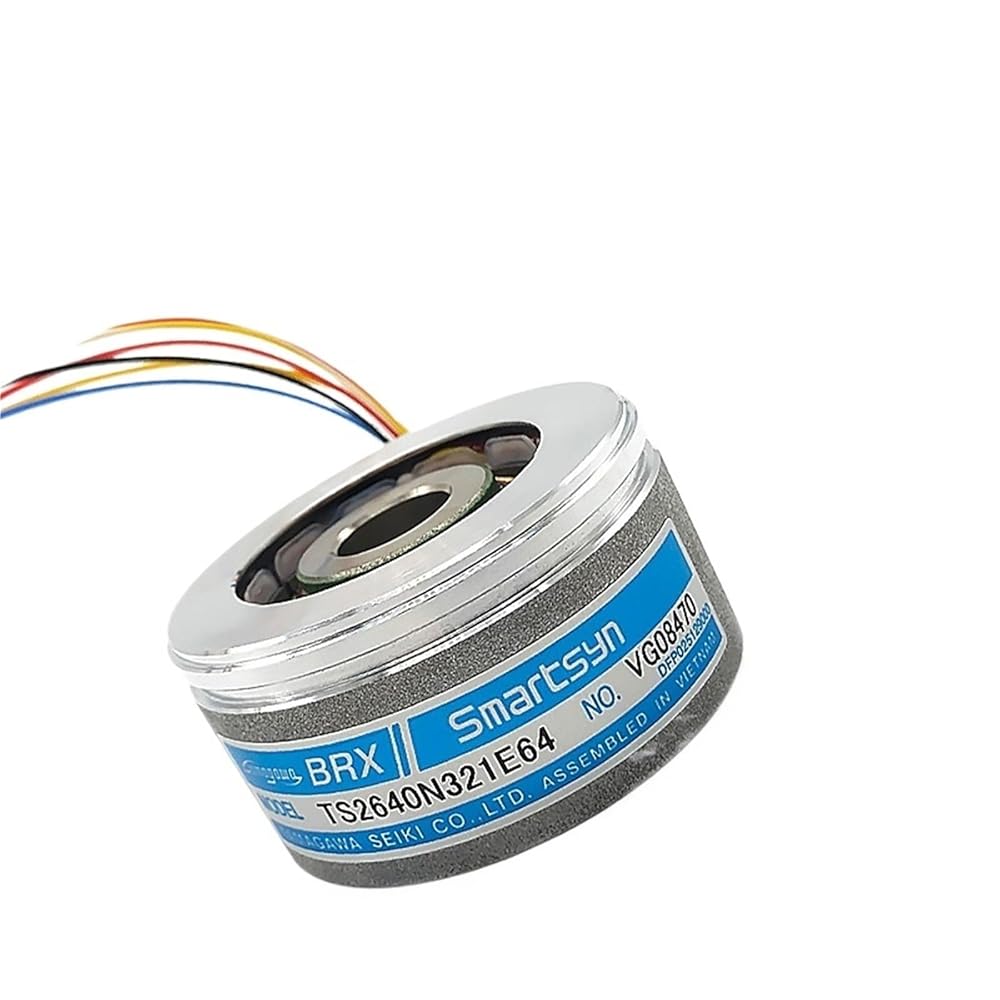

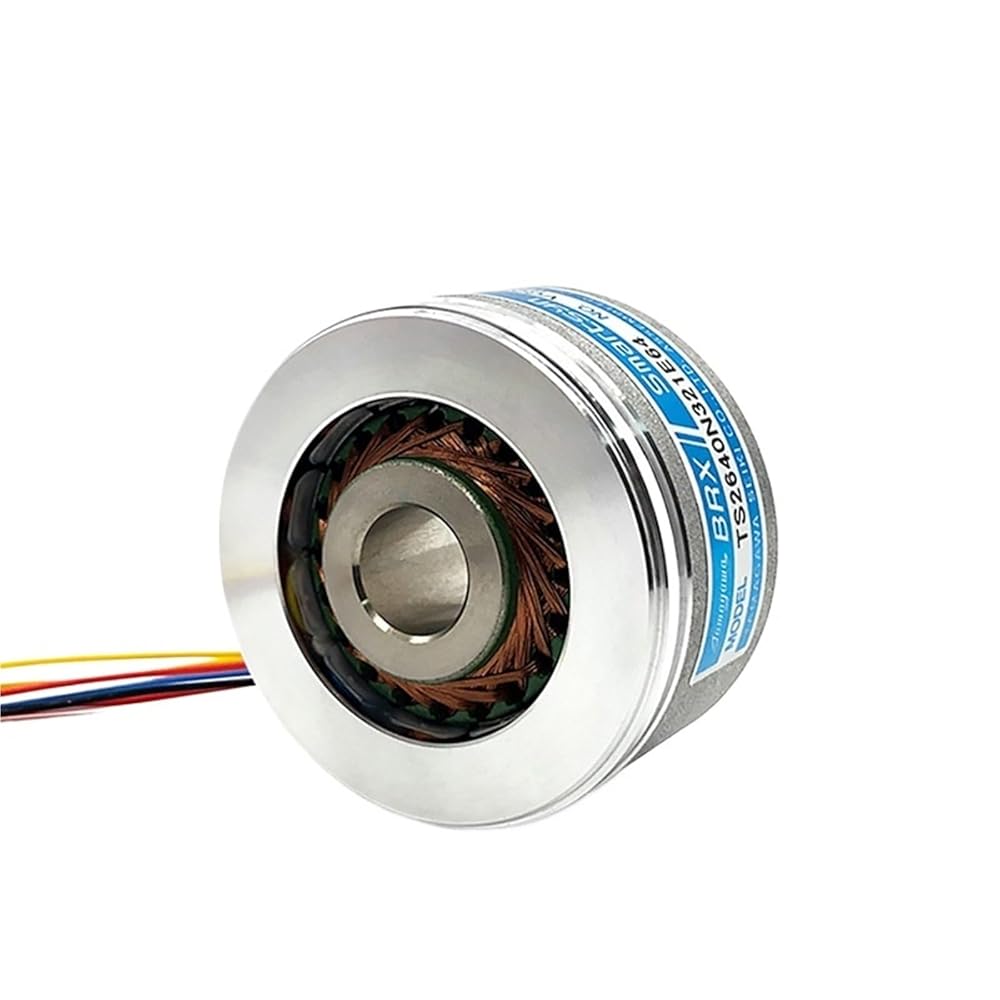

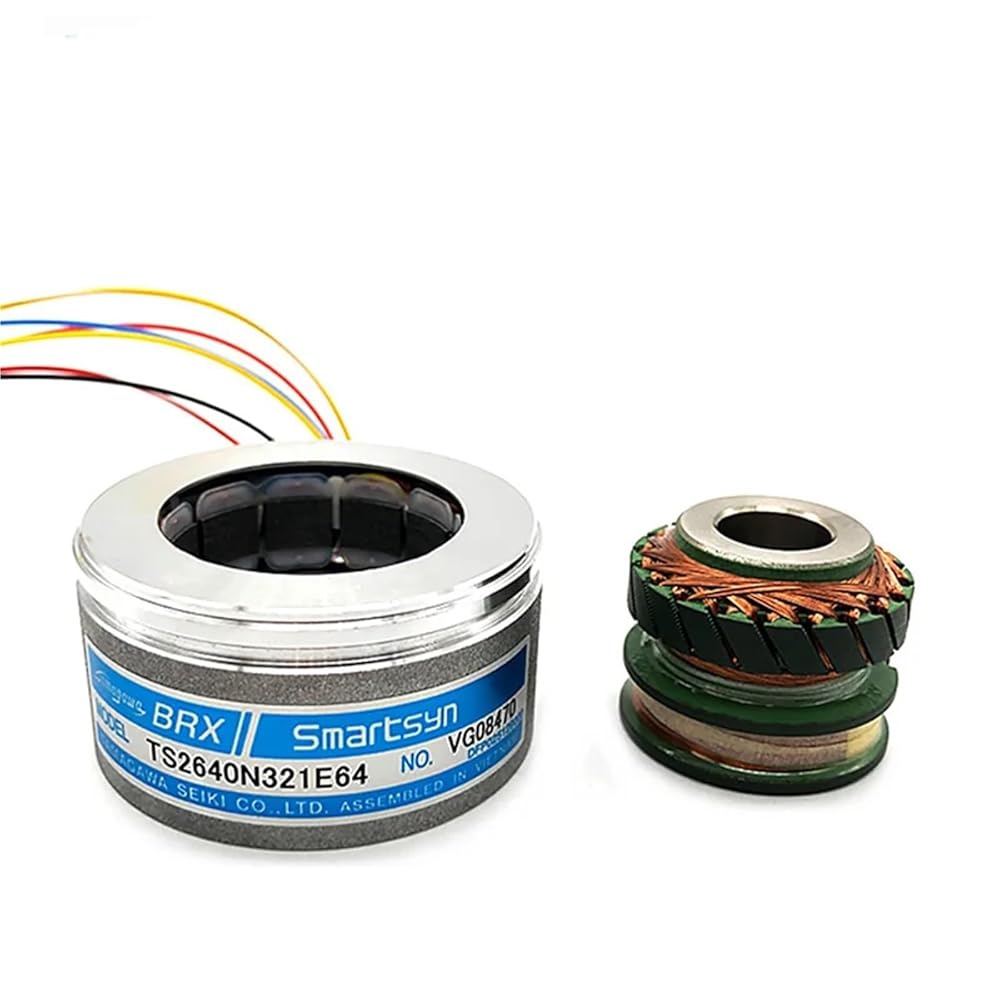

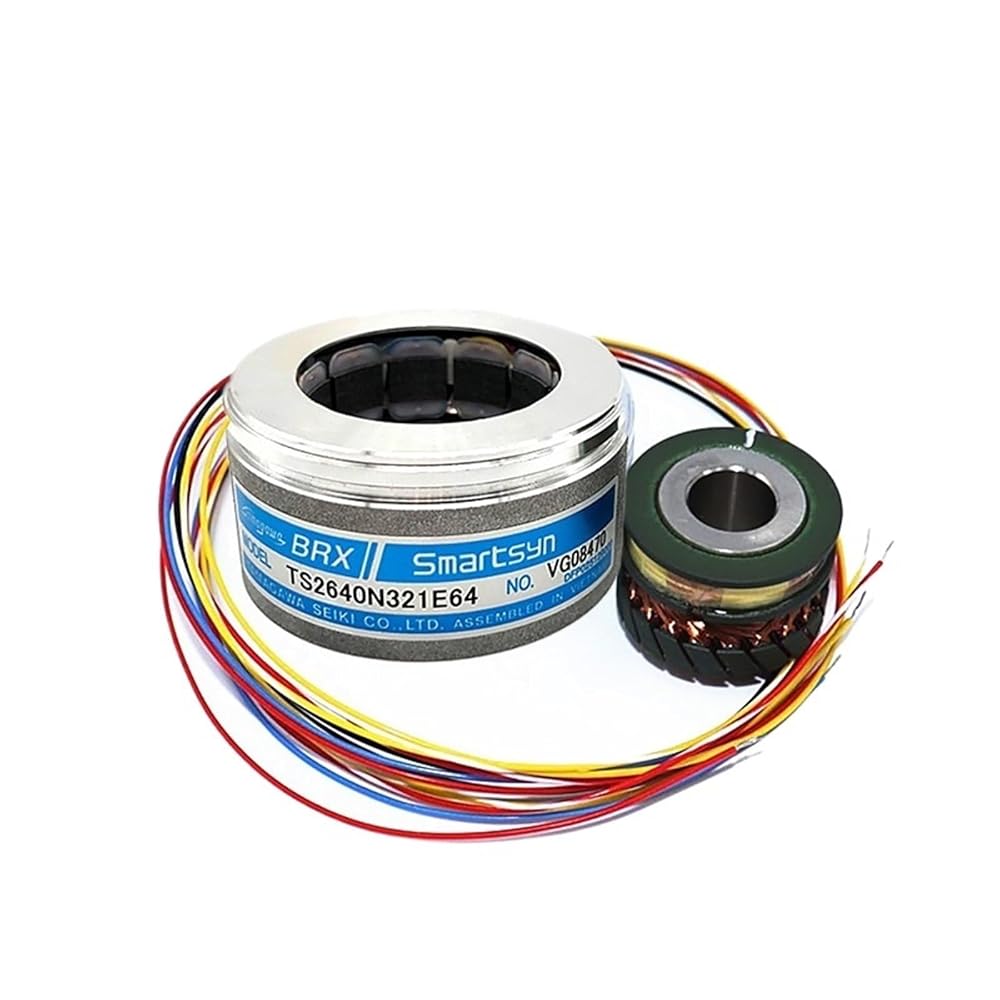

Model Number : TS2640N321E64
